grade 5 titanium alloy sheet
2. Size: Thickness 4mm–80 mm, 950≤ Width ≤ 2500 mm, Length ≤ 10000 mm, or customized
3. Standard: ASTM B265, ASTM F67, AMS 4911, ASME SB265
4.Type: Hot Rolled
5. Processing Method: Rolling, Annealing, Leveling,Pickling,Surface Finishing
6. State: Annealed
7. Surface Treatment:Polished, Machined, Acid Pickled
- Product Description

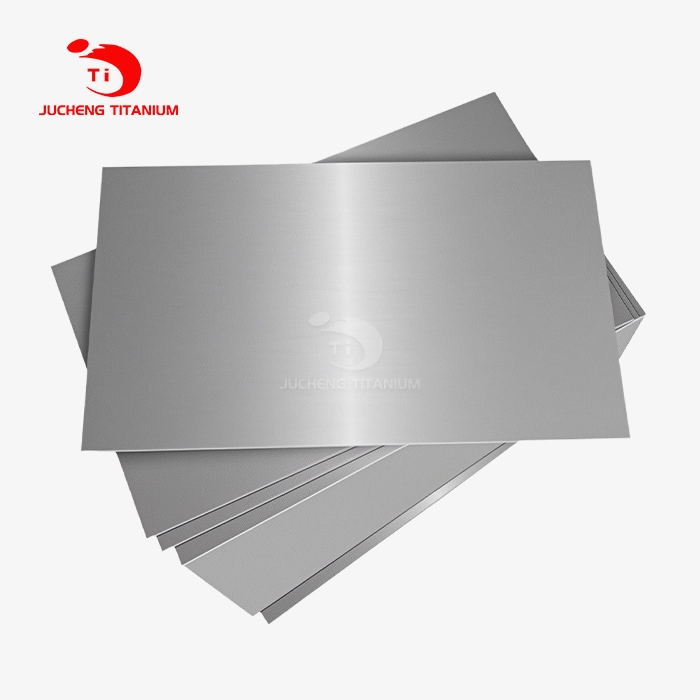

Grade 5 Titanium Alloy Sheet - Premium Quality from Baoji Jucheng Titanium
Are you searching for top-notch grade 5 titanium alloy sheet for your tough tasks? You have the right team. Baoji Jucheng Titanium Industry Co., Ltd makes high-quality titanium sheets that work great in the aerospace, medical, marine, and industry fields. That's what we do. With over twenty years of experience and state-of-the-art production facilities, we guarantee that the materials you receive will beat your standards in terms of strength, corrosion resistance, and reliability.
Product Overview
Our titanium Grade 5 (Ti-6Al-4V) sheets have the best mix of strength, lightness, and resistance to damage from moisture and air. Because it is made of 6% aluminum and 4% vanadium in an alpha-beta alloy form, it is the most popular titanium alloy in the world. We use cutting-edge hot rolling techniques to make these sheets. This guarantees uniform quality and excellent material properties for your important uses.
 |  |  |  |
Company Background
The Baoji Jucheng Titanium Industry Co., Ltd. has been a dependable frontrunner in the titanium production industry since 2004. It is located in China's famous Titanium Valley, Baoji. When we listed on the National Equities Exchange and Quotations in 2017, we became the first private titanium firm in Shaanxi Province.
Our achievements include:
- Registered capital of 50 million RMB
- 45 patents (4 invention patents, 41 utility model patents)
- National High-Tech Enterprise certification
- Over 30% annual sales growth for three consecutive years
- 70% market share in hydrometallurgy titanium products
 |  |  |  |
Key Features & Advantages
- Excellent Ratio of Strength to Weight: 40% Less Weight Compared to Steel While Maintaining Equal Strength
- High-Quality Corrosion Superior performance in challenging conditions is a hallmark of resistance.
- Biocompatibility: Hypoallergenic and suitable for use in food and medicine
- Consistent performance from -253°C to 600°C thanks to its temperature stability.
- Weldability: Simple to form and connect using conventional methods
- Fatigue Resistance: Outstanding functionality when subjected to repeated loading cycles
Technical Specifications
| Parameter | Specification |
|---|---|
| Grade | Gr5 (Ti-6Al-4V) |
| Thickness | 4mm - 80mm |
| Width | 950mm - 2500mm |
| Length | Up to 10,000mm |
| Processing Type | Hot Rolled |
| State | Annealed |
| Standards | ASTM B265, ASTM F67, AMS 4911, ASME SB265 |
Performance Characteristics
| Property | Value |
|---|---|
| Tensile Strength | 895 MPa (min) |
| Yield Strength | 828 MPa (min) |
| Elongation | 10% (min) |
| Density | 4.43 g/cm³ |
| Melting Point | 1604-1660°C |
| Thermal Conductivity | 6.7 W/m·K |
Material Grades & Standards
We offer comprehensive titanium sheet solutions across multiple grades:
- Gr1 & Gr2: Commercial pure titanium for maximum corrosion resistance
- Gr4: Enhanced strength commercial pure grade
- Gr5: High-strength aerospace grade (Ti-6Al-4V)
- Gr7 & Gr12: Enhanced corrosion resistance with palladium addition
- Gr9: Lower aluminum content for improved formability
All materials comply with international standards including ASTM, AMS, and ASME specifications.
Manufacturing Process
Our grade 5 titanium alloy sheet undergoes rigorous manufacturing steps:
- Choosing Raw Materials: High-quality titanium sponge and elements for the metal
- Vacuum Arc Remelting: More than one melt makes sure that the makeup is the same all the way through.
- Hot Rolling: Exact temperature control for the best structures
- Annealing: A way to relieve stress and make properties better
- Leveling: Makes sure that the surface is even within a range of acceptable values.
- Outside Finishing: grinding, polishing, or pickling as needed
 |  |  |
 |  |  |
Quality Assurance & Testing
Quality is our foundation. Every sheet undergoes comprehensive testing:
- ICP-OES proof of chemical composition
- Tensile, hardness, and impact tests are all ways to test mechanical properties.
- Inspection with Ultrasound: Finding defects inside
- Surface Quality Check Checking the size and appearance
- Certification: Mill test records that can be fully traced
 |  |  |  |
Applications
Our titanium sheets serve diverse industries:
- Aerospace: aircraft frames, parts of the engine, landing gear
- Medical: Surgical implants, limbs, and other medical items
- Marine: The hulls of ships, the props for propellers, and bases that are built offshore
- Chemical Processing: tanks for reactions, heat exchanges, and systems of pipes
- Automotive: performance exhaust systems and race parts
- Architecture: roofs, cladding, and artistic features
 |  |  |
 |  |  |
OEM/ODM Service
We provide comprehensive customization services:
- Custom Dimensions: Tailored to your exact specifications
- Special Processing: Unique surface treatments and finishing
- Technical Support: Engineering consultation and application guidance
- Rapid Prototyping: Quick turnaround for development projects
- Volume Production: Scalable manufacturing for large orders
Why Choose Us?
- After twenty years of work, I have proven skill in titanium production.
- Advanced Facilities: a manufacturing park worth 900 million RMB
- Research Partnerships: Working together with Northwest University and Tsinghua University
- Quality Tests: National High-Tech Enterprise status
- Market Leadership: Having the most power in a lot of different metal areas
- Customer Focus: More than 500 types of products for customers around the world
Corporate Vision
We see ourselves as the world's top source of titanium products. Our Titanium Valley site is 183 acres and will combine R&D, processing, and testing. We want to make 1.6 billion RMB a year by 2029 and build a world marketing network that helps with "Made in China 2025."
FAQ
Q: What's the minimum order quantity for the product?
A: We accommodate orders from single sheets to large production runs, with flexible MOQ based on specifications.
Q: Can you provide custom dimensions outside standard ranges?
A: Yes, our OEM services include custom sizing and special processing requirements.
Q: What certifications do your products carry?
A: All products include mill test certificates with full chemical and mechanical property documentation.
Q: How do you ensure consistent quality across batches?
A: We maintain strict process controls and conduct comprehensive testing at every production stage.
Q: What's the typical lead time for standard products?
A: Standard products ship within 2-3 weeks, while custom orders may require 4-6 weeks depending on specifications.
Contact Us
Ready to experience premium grade 5 titanium alloy sheet quality? Our technical team is here to help you select the perfect solution for your application. Contact us today for detailed quotations, technical specifications, or engineering support.
Email: s4@juchengti.com
Trust Baoji Jucheng Titanium Industry for your titanium needs. With our commitment to quality, innovation, and customer satisfaction, we're your reliable partner for high-performance titanium solutions.
