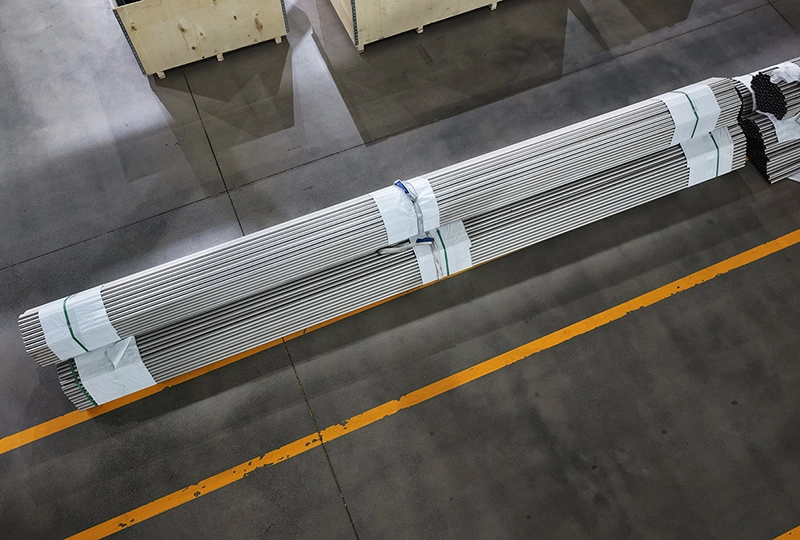

titanium grade 5 seamless tube
2. Size: Outer Diameter OD3–OD219 mm, Wall Thickness 0.5–20 mm, or customized
3. Standard:ASTM B337, ASTM B338, ASTM B861, AMS 4942, ASME SB338
4. Type: Seamless Tube
5. Processing Method: Extrusion, Piercing, Cold Rolling, Annealing, Pickling, Straightening
6. State:Annealed / Pickled / Bright
7. Surface Treatment: Polished, Machined, Acid Pickled
- Product Description
Product Overview
Looking for high-performance titanium tubing that delivers exceptional strength and corrosion resistance? Our titanium grade 5 seamless tube represents the gold standard in titanium alloy tubing solutions. Grade 5 titanium (Ti-6Al-4V) offers the perfect balance of strength, durability, and workability for your most demanding applications. With over 20 years of manufacturing expertise, we provide premium seamless tubes that meet the strictest industry requirements while maintaining competitive pricing.
 |  |  |  |
Company Background
Baoji Jucheng Titanium Industry Co., Ltd stands as a pioneer in China's titanium fabricating division since 2004. Found in Baoji - China's eminent Titanium Valley - we got to be the to begin with private titanium undertaking in Shaanxi Territory to list on the National Values Trade and Citations in 2017.
Our accomplishments include:
- 50 million RMB enlisted capital
- 45 licenses (4 development + 41 utility show patents)
- National High-Tech Undertaking certification
- National-level specialized "small mammoth" endeavor status
- 30%+ yearly income development for three continuous years
 |  |  |  |
Key Features & Advantages
Our consistent titanium tubes offer predominant execution characteristics that make them perfect for basic applications:
- Exceptional Strength-to-Weight Proportion: 40% lighter than steel with comparable strength
- Outstanding Erosion Resistance: Prevalent execution in cruel chemical environments
- Seamless Development: No weld creases guarantee uniform quality throughout
- Precise Resistances: Tight dimensional control for basic applications
- Biocompatibility: Secure for therapeutic and food-grade applications
- Temperature Resistance: Keeps up properties from cryogenic to raised temperatures
Technical Specifications
| Parameter | Specification |
|---|---|
| Grade | Gr5 (Ti-6Al-4V) |
| Outer Diameter | 3-219 mm |
| Wall Thickness | 0.5-20 mm |
| Length | Up to 6000 mm or customized |
| Standards | ASTM B337, ASTM B338, ASTM B861, AMS 4942, ASME SB338 |
| Type | Seamless Tube |
| Surface Finish | Annealed, Pickled, Bright |
| Tolerance | ±0.05mm (customizable) |
Performance Characteristics
| Property | Value | Test Method |
|---|---|---|
| Tensile Strength | ≥895 MPa | ASTM E8 |
| Yield Strength | ≥828 MPa | ASTM E8 |
| Elongation | ≥10% | ASTM E8 |
| Density | 4.43 g/cm³ | ASTM B348 |
| Elastic Modulus | 114 GPa | ASTM E111 |
| Melting Point | 1660°C | - |
Material Grades & Standards
We manufacture tubes according to international standards ensuring global compatibility:
- ASTM Standards: B337, B338, B861 for industrial applications
- AMS Standards: 4942 for aerospace applications
- ASME Standards: SB338 for pressure vessel applications
- Custom Standards: Available upon request
Our titanium grade 5 seamless tube meets all major international specifications for chemical composition and mechanical properties.
Manufacturing Process
Our advanced manufacturing process ensures consistent quality:
- Raw Material Selection: Premium grade titanium ingots
- Extrusion: Seamless tube formation at controlled temperatures
- Piercing: Precision hole creation for tube geometry
- Cold Rolling: Dimensional accuracy and surface finish
- Annealing: Stress relief and property optimization
- Pickling: Surface cleaning and passivation
- Straightening: Final dimensional control
- Inspection: Comprehensive quality verification
 |  |  |
 |  |  |
Quality Assurance & Testing
Every tube undergoes rigorous testing to ensure superior quality:
- Chemical Composition Analysis: Spectrometer verification
- Mechanical Property Testing: Tensile and hardness testing
- Dimensional Inspection: Precision measurement equipment
- Surface Quality Check: Visual and NDT inspection
- Hydrostatic Testing: Pressure resistance verification
- Ultrasonic Testing: Internal defect detection
 |  |  |  |
Applications
Our Review 5 consistent tubes serve assorted industries:
- Aerospace: Air ship pressure driven frameworks, auxiliary components
- Medical: Surgical rebellious, inserts, prosthetics
- Chemical Preparing: Warm exchangers, reactors, channeling systems
- Marine: Seawater cooling frameworks, seaward equipment
- Automotive: High-performance deplete frameworks, dashing components
- Oil & Gas: Downhole tubing, subsea equipment
 |  |  |
 |  |  |
OEM/ODM Service
We give comprehensive customization services:
- Custom Measurements: Custom fitted to your specifications
- Special Grades: Elective titanium combinations available
- Surface Medicines: Cleaning, coating, machining
- Secondary Operations: Bowing, welding, assembly
- Packaging Arrangements: Customer-specific bundling requirements
Why Choose Us?
- 20+ A long time Encounter: Demonstrated ability in titanium manufacturing
- Advanced Offices: State-of-the-art generation equipment
- Quality Certifications: National High-Tech Undertaking status
- Technical Back: Building help for ideal solutions
- Competitive Estimating: Coordinate producer estimating advantages
- Fast Conveyance: Proficient generation and logistics
Corporate Vision
We imagine getting to be a worldwide pioneer in titanium fabricating through ceaseless development and quality fabulousness. Our commitment to "survival by quality, advancement by innovation, and advertise by notoriety" drives everything we do. We're building an worldwide titanium mechanical base that coordinating R&D, preparing, and testing capabilities.
FAQ
Q: What makes Review 5 titanium special?
A: Review 5 (Ti-6Al-4V) offers the best combination of quality, erosion resistance, and workability among titanium alloys.
Q: Can you give custom dimensions?
A: Yes, we offer total customization for measurements, lengths, and specifications.
Q: What quality certifications do you have?
A: We're a National High-Tech Venture with comprehensive quality administration systems.
Q: How do you guarantee item quality?
A: Each item experiences numerous review stages counting chemical, mechanical, and dimensional testing.
Q: What's your commonplace lead time?
A: Standard items: 2-3 weeks; Custom determinations: 3-4 weeks.
Contact Us
Ready to experience premium titanium tubing solutions? Our technical team is ready to assist with your specific requirements.
Email: s4@juchengti.com
Contact us today for technical specifications, pricing, and samples of our superior titanium grade 5 seamless tube products. Let's discuss how our expertise can support your next project.
