grade 5 titanium round rod
2.Size: Diameter Φ6–Φ450mm, Length ≤ 6000mm (or customized up to 12000mm)
3.Standard: ASTM B348, ASME SB348, AMS
4928, AMS 6931, ASTM F136, ISO 5832-3
4.Type: Round bar
5.Processing Method: Vacuum melting → Forging → Hot rolling / Rotary forging → Centerless grinding / Turning → Straightening → Surface treatment
6.State: Annealed
7.Surface Treatment: Polished (bright), Turned (peeled), Centerless grinding, Sandblasted, Pickled
- Product Description

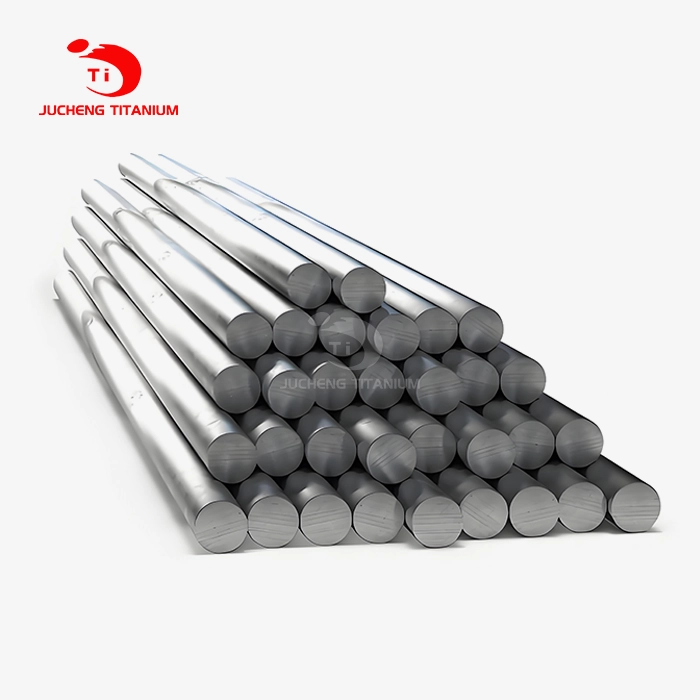

Grade 5 Titanium Round Rod - High-Performance Ti-6Al-4V Alloy Bar
With more than 20 years of manufacturing experience and a headquarters in China's Titanium Valley, Baoji Jucheng Titanium Industry Co., Ltd. provides industrial-quality grade 5 titanium round rod designed to satisfy demanding aerospace and high-performance applications. Our Ti-6Al-4V alloy bars have twice the mechanical qualities of commercially pure grades, with tensile strengths above 895 MPa and yield strengths above 828 MPa. With diameters ranging from Φ6mm to Φ450mm and lengths up to 12,000mm, our production capacity allows for quick delivery from a 3,000-ton stockpile.Every rod undergoes vacuum melting, accurate forging, and centerless grinding to guarantee exact dimensions within ±0.05mm and surface quality matching ASTM B348 and AMS 4928 requirements.
 |  |  |  |
Technical Specifications
Aluminum (6%) and vanadium (4%) alloying components are combined in our rod to produce an alpha-beta microstructure. For your challenging jobs, this provides outstanding strength-to-weight performance.
The best machinability is achieved at the annealed state. Customized hardness profiles for specific applications are made possible by heat treatment options.
Parameter | Specification |
Grade | Gr5 (Ti-6Al-4V), Gr23 (Ti-6Al-4V ELI) |
Diameter Range | Φ6mm – Φ450mm |
Length | Standard ≤6000mm / Custom up to 12,000mm |
Standards | ASTM B348, ASME SB348, AMS 4928, AMS 6931, ASTM F136 |
Processing | Vacuum Melting → Forging → Hot Rolling/Rotary Forging → Centerless Grinding → Straightening |
State | Annealed (M) |
Surface Options | Polished (Bright), Turned (Peeled), Centerless Ground, Sandblasted, Pickled |
Density | 4.43 g/cm³ |
 |  |  |
 |  |  |
 |  |  |  |
Application Versatility
A variety of industries are served by the grade 5 titanium round rod:
Landing gear, fasteners, and engine parts with strong fatigue resistance are examples of aerospace components.
Orthopedic screws and bone plates (Gr23 ELI variant for biocompatibility) are examples of medical implants.
Marine engineering: propeller shafts and corrosion-resistant subsea fasteners
Chemical Processing: Reactor containers, heat exchanger tubes for aggressive media
Support for Customization
Our R&D collaborations with Northwest Nonferrous Metals Research Institute and Tsinghua University provide you with customized solutions.
Your particular requirements are satisfied by custom diameters, unique surface treatments, and non-standard lengths. At every stage of the project, our engineering staff offers technical advice.
 |  |  |
 |  |  |
Why Choose Our Grade 5 Titanium Round Rod
Proven Manufacturing Excellence
You gain access to advanced vacuum melting technology and precision forging systems. Our 120,000-square-meter facility maintains strict quality control through every production stage.
We hold 4 invention patents and 41 utility model patents in titanium processing innovation.
Rapid Delivery Capability
Your urgent projects benefit from our 3,000-ton inventory system. We ship standard dimensions within 48 hours and fulfill custom orders 40% faster than industry averages.
Our annual production of 500+ titanium equipment sets demonstrates scalable manufacturing strength.
FAQ
Q: What are grade 5's primary benefits over commercially pure titanium?
A: Grade 5 offers greater high temperature performance up to 400°C and double the tensile strength of Grade 2 (895 MPa vs. 345 MPa). However, because of the increased hardness, you will require specific machining tools.
Q: Is it possible to cold-form your rod?
A: The high yield strength and limited ductility of cold forming make it quite challenging. To prevent cracking, we advise either buying pre-formed components or hot forming at 870–925°C.Our production capacity allows for fast delivery from a 3,000-ton stock, with diameter sizes ranging from Φ6mm to Φ450mm and lengths that can be customized up to 12,000mm.We ensure that the dimensions are accurate within ±0.05mm and that the surface finish meets the standards of ASTM B348.
Q: What makes the Gr5 and Gr23 versions different?
A: Gr23 (Ti-6Al-4V ELI) has a lower level of interstitial oxygen (maximum 0.13% vs.0.20%), which gives it 30% better toughness, making it suitable for use in very cold environments and for medical implants.
Q: How should titanium rods be stored?
A: Store them in a dry place with humidity below 60%.Although titanium is naturally resistant to corrosion, moisture from later welding steps might bring in hydrogen.Keep the original packaging sealed until you are ready to use the rods.
Q: Do you provide certificates of material traceability?
A: Yes.In accordance with ASTM E213, each batch includes Mill Test Certificates (MTC) that record mechanical properties, chemical composition, heat treatment history, and ultrasonic inspection results.Additionally, following AMS 4928 standards, each rod is made using vacuum melting, precision forging, and centerless grinding.
Contact Us
Ready to source high-performance grade 5 titanium round rod for your next project? Our technical team provides free material selection consultation and expedited quotations within 24 hours. Email us at s4@juchengti.com today.
