Why Use Titanium Sheet in Coil for Heat Exchanger Fabrication?

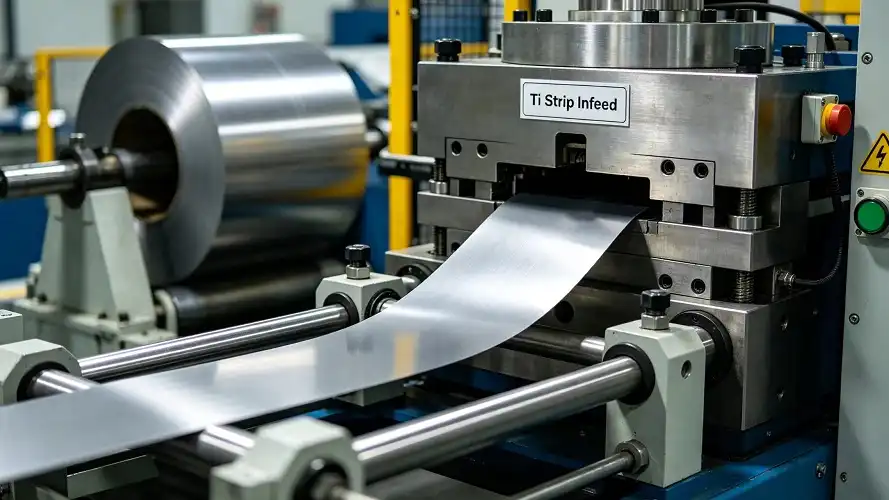

Engineering and procurement experts question why titanium sheet in coil form matters for heat exchanger manufacturing. Production efficiency and material performance are the answers. Titanium Sheet in Coil flows smoothly into automated stamping and forming machines, decreasing downtime and scrap. Coiling titanium allows producers to achieve tight deadlines and maintain quality while making corrugated heat exchanger plates without reloading. With titanium's famed corrosion resistance and strength-to-weight ratio, this format tackles chemical processing, maritime, and power production problems.

Understanding Titanium Sheet in Coil for Heat Exchangers

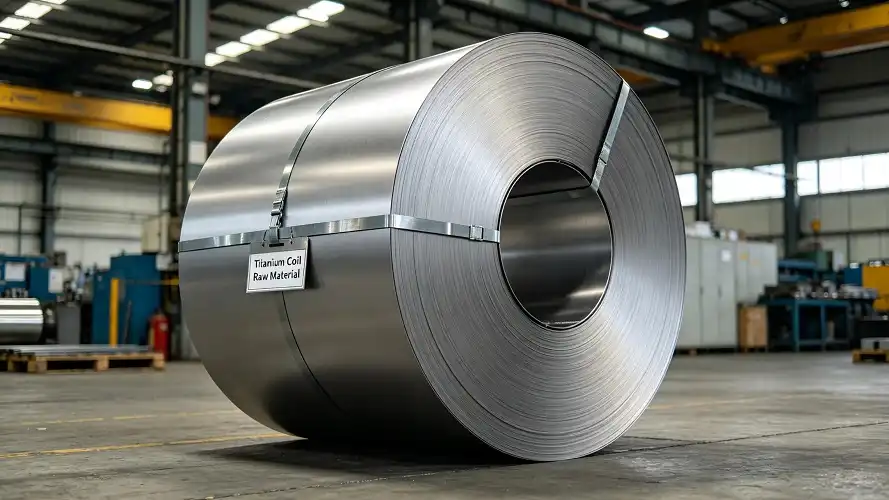

Coil titanium is flat-rolled titanium coiled into continuous coils after rolling and heating. Companies produce heat exchangers in bulk differently using this setup. Instead of handling individual sheets, fabricators feed Titanium Sheet in Coil into progressive stamping dies or roll-forming machinery. This advances productivity.

What Makes Coil Format Essential

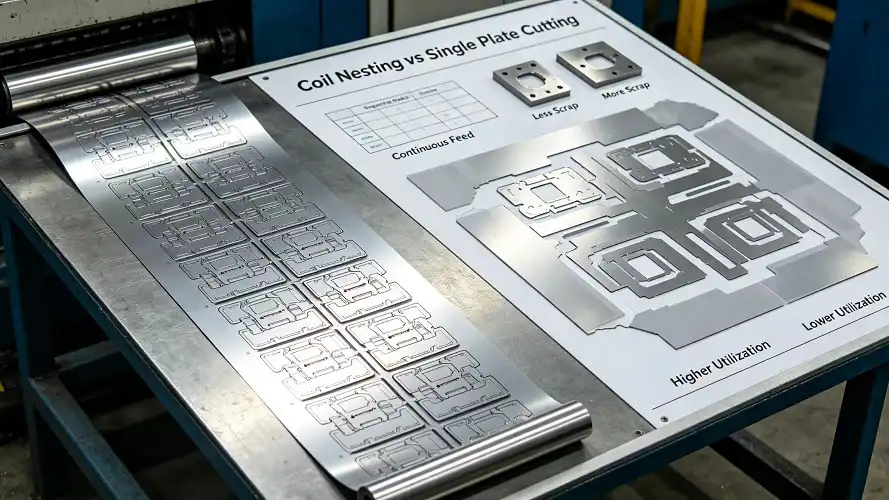

Titanium Sheet in Coil overcomes three key production issues. Production continuity helps automated lines operate longer without stopping to load separate sheets. Nesting cutting patterns along continuous lengths lets manufacturers acquire more material. This reduces edge waste by 15–20% over fixed-dimension sheets. One Titanium Sheet in Coil may replace dozens of sheet SKUs, and producers can decoil and cut to any length, making inventory management easy.

Standard Specifications and Grades

Our Titanium Sheet in Coils meets ASTM B265, ASME SB265, and AMS 4911. For chemical processes and aeroplanes, this ensures tracking and certification. Twelve classes exist: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, and Gr12. Each is intended for a specific corrosion environment and mechanical requirements. The thickness is 0.3mm to 12.0mm, the width is 950mm to 1500mm, and the length may be adjusted to suit the project. Different varieties are hot-rolled and cold-rolled. They are rolled, annealed, levelled, and pickled to improve their appearance.

Industry Applications Driving Demand

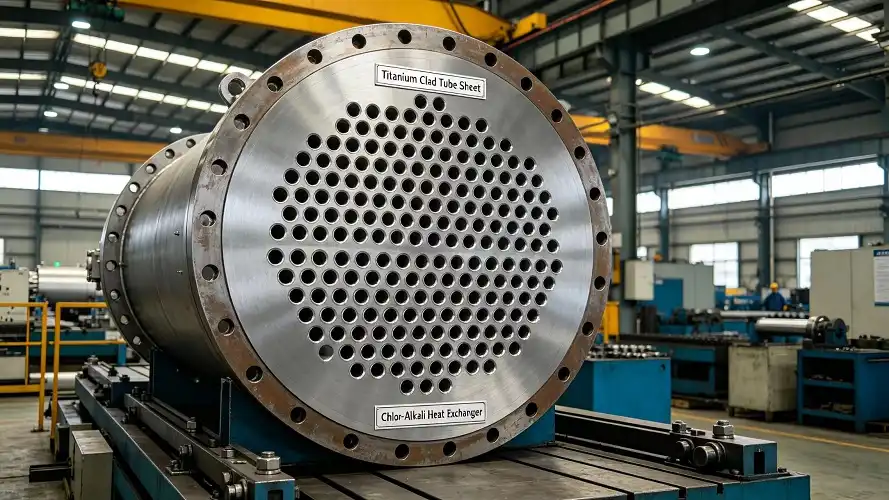

Titanium is good for saltwater cooling heat exchanges because it resists chloride-induced pitting corrosion. Chemical processing facilities utilise titanium sheet in coil-fed machinery to protect stainless steel from powerful acids and alkalis, which tear it down in months. Titanium is utilised in power plant geothermal and condenser applications with high temperatures and corrosive media. Marine engineering projects use this material for desalination plants and cooling systems on distant platforms exposed to saltwater.

Key Properties and Advantages of Titanium Sheet Coil in Heat Exchanger Fabrication

Titanium Sheet Coil performs well due to its metallurgical structure and careful production. When procurement teams recognise these attributes, they may consider total cost of ownership instead of simply material prices.

Corrosion Resistance That Extends Service Life

Titanium's inherent TiO2 oxide layer grows back when damaged, creating a corrosion-resistant barrier. This passive layer can withstand wet-dry cycles that rust other metals quicker, chloride solutions, and oxidising acids without pitting. Titanium Sheet in Coil heat exchangers endure 20–30 years in saltwater, whilst stainless steel breaks after five years. Despite costing more upfront, they endure longer, cost less to fix, delay production, and have reduced lifespan costs.

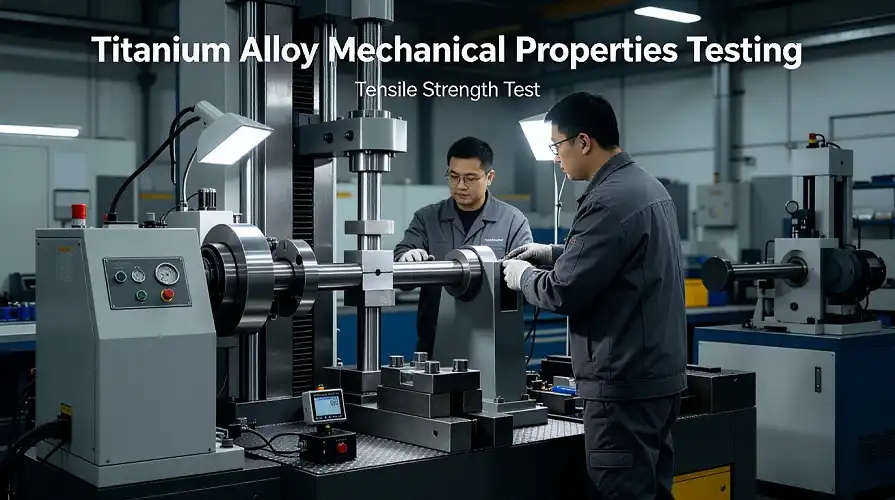

Mechanical Strength Supporting Efficient Design

Due to its weight, titanium is stronger than other technical metals, allowing smaller gauge materials without compromising structural integrity. Titanium Grade 2, with a tensile strength of 344 MPa and a density of 4.51 g/cm³, is 45% lighter than stainless steel. With this blend, heat exchanger builders may create thinner-walled corrugated plates, reducing weight while maintaining pressure ratings. Lighter equipment is simpler to install, requires less foundation, and consumes less fuel in maritime boats. Commercially pure grades are ductile (20–30% extension) and can be deep-formed into complex heat exchangers without breaking.

Thermal Performance: Optimizing Energy Transfer

Despite its poor heat conductivity, titanium is suitable for most heat exchanger applications because its corrosion resistance eliminates fouling and scaling that impede copper and aluminium. Clean titanium surfaces maintain their heat transfer coefficients throughout the equipment's life, whereas corroded or scaled surfaces may lose 30% or more efficiency in a few months. This long-lasting thermal performance saves energy and stabilises operating costs over decades.

Grade Selection Matching Application Requirements

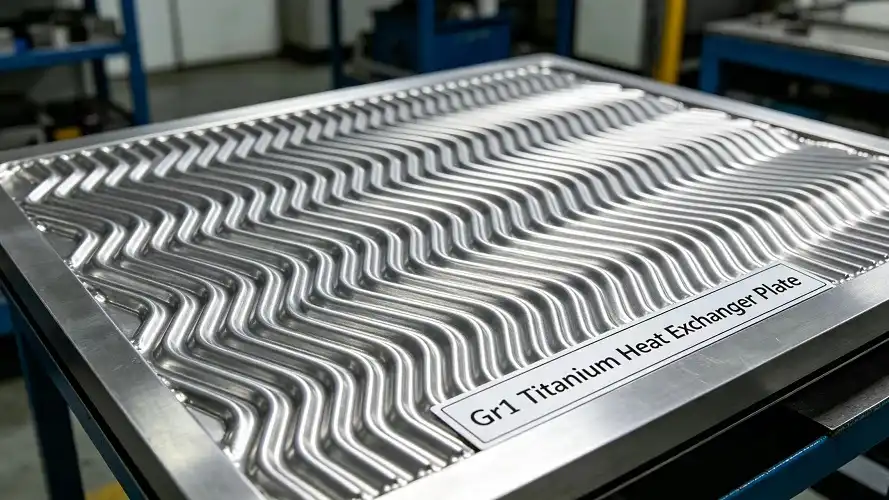

Grade 1 is the most malleable and complex. It's ideal for narrow curve radii and deep corrugations. The norm for common industrial heat exchangers is Grade 2, which is robust enough to resist corrosion and simple to form. Grade 5 (Ti-6Al-4V) is stronger for aircraft that require excellent mechanical performance, but it's difficult to shape in Titanium Sheet in Coils. Chemical factories that handle sulphuric acid or other strong reducing acids use grade 7 with palladium for outstanding resilience. Grade 12 increases chloride crevice corrosion resistance with molybdenum and nickel.

Comparing Titanium Sheet Coil with Alternative Materials for Heat Exchangers

Material choice affects heat exchanger performance, maintenance, and total cost of ownership. When engineers compare Titanium Sheet Coil to alternative solutions, they may make operationally sound decisions.

Titanium Versus Stainless Steel

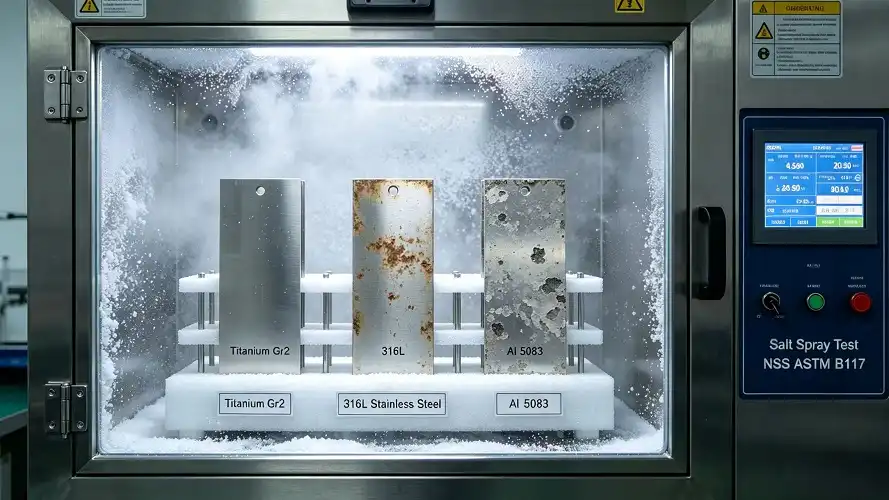

Most areas with modest corrosion resistance and limited budgets employ stainless steel heat exchangers. Stainless steel fails in chloride environments—pitting and crevice rust develop within months in saltwater usage and cause catastrophic failure. Titanium's chloride resistance eliminates this failure scenario. Weight-wise, titanium beats stainless steel. For the same pressure ratings, stainless steel parts weigh twice as much, making them harder to handle and increasing structural support costs. Titanium costs three to four times more initially, but lifetime expenditures like maintenance frequency and downtime make it cheaper.

Titanium Versus Aluminum

Aluminium transfers heat well and is inexpensive, making it ideal for clean fluid applications. Unfortunately, acidic or marine environments rapidly degrade its corrosion resistance. Titanium has a more stable oxide layer than aluminium. It degrades as pH changes, allowing metal to dissolve rapidly. Galvanic corrosion occurs when aluminium is combined with other metals in heat exchangers, complicating design. When corrosion products cover heat-transferring surfaces, aluminium loses its advantage over titanium. Stable passivation protects titanium from deterioration.

Coil Format Versus Flat Plate

In aspects other than material, titanium sheet in coil is superior than flat titanium plate. Flat plates must be manually or robotically put into a pressing press, which delays the operation and increases labour expenses. Titanium sheet in coils is fed constantly via automated forming machinery, which maintains output and saves unit manufacturing time by 30–40%. Titanium Sheet in Coil-fed methods maximise material consumption by nesting cutting patterns without edge limits like fixed-size plates. Because Titanium Sheet in Coil producers sell more conventional widths and thicknesses, lead times are lower. Custom plate sizes may need special manufacturing runs.

How Titanium Sheet Coil is Manufactured and Specified for Heat Exchangers

The quality of the manufacturing directly affects how well and how long a heat exchanger works. Understanding how things are made and what the specifications are helps procurement teams evaluate suppliers and make sure the materials are right.

Production Stages Ensuring Quality

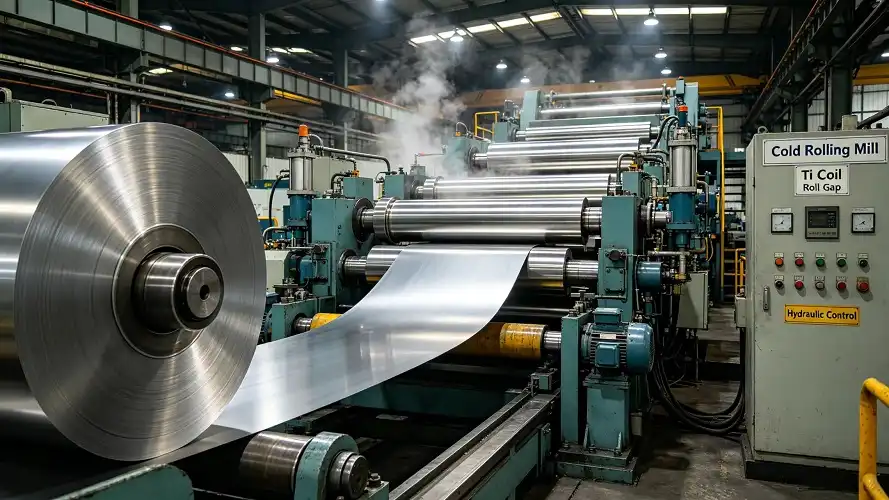

First, vacuum arc remelting melts titanium sponge in a vacuum to generate clean, hole-free bars. Hot-rolling these ingots at 900°C reduces width and creates the appropriate grain structure. Cold rolling improves gauge accuracy after hot rolling, particularly for smaller sizes below 2 mm, where dimensions are tighter. Annealing reduces internal tensions and improves mechanical qualities. The time-temperature profiles are carefully adjusted to produce hardness and ductility. Finishing surfaces with acid pickling removes metal scale. Cleaning surfaces prepares them for formation. Some usages need brilliant annealing in protected atmospheres to shine surfaces without pickling.

Critical Specifications and Tolerances

For cold-rolled Titanium Sheet in Coils, thickness tolerances are typically ±0.05mm or tighter, ensuring consistent form throughout the length. Width tolerances of ±5mm provide smooth material movement via automated processes without edge guidance concerns. I-Unit systems detect flatness and waviness that might prevent stamping dies from operating or cause weld seams to misalign. ASTM B265—Grade 2 requires minimum tensile strength of 344 MPa, yield strength of 275 MPa, and elongation of 20%, validated by longitudinal and transverse tensile testing. Chemical composition proves interstitial element control. Oxygen and iron levels impact shapeability, while hydrogen inhibits slow cracking.

Certification Systems Guaranteeing Reliability

Quality and origin are regulated by international standards. ASTM B265 establishes chemical and mechanical requirements for titanium and titanium alloy strip, sheet, and plate. The pressure vessel code ASME SB265 supersedes ASTM B265, required for heat exchangers under pressure. Flight materials must meet stricter fault and chemical restrictions under AMS 4911. ASTM F67 and F136 are suitable for biological heat transfers but not industrial heat exchanges. Material test results indicate heat-related changes throughout the whole process from ingot to Titanium Sheet in Coil. When project requirements necessitate independent certification, third-party inspection services may ensure compliance.

Customization and Lead Times

Customizing the thickness and width lets you make heat exchangers with a variety of shapes, but common sizes allow for faster delivery. Custom thicknesses that aren't in the normal ranges might need their own rolling campaigns, which could make lead times go from 8 to 12 weeks to 16 to 20 weeks. Width slitting from master Titanium Sheet in Coils gives you options with little delay—it usually only takes an extra one to two weeks on top of normal delivery times. There are different minimum order amounts based on grade and size, ranging from 500 kg for standard Grade 2 to 2000 kg for specialty metals or odd sizes. Here at Jucheng Titanium, we keep about 3,000 tons of stock in common grades and sizes. This way, we can quickly meet urgent needs without the delays that come with making things to order.

Procurement Considerations: Choosing the Right Titanium Sheet Coil Supplier

Not only does choosing a supplier affect the cost of materials, but it also affects project timelines, quality consistency, and the long-term success of the business. Thoroughly checking out a supplier's skills helps avoid delays and poor performance that cost a lot of money.

Evaluating Credentials and Certifications

A supplier's reputation is based on the authenticity of their certification documents. Ask for copies of the ISO 9001 quality management certifications and make sure that the scope of the certifications includes making Titanium Sheet in Coils. Look over material test records from recent production lots to make sure that the testing was done according to ASTM standards and that the results are within the acceptable ranges. Check out traceability systems—reliable sources keep track of heat numbers from the ingot to the finished product, which lets you return items if there are quality problems. Ask about relationships with third-party inspectors; well-known manufacturers are happy to work with SGS, Bureau Veritas, or customer-chosen inspectors. Be wary of suppliers who can't or won't give you detailed documentation. This is often a sign of problems with quality control that show up as rejected materials or equipment breaking down before it should.

Assessing Total Cost of Ownership

The initial price per kilogram is only a small part of how much the material really costs. Lifecycle costs include how long the equipment lasts, how often it needs to be maintained, how much it costs to have it down, and how often it needs to be replaced. A heat exchanger with a premium-grade Titanium Sheet in Coil might cost $50,000 more at first than one made of stainless steel, but it will last 25 years without needing to be replaced, while stainless steel only lasts 7 years. When you add up the three replacement cycles for stainless steel, the cost of installation work, missed production during changeouts, and the cost of disposal, the titanium choice saves you a net of $200,000. Include quality-related costs as well—rejected Titanium Sheet in Coils from poor providers cause repair costs, schedule delays, and damage to the company's image that are much greater than the savings from lower prices.

Logistics and Technical Support

Manufacturers of global heat exchangers need suppliers who can ship their products reliably and in a way that keeps the Titanium Sheet in Coils from getting damaged in transit. Check the logistics company's track record. How often do shipments arrive on time, and how does the supplier handle customs paperwork for your area? Technical support skills are also important; complex applications benefit from engineering help from the supplier when choosing materials, making suggestions for shapes, and fixing problems. The best suppliers act as development partners, giving advice on how to improve the process during the start-up of production and providing material knowledge during the planning steps of heat exchangers.

Jucheng Titanium's Manufacturing Excellence

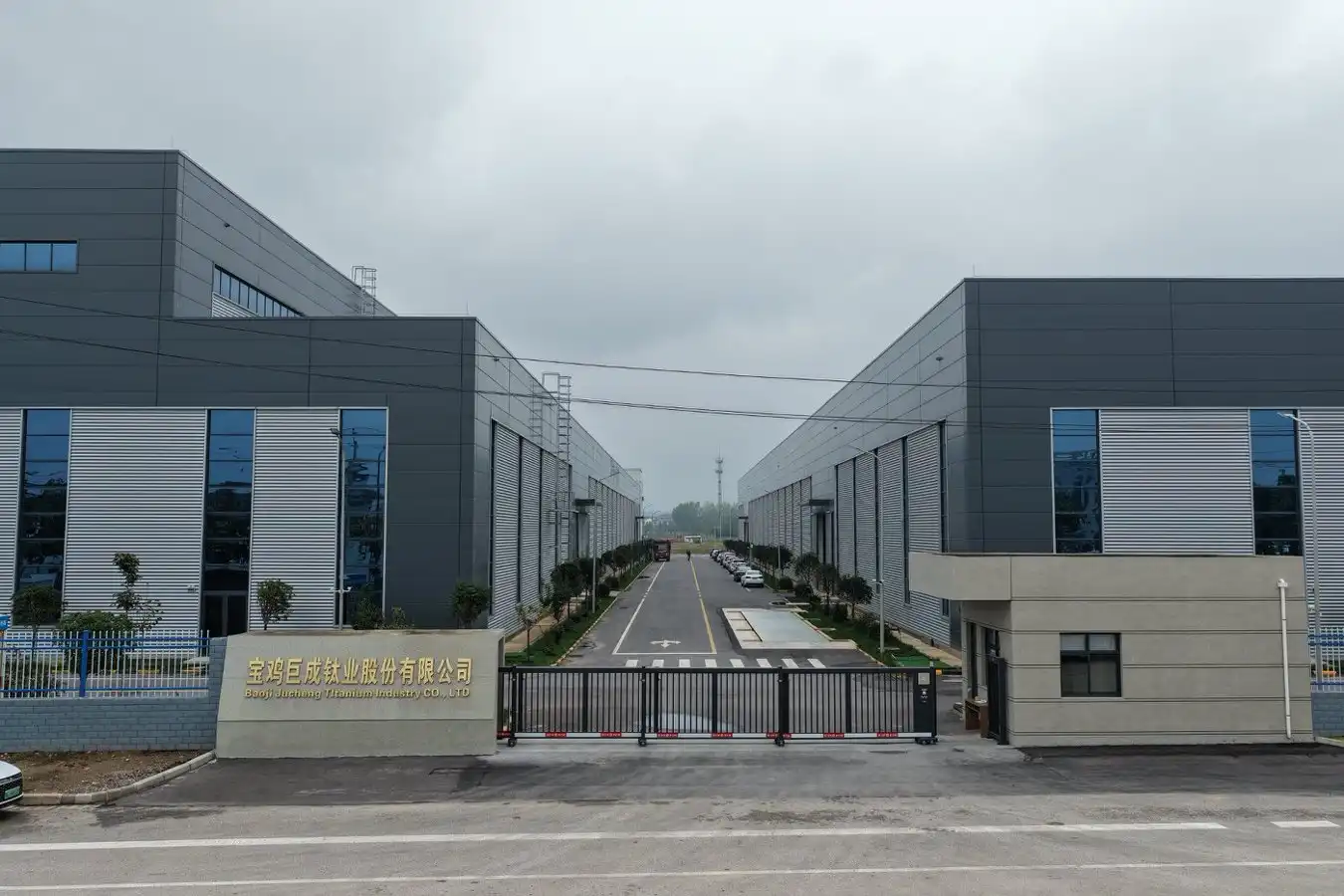

Jucheng Titanium has been making Titanium Sheet in Coils for over 20 years. It is based in Baoji, China's Titanium Valley. Our 120,000-square-meter building has combined powers that allow us to control quality at every step, from melting ingots to making finished Titanium Sheet in Coils. We have 4 idea patents and 41 utility model patents that cover improved processing methods that make materials better and make manufacturing more efficient. Being named a "little giant" and a "National High-Tech Enterprise" shows that we are leaders in technology and always provide high-quality products. Three years in a row of annual revenue growth of more than 30% shows that customers are happy and market trust is growing. Our Titanium Sheet in Coil goods are used by companies that make aircraft parts and need AMS certification, chemical plants that work in harsh conditions with a lot of corrosion, and marine engineering projects that can't have any material failures.

Conclusion

Titanium Sheet in Coil form is the best material for making heat exchangers that need to be resistant to rust, reliable mechanically, and produced quickly. When compared to flat sheet handling, the continuous Titanium Sheet in Coil format allows for automated manufacturing processes that cut down on worker costs, waste, and production plans. Better resistance to corrosion makes equipment last decades longer in harsh environments. This turns heat exchangers from things that need to be maintained into things that you can just install and forget about. When lifecycle costs are used instead of just comparing material prices, Titanium Sheet in Coil shows strong economic value along with operational benefits. By choosing qualified suppliers with a track record of producing high-quality goods, a wide range of certifications, and quick technical support, you can be sure that the materials will meet the needs of the project and that the delivery dates will work with the construction schedule.

FAQ: Common Questions About Titanium Sheet Coil in Heat Exchangers

1. Why choose titanium sheet coil over other materials for heat exchangers?

Titanium Sheet in Coil is the best at resisting corrosion in harsh chemical and sea conditions, where aluminum and stainless steel break down quickly. Because it is stronger than it is heavy, it is possible to make heat exchangers that are lighter without lowering their pressure values or mechanical integrity. When compared to flat sheet handling, the continuous Titanium Sheet in Coil format allows for automated fabrication processes that lower costs and improve consistency in production.

2. How do I determine which titanium grade suits my heat exchanger application?

Which grade to use depends on the corrosive environment and the mechanical needs. Grade 2 is used in most industrial settings where seawater, neutral salts, and reactive acids are present. Palladium is added to Grade 7 to make it very resistant to reducing acids like sulfuric acid. Grade 5 is stronger and is used in aerospace applications that need very high mechanical performance. Talking to experienced providers about your working conditions is the best way to make sure you get the right grade standard.

3. Can titanium coil be customized to specific dimensions and delivery schedules?

Reliable makers let you change the thickness, width, and length of their products in a lot of ways to fit different heat exchanger designs. Usually, standard sizes ship within 8 to 12 weeks, while special sizes may take 16 to 20 weeks. Suppliers with large stocks, like Jucheng Titanium's 3,000-ton stock, can often meet urgent needs with material that is already in stock and with little lead time.

Partnering with Jucheng Titanium for Your Heat Exchanger Projects

A heat exchanger that works well starts with a high-quality Titanium Sheet in Coil made by a reputable company. Jucheng Titanium has been working in the titanium industry for 20 years and has state-of-the-art production facilities and strict quality systems that allow them to make Titanium Sheet in Coils that meet the strictest requirements. Our large inventory—about 3,000 tons of common types and sizes—allows us to respond quickly to urgent project needs in a way that our competitors can't. Every year, we make more than 500 sets of titanium heat exchangers, which helps us understand how the properties of a material affect how well it works in equipment. We keep up the technical skills and quality standards needed for aircraft, chemical processing, and marine uses as a qualified Titanium Sheet in Coil provider with National High-Tech Enterprise standing and "little giant" recognition. Email our team at s4@juchengti.com to talk about your specific heat exchanger needs, get samples of the materials, or set up a technical meeting. Let us show you how finding the right Titanium Sheet in Coil partner can speed up the success of your project.
