cp grade 2 titanium sheet
2. Size: Thickness 4mm–80 mm, 950≤ Width ≤ 2500 mm, Length ≤ 10000 mm, or customized
3. Standard: ASTM B265, ASTM F67, AMS 4911, ASME SB265
4.Type: Hot Rolled
5. Processing Method: Rolling, Annealing, Leveling,Pickling,Surface Finishing
6. State: Annealed
7. Surface Treatment:Polished, Machined, Acid Pickled
- Product Description

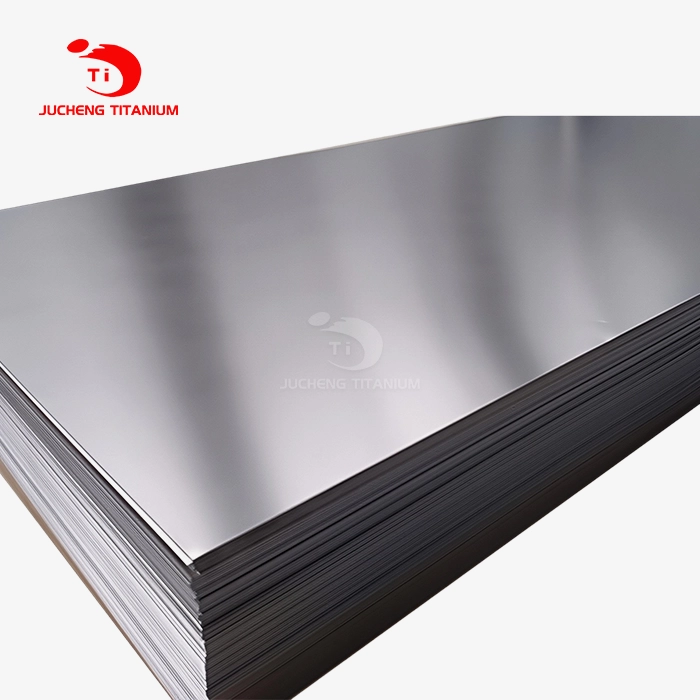

CP Grade 2 Titanium Sheet - Industrial Grade Corrosion-Resistant Material
Product Overview
Industrial-quality CP grade 2 titanium sheet produced in accordance with ASME SB265 and ASTM B265 specifications is provided by Baoji Jucheng Titanium Industry Co., Ltd. Our sheets have a minimum yield strength of 275 MPa, a tensile strength of 345 MPa, and an elongation of more than 20% for exceptional cold-forming capabilities. With more than 20 years of experience in titanium production and a year-round inventory of about 3,000 tons, we guarantee quick delivery for your important projects. With the help of sophisticated melting, rolling, and precision machining facilities covering 120,000 square meters in China's Titanium Valley, we are able to produce more than 500 pieces of titanium equipment per year.
 |  |  |  |
 |  |  |  |
Technical Specifications
Parameter | Specification |
Grade | Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 |
Thickness | 4mm – 80mm |
Width | 950mm – 2500mm |
Length | Up to 10,000mm or customized |
Standard | ASTM B265, ASTM F67, AMS 4911, ASME SB265 |
Type | Hot Rolled |
State | Annealed |
Density | 4.51 g/cm³ (45% lighter than steel) |
Yield Strength | Min. 275 MPa (40 ksi) |
Tensile Strength | Min. 345 MPa (50 ksi) |
Elongation | ≥20% |
Processing Method | Rolling, Annealing, Leveling, Pickling |
Surface Treatment | Polished, Machined, Acid Pickled |
 |  |  |
 |  |  |
Quality Assurance
Our manufacturing process includes strict chemical composition control. Iron content stays below 0.30%, oxygen below 0.25%. This precise control optimizes the strength-to-ductility balance you need.
We continue to have extensive testing capabilities, such as XRF analysis for Positive Material Identification (PMI). Non-destructive testing is performed on each batch to confirm compliance with ASTM B265 requirements.
 |  |  |  |
Industrial Applications
Chemical Processing Equipment
Your reaction vessels, heat exchangers, and storage tanks handling hypochlorites and nitric acid benefit from complete crevice corrosion immunity. The material protects critical infrastructure against aggressive fluids that destroy conventional metals.
Desalination and Power Generation
Condenser tube sheets and plate-and-frame heat exchangers in coastal facilities require resistance to microbiologically influenced corrosion. Our cp grade 2 titanium sheet withstands high-velocity seawater flow in desalination plants.
Medical and Aerospace Components
Bio-inert properties make the material suitable for cranial plates and maxillofacial reconstruction. Its osseointegration capability supports medical device manufacturing. In aerospace, you gain formable material for non-structural airframe skins and ducting systems.
 |  |  |
 |  |  |
Why Choose Our CP Grade 2 Titanium Sheet
Increased Resistance to Corrosion
When broken, the protective titanium dioxide (TiO2) coating on sheet rapidly recovers. In seawater up to 200°C, this offers total protection against pitting and crevice corrosion. In conditions where stainless steel fails, such as moist chlorine, metallic chlorides, and sulfides, you get dependable performance.
Outstanding Weldability and Formability
In contrast to Grade 5 titanium alloy, our material can attain mechanical qualities without heat treatment. Excellent cold-forming properties for stamping and bending operations are guaranteed by the 20% elongation. Welding it will not significantly reduce its ductility, making the fabrication process easier.
Strong but Lightweight
The material weighs 56% of similar steel components with a density of 4.51 g/cm³. You preserve steel-like tensile qualities while lowering structural weight. This benefit is essential for transportable equipment, marine components, and aeronautical ducting.
Frequently Asked Questions
Q: What makes Grade 2 titanium sheet different from Grade 1?
A: Because of its regulated iron and oxygen concentration, Grade 2 delivers greater strength (yield 275 MPa vs. 170 MPa). For general industrial applications, it strikes a compromise between strength and formability, while Grade 1 offers better deep-drawing ductility.
Q: Is it possible for me to fuse your titanium sheet to stainless steel?
A: Brittle intermetallic composites (FeTi) are produced by direct welding. When combining incompatible materials, explosive bonding or mechanical fastening must be used.
Q: What is the highest temperature at which it may be used?
A: Up to 400°C to 425°C, the material is stable. Unless utilized in vacuum, fast oxidation takes place at this range, resulting in the formation of a brittle alpha case layer.
Q: How can I confirm the grade of the material?
A: Make use of XRF portable analyzers for Positive Material Identification (PMI) testing. Grade 5 has about 6% aluminum and 4% vanadium, whereas Grade 2 is 99% pure titanium with trace components.
Q: After cold forming, is heat treatment required?
A: Following severe cold forming, stress reduction annealing at 538°C for 30 to 60 minutes is advised. By doing this, the Bauschinger effect is avoided and ductility is restored.
Contact Us
Need customized dimensions or cp grade 2 titanium sheettechnical specifications for your project? Our engineering team at Baoji Jucheng Titanium Industry stands ready to support your requirements. Contact us at s4@juchengti.com for quotations and technical consultation.
