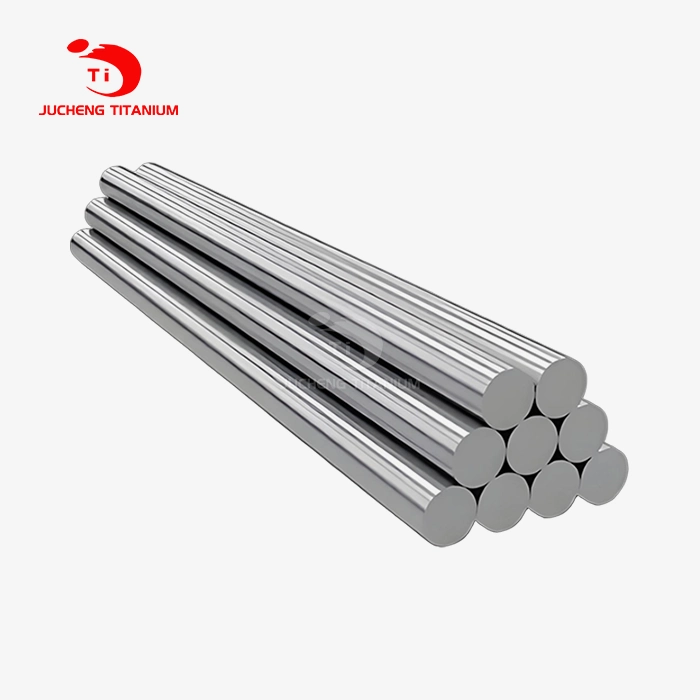

grade 1 titanium rod
2.Size: Diameter Φ6–Φ450mm, Length ≤ 6000mm (or customized up to 12000mm)
3.Standard: ASTM B348, ASME SB348, AMS
4928, AMS 6931, ASTM F136, ISO 5832-3
4.Type: Round bar
5.Processing Method: Vacuum melting → Forging → Hot rolling / Rotary forging → Centerless grinding / Turning → Straightening → Surface treatment
6.State: Annealed
7.Surface Treatment: Polished (bright), Turned (peeled), Centerless grinding, Sandblasted, Pickled
- Product Description
Grade 1 Titanium Rod - Pure Titanium Material for Maximum Formability
Baoji Jucheng Titanium Industry Co., Ltd., based in China's Titanium Valley, manufactures grade 1 titanium rod with over 20 years of industrial expertise. Our rods offer unparalleled ductility for intricate forming processes since they are at least 99.5% pure titanium with an oxygen level of ≤0.18% and an iron content of ≤0.20%. We guarantee prompt delivery for your important projects since we hold 3,000 tons of titanium inventory year-round and produce more than 500 sets of titanium equipment annually. Our 120,000-square-meter manufacturing facility is outfitted with precision processing lines and cutting-edge vacuum melting technologies. Every rod is certified to ASTM B348 and ASME SB348 requirements after undergoing stringent ultrasonic testing in accordance with AMS 2631 and chemical composition analysis using ICP-OES.
 |  |  |  |
Technical Specifications
Our rod is engineered for applications demanding maximum plasticity and superior corrosion resistance in chloride-rich environments.
Parameter | Specification |
Grade | Gr1 (UNS R50250) |
Diameter Range | Φ6mm – Φ450mm |
Length | Up to 6000mm (customizable to 12000mm) |
Standards | ASTM B348, ASME SB348, AMS 4928 |
Oxygen Content | ≤0.18% |
Iron Content | ≤0.20% |
State | Annealed |
Surface Finish | Polished, Turned, Centerless Ground, Pickled, Sandblasted |
Processing | Vacuum Melting → Forging → Hot Rolling → Grinding → Straightening |
Processing Capabilities
Precision Machining Services
Our CNC equipment handles complex geometries with ±0.05mm tolerance. Centerless grinding produces mirror-finish surfaces down to Ra 0.4μm. Heat treatment facilities provide stress relief at 480-595°C for dimensional stability.
Custom Fabrication
We accommodate special length requirements beyond standard 6-meter sections. Non-standard diameters match your engineering drawings. Surface treatments adapt to your assembly processes. Your procurement team works directly with our technical engineers.
 |  |  |
 |  |  |
 |  |  |  |
 |  |  |
 |  |  |
Why Choose Our Grade 1 Titanium Rod
Superior Material Purity
Our vacuum melting process eliminates internal voids and inclusions. Every batch receives Mill Test Certificates conforming to EN 10204 3.1. You benefit from consistent mechanical properties across large production runs.
Advanced Quality Control
We implement five-stage inspection protocols. Ultrasonic testing detects subsurface defects. Eddy current examination identifies surface micro-cracks. Dimensional verification ensures h7 to h11 precision tolerances. Your quality team receives complete traceability documentation.
Application Versatility
The material excels in aerospace heat exchangers requiring cryogenic impact toughness. Chemical processing equipment benefits from stress corrosion cracking resistance in oxidizing acids. Medical device manufacturers utilize its biocompatibility for surgical instruments. Marine components achieve decades of service life in seawater exposure.
Fast Delivery Capability
Our 3,000-ton inventory eliminates lead time delays. Standard diameters ship within 72 hours. Custom specifications complete within 2-3 weeks. You meet project deadlines without material shortage risks.
Frequently Asked Questions
Q: What distinguishes grade 1 titanium rod from Grade 2 material?
A: Grade 1 contains lower oxygen (0.18% vs 0.25%), resulting in 15-20% greater elongation. Choose Grade 1 when your application requires extreme cold forming or bending beyond 90 degrees without cracking.
Q: Can this material be welded to stainless steel?
A: Direct welding creates brittle intermetallic compounds. Use explosive bonding or mechanical fastening instead. Our technical team provides junction design consultation for dissimilar metal assemblies.
Q: What quality documentation accompanies each shipment?
A: You receive chemical composition reports, mechanical property test results, ultrasonic inspection records, and material traceability certificates. All documentation complies with ASTM E8 testing protocols.
Q: Does the material require post-machining stress relief?
A: Stress relieving at 480-595°C is recommended for components with tolerances tighter than 0.1mm. This prevents dimensional drift during service. We provide heat treatment guidelines with technical data sheets.
Q: How does Grade 1 perform in reducing acid environments?
A: Performance is limited in concentrated HCl or H2SO4 solutions. For reducing acids, consider Grade 7 with palladium addition. Our metallurgy team conducts corrosion testing to match materials with your specific media.
Contact Us for Technical Support
Need grade 1 titanium rod custom diameter specifications or expedited delivery? Our engineering team provides material selection guidance for your application requirements.
Email: s4@juchengti.com for quotations and technical data sheets within 24 hours.
