Gr 5 titanium plate for aerospace structural components

When engineers and procurement managers search for the right material for aerospace structural components, gr 5 titanium plate consistently rises to the top of the shortlist. Known technically as Ti-6Al-4V, this alpha-beta alloy accounts for roughly 50% of global titanium consumption — a figure that reflects its proven track record across airframe structures, engine housings, and fastener systems. This guide walks through its properties, procurement considerations, and what to look for in a supplier, giving your team a practical foundation for the next sourcing decision.

Understanding Gr 5 Titanium Plate: Properties and Composition

One cannot just refer to Ti-6Al-4V as "strong titanium." Through its chemistry and processing, it creates a material profile that is difficult for other alloys to replicate at a weight that is equivalent.

Chemical Composition

The alloy is composed of a mixture of 5.5–6.75% aluminium, which is an alpha-phase stabiliser, and 3.5–4.5% vanadium, which is a beta-phase stabiliser. A balance of titanium is achieved by maintaining iron at a level of ≤0.40% and oxygen at a level of ≤0.20%. Gr 5 is distinguished from economically pure grades such as Gr 1 or Gr 2 by virtue of its dual-phase microstructure.

Mechanical Performance

When subjected to the annealing process, Ti-6Al-4V exhibits a minimum tensile strength of 895 MPa (130 ksi) and a yield strength of 828 MPa (120 ksi), along with a minimum elongation of 10%. It has a density of 4.43 grams per cubic centimetre, which is about 44% less than steel when given equal strength values. Additionally, it retains its structural integrity at temperatures of up to 400 degrees Celsius (752 degrees Fahrenheit).

Applicable Standards

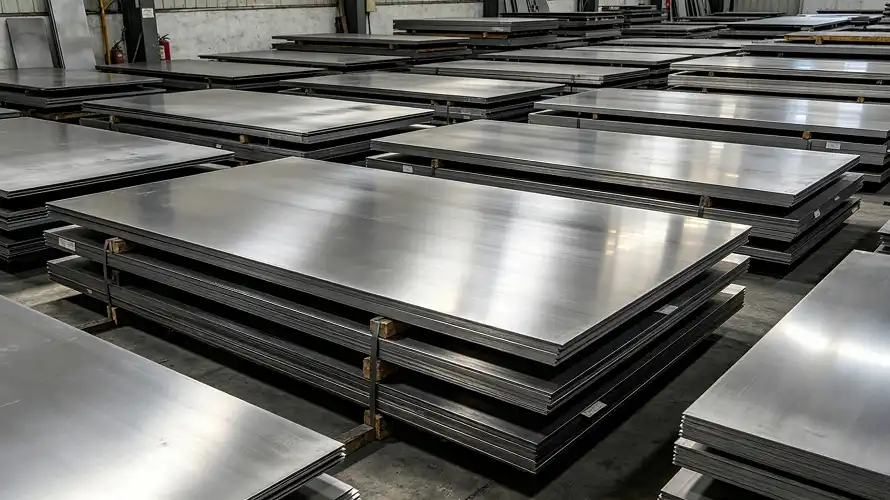

There is complete conformity between Jucheng Titanium's production of Gr 5 plate and the standards of ASTM B265, AMS 4911, and ASME SB265. With specific measurements available upon request, the available sizes range from a thickness of 4 to 80 millimetres, a width of 950 to 2,500 millimetres, and a length of up to 10,000 millimetres. The surface of the plate may be polished, machined, or acid-pickled, and it is hot-rolled and provided in the annealed form. Other surface customisation choices include acid-pickling.

Why Gr 5 Titanium Plate Is Ideal for Aerospace Structural Components

The aerospace industry does not accept compromise. Every gram saved on structure translates directly into payload or fuel efficiency, and every weakness in a component can carry catastrophic consequences.

Strength-to-Weight Advantage

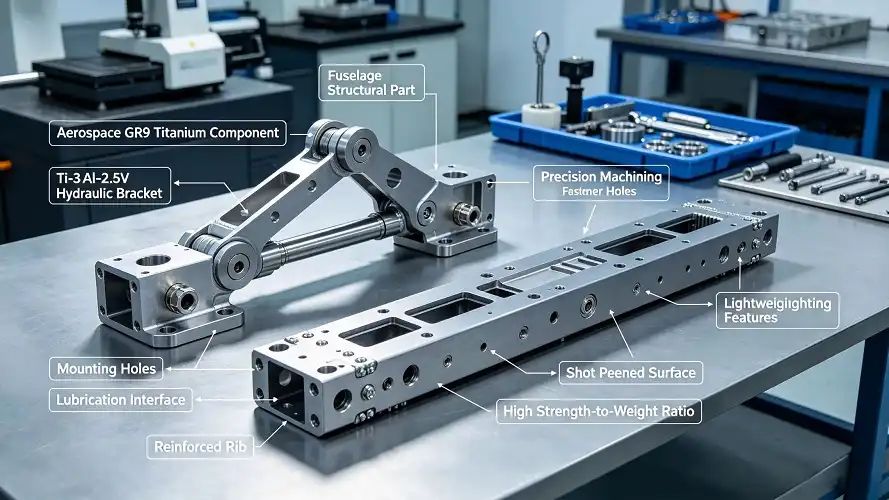

Ti-6Al-4V delivers near-steel strength at less than half the density. For airframe brackets, wing ribs, and pressure bulkheads, this ratio is decisive. Replacing a steel bracket with an equivalent Ti-6Al-4V part typically cuts component weight by 40–45% without any sacrifice in load-bearing capacity.

Fatigue and Corrosion Resistance

Aerospace structures endure millions of load cycles over their service life. Gr 5 titanium plate performs well under cyclic stress, and its natural oxide layer provides passive corrosion protection that eliminates the need for protective coatings in many applications. Unlike aluminum, it does not suffer pitting in chloride environments, which matters for maritime patrol aircraft and naval platforms.

Proven Application Record

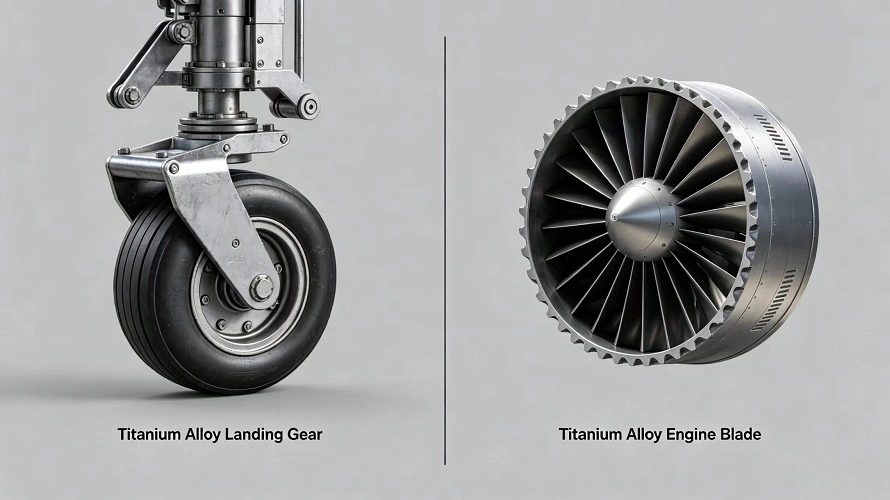

Ti-6Al-4V is specified for engine compressor blades, nacelle frames, landing gear components, and hydraulic system fittings across major commercial and military aircraft programs. The Boeing 787 Dreamliner, for example, is reported to use titanium for approximately 15% of its structural weight — the majority being Ti-6Al-4V.

Procurement Considerations for Gr 5 Titanium Plate

Finding a price per kilogram is not sufficient to get titanium plate that is suitable for aerospace applications. Certification, monitoring, and the predictability of lead times are all equally critical components of a purchasing procedure that is carried out effectively.

Prior to making an order, procurement teams have to give careful consideration to the following primary aspects:

• Confirm that the supplier has paperwork that is in accordance with ASTM B265, AMS 4911, and ISO quality standards (also known as certification compliance). Each batch of plates must be accompanied by a material test report (MTR) that can be traced back to the melt.
• Projects almost never make use of stock sizes due to their customisation and dimensional flexibility. Secondary processing costs and lead time may be reduced by using a supplier that provides wide widths of up to 2,500 millimetres, thicknesses ranging from 4 millimetres to 80 millimetres, and bespoke cut-to-length services.

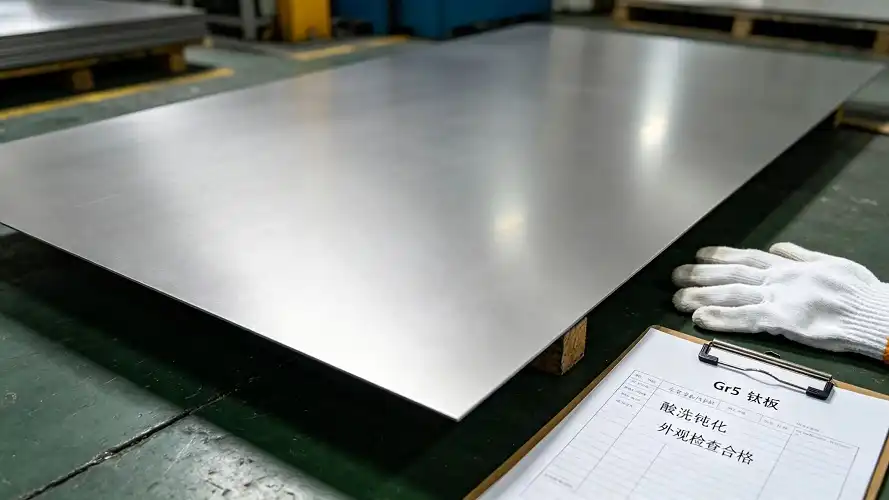

• Surface finish choices include acid-pickled surfaces, which are suitable for the majority of structural applications. Polished or machined finishes are specified in situations where fatigue onset from surface roughness is a design issue of the material.

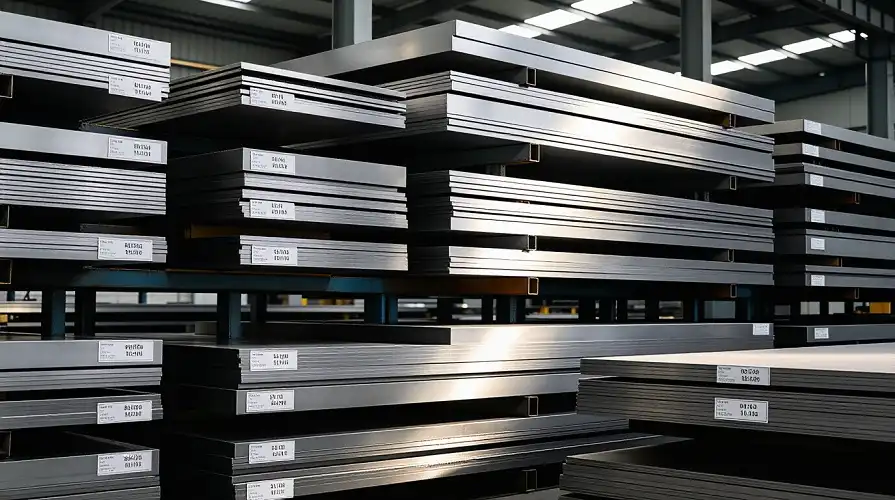

• Inventory depth: Suppliers that have a substantial standing inventory are able to react to urgent demand without having to force long lead times. Jucheng Titanium has roughly 3,000 tonnes of titanium stock on hand during the whole year, which directly supports the company's ability to supply standard materials in a timely manner.

The procurement team has trust that the material that is given to the shop floor will perform as it is intended to perform, and that the documentation will be able to pass an AS9100 supplier inspection. All of these factors give them this faith.

How to Decide if Gr 5 Titanium Plate Is Right for Your Aerospace Project

Not every aerospace application calls for Ti-6Al-4V. Making an informed selection means comparing the alloy against project-specific constraints.

Load and Temperature Requirements

If the component carries primary structural loads and operates up to 400°C, a gr 5 titanium plate is a direct fit. For cryogenic applications, the ELI (Extra Low Interstitial) variant of Ti-6Al-4V improves ductility at sub-zero temperatures, making it the preferred choice for space launch structures.

Machinability and Fabrication

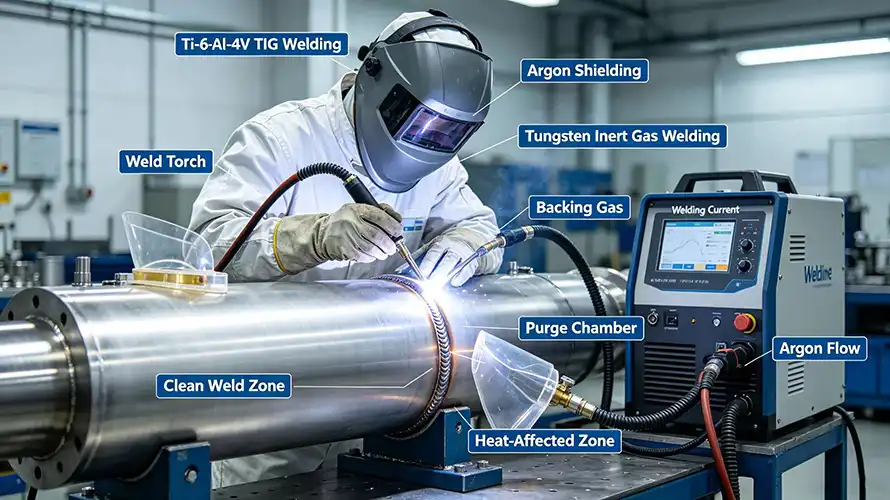

Under the condition that a stringent argon gas barrier is used to avoid air contamination during the welding process, Ti-6Al-4V may be welded using TIG or plasma methods. In addition, the alloy is able to react to solution treating and ageing (STA) heat treatment, which has the potential to increase tensile strength even further in situations when the attributes of the annealed state do not meet the requirements of the project.

Cost-Benefit Against Alternatives

The price of Gr 5 is more than the price of commercially available Gr 2, but because of its strength, less material is utilised for each component, and its resistance to corrosion removes the expenditures associated with coating lifecycles. When compared to maraging steel, the weight reduction often compensates for the price premium within the first year of aircraft operation from the savings in fuel alone.

Future Trends in Aerospace Titanium Plate Supply

Within the aerospace industry, the demand for Ti-6Al-4V is not constant. The way that procurement teams create long-term supply plans is being reshaped by a number of different trends.

Additive Manufacturing Integration

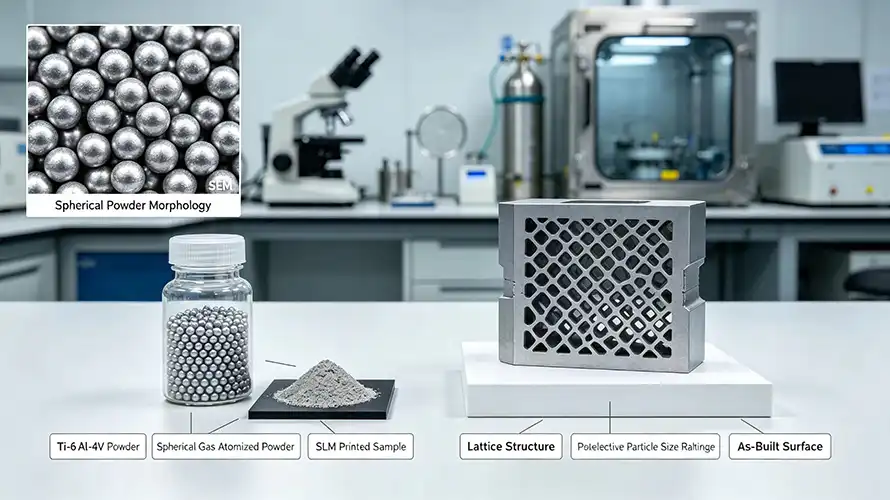

There has been an increase in the use of Ti-6Al-4V feedstock in powder-bed and directed-energy deposition methods. In spite of the fact that this does not take the place of wrought plate for main construction, it does alter the production process for near-net-shape inserts and brackets. Furthermore, suppliers that are capable of producing both wrought and powder elements provide more comprehensive program assistance.

Sustainability and Recycling

Recovery rates for titanium scrap are increasing, and original equipment manufacturers in the aerospace industry are also monitoring supply chain sustainability measures in addition to mechanical qualities. When suppliers make investments in closed-loop recycling and clean processing, they signal a business relationship that is less risky over the long run.

Supply Chain Resilience

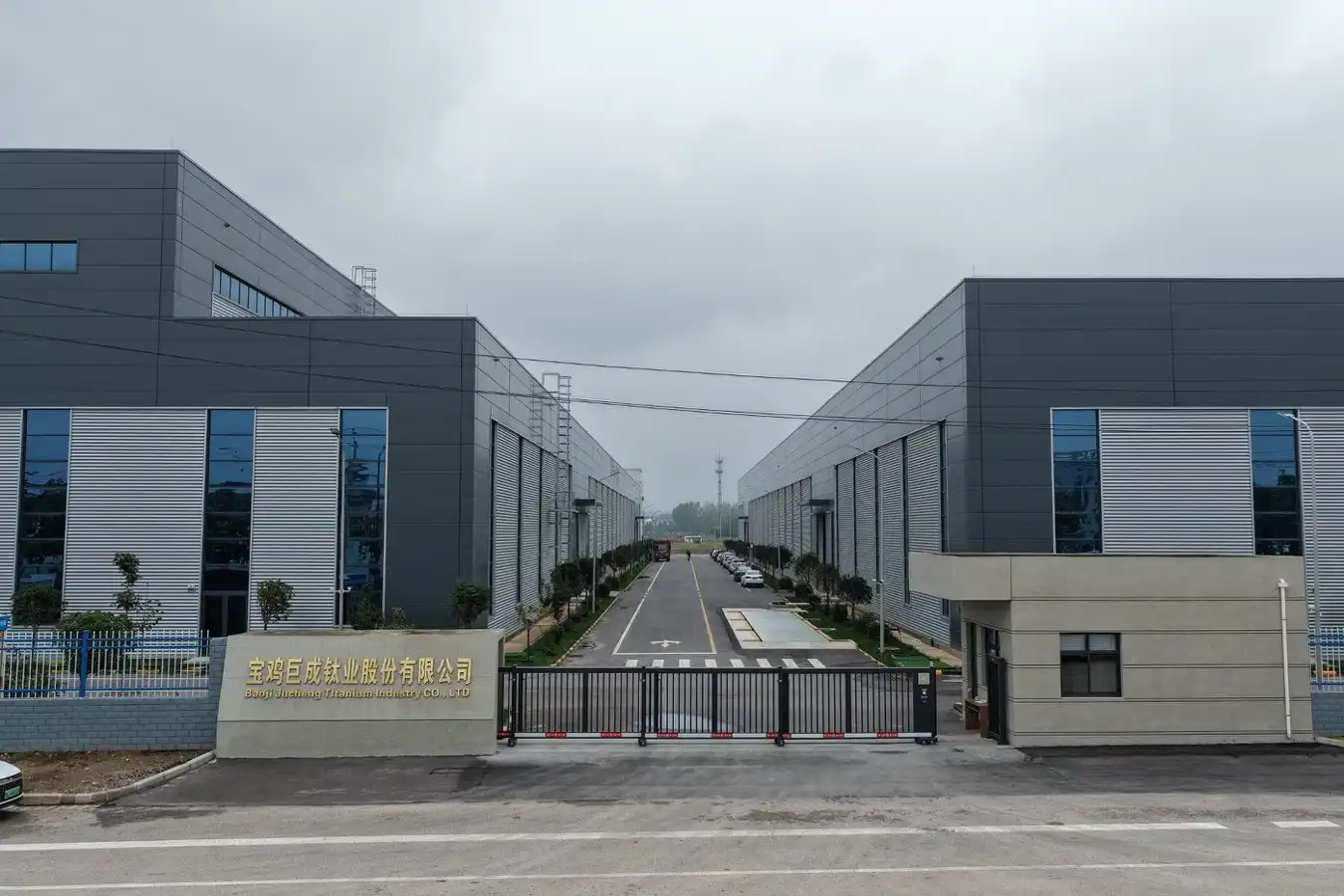

Supply interruptions that occurred after the year 2020 brought to light the dangers of purchasing titanium from a single supplier. Purchasing managers are now spreading their suppliers among eligible vendors located in a variety of geographic locations. The fact that Jucheng Titanium is located in Baoji, which is well recognised as China's titanium manufacturing hub, in addition to the fact that it has experience exporting to countries all over the world, makes it a sensible addition to a diverse supplier panel.

Conclusion

Ti-6Al-4V plate is still the best material for building structures in spacecraft because it has the right mechanical and chemical properties for the job: it is strong, light, has a long fatigue life, and protects against corrosion without actively preventing it. To do the buying right for a gr 5 titanium plate, you need to check the certifications, make sure the dimensions are flexible, and work with a seller who has a lot of stock and real technical knowledge. Jucheng Titanium has been building up Baoji's ability to do just that for more than 20 years, and we'd love the chance to help you with your next job.

FAQ

1. What certifications should I require when sourcing Ti-6Al-4V plate for aerospace?

For general industrial use, ask for material test reports that reference ASTM B265; for aerospace structural applications, ask for reports that reference AMS 4911. At the supplier level, ISO 9001 or AS9100 quality management certification gives you even more peace of mind that process controls are in place.

2. How does Gr 5 differ from Gr 2 titanium plate?

Gr 2 is commercially pure titanium that is easy to shape and doesn't rust, but it's not very strong (its tensile strength is about 345 MPa). At a minimum of 895 MPa, Gr 5 is almost twice as strong as Gr 2, so it can be used for load-bearing structural parts where Gr 2 wouldn't work.

3. Can Ti-6Al-4V plate be welded in aerospace assemblies?

Both TIG and plasma welding are good, but you need a full argon shield to keep air and nitrogen from getting into the weld zone and making it weaker. Post-weld annealing is often asked for to get rid of any remaining stress.

4. Is Gr 5 plate available in non-standard thicknesses?

Yes. It can be anywhere from 4 mm to 80 mm thick, and it can be as long as 10,000 mm and as wide as 950 mm or 2,500 mm. If you need custom sizes outside of these areas, just let us know.

Source Your Gr 5 Titanium Plate with Jucheng Titanium

For more than 20 years, Jucheng Titanium has sold aerospace-grade Ti-6Al-4V plate to buyers around the world. The company has 4 idea patents, 41 utility model patents, and about 3,000 tons of stock on hand. We are a verified manufacturer and exporter of gr 5 titanium plate. The material we sell is in line with AMS 4911 and ASTM B265, and we can make it in any size or shape. We also offer fast delivery and full MTR traceability. Get a quote from our team right away by emailing s4@juchengti.com.

References

1. ASTM International. ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International, 2020.

2. SAE International. AMS 4911: Titanium Alloy Sheet, Strip, and Plate, 6Al-4V, Annealed. SAE International, 2015.

3. Donachie, M. J. Titanium: A Technical Guide. 2nd ed. ASM International, 2000.

4. Boyer, R. R. "An Overview of the Use of Titanium in the Aerospace Industry." Materials Science and Engineering: A, vol. 213, no. 1–2, 1996, pp. 103–114.

5. Peters, M., et al. "Titanium Alloys for Aerospace Applications." Advanced Engineering Materials, vol. 5, no. 6, 2003, pp. 419–427.

6. Lutjering, G., and J. C. Williams. Titanium. 2nd ed. Springer, 2007.
