Titanium 6Al4V Sheet: Grades, Sizes, and Buying Guide

If you are sourcing high-performance titanium for aerospace, chemical processing, or medical applications, titanium 6al4v sheet — formerly designated Grade 5 — is likely at the top of your material shortlist. This alpha-beta alloy, composed of 90% titanium, 6% aluminum, and 4% vanadium, accounts for over 50% of global titanium usage. This buying guide covers grades, standard sizes, processing options, supplier selection, and pricing strategy, giving B2B procurement teams a practical foundation for confident sourcing decisions.

Understanding Titanium 6Al4V Sheet: Composition and Properties

Chemical Composition and Grade Classification

Alpha-beta titanium alloy is the kind of titanium alloy that is known as Ti-6Al-4V. Vanadium is responsible for stabilising the beta phase, whereas aluminium is responsible for stabilising the alpha phase. After being heated, they combine to produce a material that has a tensile strength of more than 895 MPa (130 ksi) and a yield strength of more than 828 MPa (120 ksi). Overall, this material is very strong. More often than not, the hardness falls somewhere in the range of 30 to 36 HRC. Rather than being limited to Grade 5, titanium sheet is available in a larger variety of grades. Grades 1, 2, 4, 7, 9, and 12 are included in this particular group. The corrosion and strength profiles of each of these grades are distinct from one another.

Mechanical Performance in Industrial Conditions

The alloy maintains its structure up to around 400 degrees Celsius (750 degrees Fahrenheit), which makes it ideal for use in high-temperature aerospace and industrial situations. It has a density of 4.43 grams per cubic centimetre, which is about sixty percent of that of steel. Due to this, it has a high specific strength, which immediately contributes to a reduction in the weight of buildings. Both its resistance to fatigue and its ability to withstand fractures are outstanding over the whole thickness range. Because of this, it is used in the construction of aircraft fuselage panels, turbine components, and joint replacements.

Applicable Standards and Certifications

Sheets of Grade 5 that are manufactured by Hucheng Titanium are compliant with the specifications established by ASTM B265, AMS 4911, and ASME SB265. When it comes to medical applications, ISO 5832-3 may be used. A smooth finish is applied to the outside of the sheets, and they have been rolled, annealed, levelled, and pickled before being supplied. Sheets have also been annealed. With regard to the surface, you have the option of selecting between a polished, machined, or acid-pickled finish. If you make a request for them, you will be able to get complete Mill Test Reports (MTR) that can be traced back to the ingot that was used as supply.

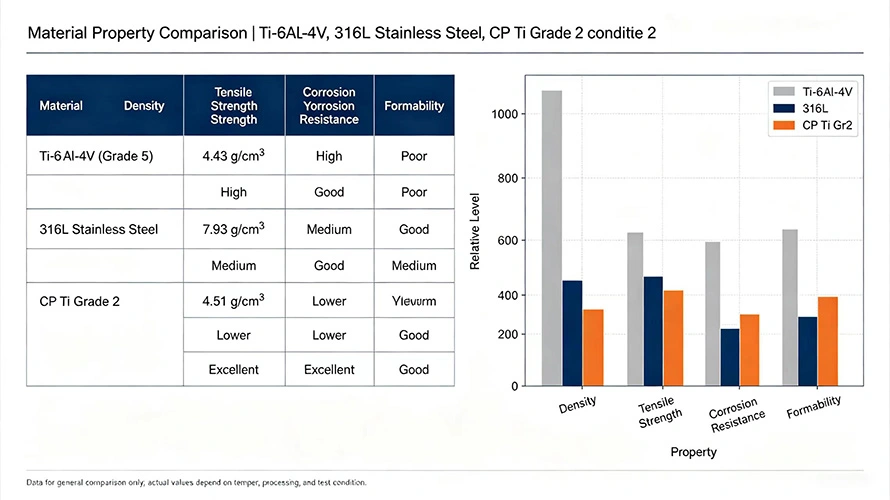

Titanium 6Al4V Sheet vs. Other Materials: Comparative Analysis

Grade 5 vs. Stainless Steel

The tensile strength of stainless steel 316L is about 515 MPa, which is a lot less than the 895 MPa limit for Grade 5 titanium. Even worse, 316L has a density of almost twice that of Ti-6Al-4V, at about 8.0 g/cm³. Even though it costs more per unit, titanium alloy is definitely the better choice for structures in space and tools used offshore where payload economy is important.

Grade 5 vs. Commercially Pure Titanium Grades

Gr1 and Gr2 CP titanium sheets are very easy to shape and don't rust, but their tensile strength is only about 240 to 345 MPa, which is too low for structural loads. A titanium 6al4v sheet fills in this gap by increasing the strength while keeping the good corrosion resistance that CP grades are known for. As the name suggests, Grade 5 is the designed answer that CP grades just can't match for uses that need both qualities.

Grade 5 vs. Other Titanium Alloys

Ti-5Al-2.5V (Grade 6) isn't very strong, but it can be shaped more easily than Grade 5. However, it's not very resistant to high-cycle wear. Grade 9 (Ti-3Al-2.5V) is often used in tubes because it is cheap and easy to weld. Grade 12 is better at resisting corrosion in environments with less acidity. Which one to choose depends on how it will be used. Grade 5 is still the standard for structural, aerospace, and defense uses that need to show proven performance data.

How to Choose the Right Titanium 6Al4V Sheet for Your Business

Match Material Specification to Application Requirements

Set your working temperature, load rates, chemical exposure, and dimensional tolerance needs before you place an order. Parts that support structures in space usually need to be certified by AMS 4911, while parts that cool things down in factories may need to be certified by ASTM B265. Medical OEM buyers should make sure that ISO 5832-3 is followed. When the standard is aligned with the application from the start, there is no need for expensive re-qualification later on in the supply chain.

Evaluate Supplier Qualification Criteria

A reliable Grade 5 titanium sheet supplier should have quality certifications that can be shown, provide traceable MTRs, and show that they have exported to your region before. Check out the supplier's processing skills as well as their product catalog. Your downstream production costs will go down if you can find suppliers who can make parts to your exact measurements and with controlled annealing processes and surface finishes. Jucheng Titanium is based in Baoji, which is known as China's main titanium production center. For more than 20 years, the company has exported titanium products to areas like North America and Europe.

Consider Total Cost of Ownership, Not Unit Price Alone

Sometimes, procurement teams base their decisions only on the price per kilogram, ignoring things like certification fees, re-testing fees, and penalties for being late. The total project economics are usually better when the seller charges a little more per unit but provides full MTR documentation, faster shipping, and expert advice. Instead of just looking at the price of the base material, get quotes that include the cost of surface treatment, packing, and paperwork.

Sizing, Customization, and Availability of Titanium 6Al4V Sheets

Standard Size Range and Tolerances

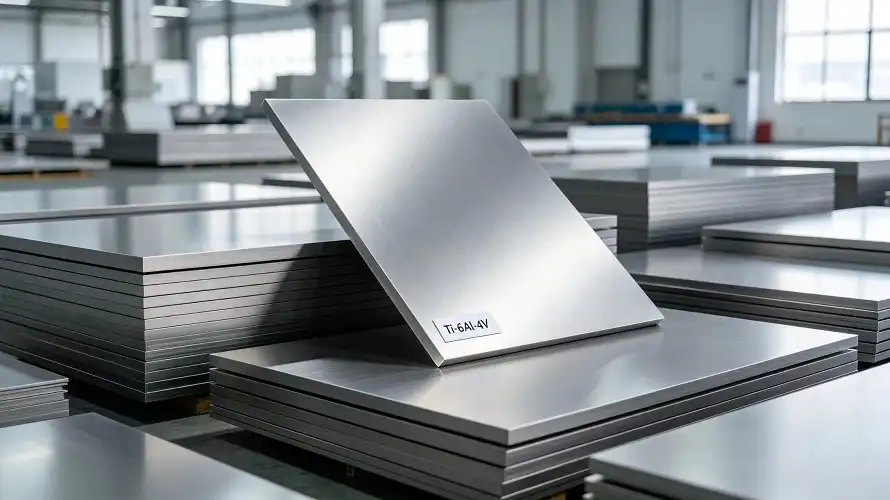

Standard sizes for Grade 5 titanium sheet from Jucheng Titanium are between 4 mm and 80 mm thick, 950 mm to 2,500 mm wide, and up to 10,000 mm long. These measurements are good for most structural, industrial, and fabrication needs. Tolerances are in line with ASTM B265 and AMS 4911 standards, which makes sure that all large orders are the same size.

Customization Options for OEM and Specialty Applications

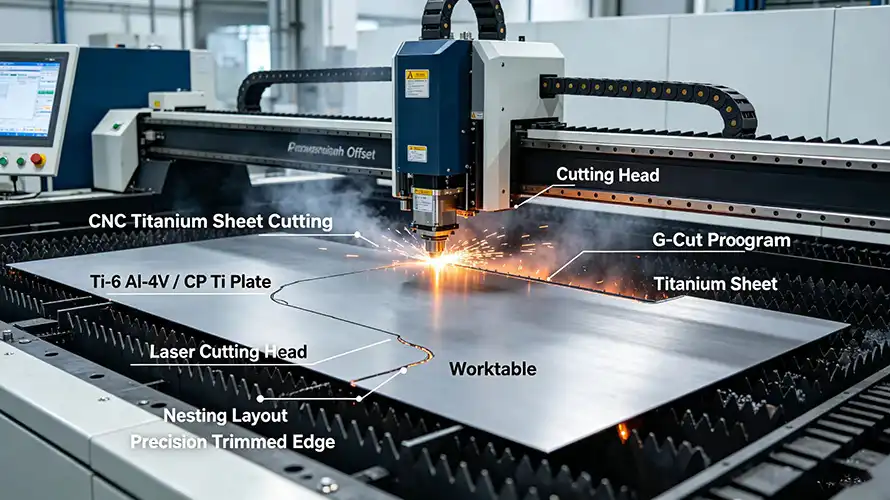

The standard sizes of a titanium 6al4v sheet don't always match up with OEM or project-specific plans. Jucheng Titanium can take special orders with accurate thickness increments, non-standard widths, and needs to be cut to length. Each order can have a different surface finish, such as polished, cut, or acid-pickled. Small-batch custom processing is available with technical support for research institutions or defense contractors who need specifics for experiments.

Inventory Depth and Lead Time Management

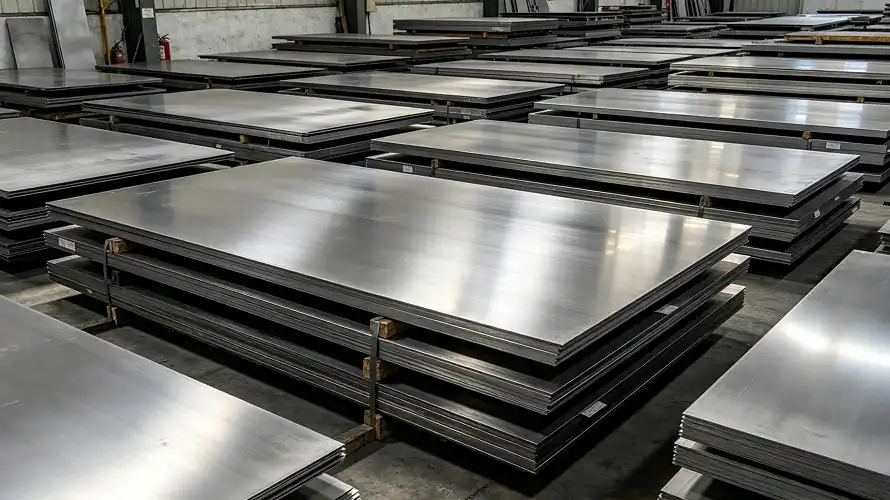

The company Jucheng Titanium maintains a stock of around 3,000 metric tonnes of various forms of titanium throughout the whole year. These grades include Grade 1, Grade 2, Grade 4, Grade 5, Grade 7, Grade 9, and Grade 12. Because of this enormous inventory level, standard specifications may be given out in a short length of time, which significantly reduces the amount of time needed for procurement lead times in comparison to mills that only produce what is requested. In accordance with the regulations governing imports into the United States, customers from other countries may get assistance with export logistics and documentation.

Buying Guide: Price, Suppliers, and How to Place Orders

Understanding Current Pricing Structure

The price of titanium 6al4v sheet varies depending on the thickness of the sheet, the manner in which it is treated on the outside, the quantity of sheets that are requested, and the requirements for certification. The cost of AMS 4911-certified aerospace-grade sheet is more than the cost of industrial ASTM B265 material. This is because the testing and documentation requirements are more stringent. It is common practice to provide volume pricing for transactions that include more than a certain quantity of tonnes. In order to make an informed comparison of rates between different suppliers, you should get full estimates that include a breakdown of the expenses associated with the base material, surface finishing, and documentation.

Ordering Workflow from Inquiry to Delivery

The procedure typically consists of the following steps: sending in technical specifications and standards; obtaining a quotation with a lead time; confirming the order with the documentation that was agreed upon; going through production and quality checks; obtaining a MTR; packaging the item for export; going through the paperwork for international shipping and customs; and ultimately, receiving delivery. Buyers are assisted by Jucheng Titanium at each and every stage of the process. After the delivery of the product, they have staff that are responsible for checking on shipments and providing solutions to any technical concerns that may arise.

Supplier Verification Checklist

Before settling on a choice, it is important to verify the following information with a supplier of Grade 5 titanium sheet. By performing these checks, purchasing teams are protected from the possibility of having to deal with major nonconformance and approval failures:

• The documents required by a valid certification authority (such as ASTM, AMS, ASME, or ISO compliance)
• MTRs that may be traced and that reference the heat number and the ingot source
• A demonstrated history of exporting to the area you are targeting
• Minimum order quantity (MOQ) and lead time obligations for each order that is defined
• There is availability of technical help for queries about specifications.

Each of the aforementioned elements immediately reduces the risk that is present in the supply chain and generates trust, both of which are essential for the development of long-term strategic partnerships.

Conclusion

To choose the right titanium 6al4v sheet, you need to make sure that the chemical grade, mechanical properties, size requirements, and approval standards are all right for the job. Grade 5 (Ti-6Al-4V) is still the best titanium metal for most structural, aircraft, and industrial uses. However, Gr2, Gr7, Gr9, and Gr12 each have their own specific uses. Getting from a supplier with production experience, a large inventory, and certification paperwork that can be tracked lowers the risk of the project and the total cost of procurement. The best thing a procurement team can do is take the time to check the qualifications of suppliers before making orders.

Frequently Asked Questions

1. What is the difference between Grade 5 and Grade 23 titanium sheet?

Grade 23 (Ti-6Al-4V ELI) is an Extra Low Interstitial variant with reduced oxygen and iron content. This lowers interstitial contamination and produces superior fracture toughness and ductility, making it the preferred choice for fracture-critical implants and aerospace components. Standard Grade 5 meets most structural and industrial requirements at a lower cost, while Grade 23 is reserved for applications where crack propagation resistance is a primary design criterion.

2. Can titanium 6Al4V sheet be cold-formed or bent?

Grade 5 has high spring-back and limited elongation compared to CP grades. Cold bending is possible but requires a minimum bend radius of 3T to 6T depending on sheet thickness. Tight-radius bends generally require hot forming or intermediate annealing to avoid cracking. Procurement teams should confirm forming requirements with their fabricator before finalizing thickness and temper specifications.

3. What certifications should a Grade 5 sheet supplier provide?

At minimum, expect ASTM B265 or AMS 4911 compliance documentation, a traceable Mill Test Report referencing the heat number, and confirmation of heat treatment condition (annealed). Aerospace and defense buyers may additionally require first-article inspection reports or specific customer-directed testing protocols.

4. What is the maximum service temperature for this alloy?

Ti-6Al-4V retains adequate strength and oxidation resistance up to approximately 400°C (750°F). Beyond this threshold, oxidation accelerates and creep resistance decreases. Applications above 400°C require near-alpha alloys designed specifically for elevated-temperature service.

Request a Quote from Jucheng Titanium — Grade 5 Sheet Supplier

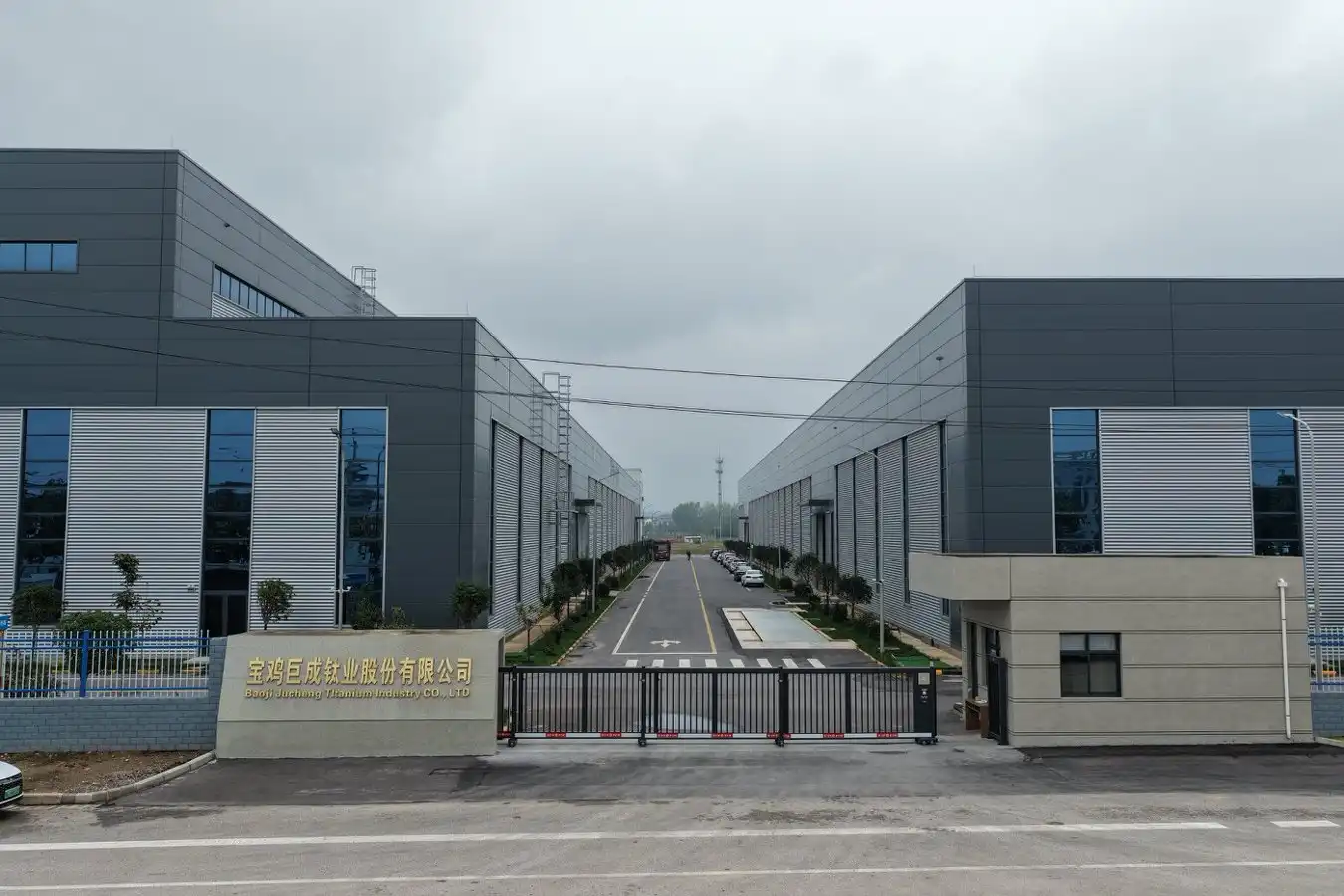

For more than 20 years, Jucheng Titanium has sold certified titanium 6al4v sheet to chemical, aerospace, and industrial users in North America and around the world. We have 3,000 tons of stock, can make custom sizes from 4 mm to 80 mm thick, and provide full ASTM B265/AMS 4911 paperwork, so we can give buying teams exactly what they need. To get pricing and specifications, please email our technical team at s4@juchengti.com.

References

1. ASTM International. ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International, 2020.

2. SAE International. AMS 4911: Titanium Alloy Sheet, Strip, and Plate, 6Al-4V, Annealed. SAE International, 2015.

3. Leyens, C., & Peters, M. (Eds.). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH, 2003.

4. Boyer, R., Welsch, G., & Collings, E. W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.

5. Donachie, M. J. Titanium: A Technical Guide (2nd ed.). ASM International, 2000.

6. ASME. ASME SB-265: Titanium and Titanium Alloy Strip, Sheet, and Plate. American Society of Mechanical Engineers, 2021.
