How to Choose CP Grade 3 Titanium Sheet for Industrial Use
Choosing the right titanium sheet for your project is not always straightforward. If you need a material stronger than Grade 2 but do not want the high cost or limited formability of Ti-6Al-4V, a CP grade 3 titanium sheet sits in exactly that performance gap. Defined under UNS R50550 and manufactured to ASTM B265 and ASME SB-265, it delivers a minimum yield strength of 380 MPa (55 ksi) and tensile strength of 450 MPa (65 ksi), while keeping density at just 4.51 g/cm³. This guide walks you through everything you need to evaluate before placing an order.
Understanding CP Grade 3 Titanium Sheet: Properties and Industry Applications
What Makes Grade 3 Distinct Among CP Titanium Grades

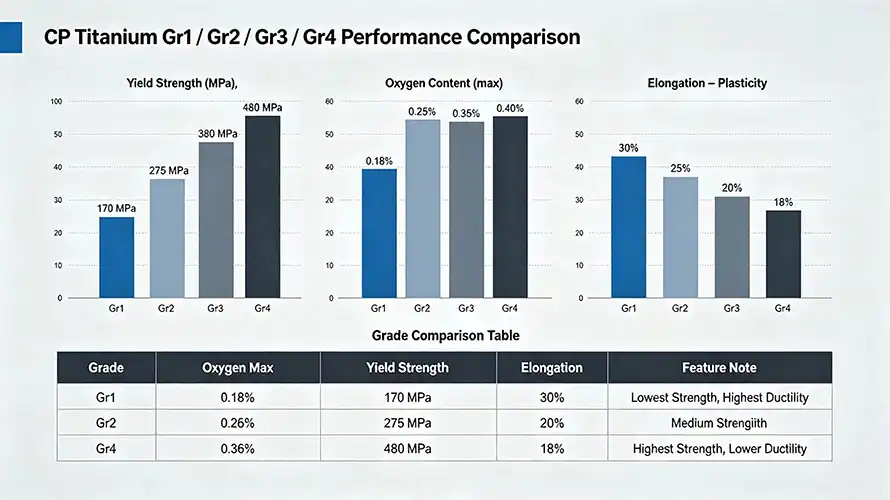

Titanium that is sold in stores comes in four grades, named Gr1 through Gr4, which are ordered by how much oxygen and iron they contain. The third grade is in the middle. It is stronger than grades 1 and 2, but more flexible than grade 4. Its small amount of oxygen (0.35%) works as an interstitial strengthener, making it stronger without adding any alloying. Elongation stays at least 18%, which means that the sheet can still be bent and shaped without cracking when it is being made normally.
Chemical Composition at a Glance
The ASTM B265 standard has strict rules about the chemistry of titanium sheet that is not alloyed. There can be no more than 0.05% nitrogen, 0.08% carbon, 0.015 percent hydrogen, 0.3 percent iron, and 0.3 percent oxygen in Grade 3. Because it doesn't have any aluminum or vanadium added to it, it keeps all of the corrosion resistance of commercially pure titanium in nitric acid, chlorine gas, and seawater, which are all hot and acidic.
Typical Industrial Sectors
Grade 3 sheet shows up in a number of difficult fields. It lines the walls of pressure vessels and the tubes in shell-and-tube heat exchangers that work above the safe pressure ceiling of Grade 2 in chemical processing. It doesn't corrode in cracks up to 80 °C in saltwater ballast systems and desalination pipes used in naval engineering. In aircraft, it protects fuselage skins and firewalls in warm structural zones up to about 425 °C, where airworthiness rules require modest strength and full resistance to oxidation.
Key Criteria for Selecting Grade 3 Titanium Sheet for Industrial Use
Match Mechanical Requirements to Grade Capability
Compare your design loads to minimums that have already been published before you choose a titanium plate. Grade 3 has a yield strength of 380 MPa and a tensile strength of 450 MPa. If the wall stress you calculate is less than 275 MPa, Grade 2 will work and will cost less. Ti-6Al-4V (Grade 5) is the right choice if the fatigue loading is more than 450 MPa. Grade 3 is the most cost-effective choice for moderate-pressure chemical tanks and structure skins. It lies between Grades 2 and 3.
Verify Size Tolerance and Surface Condition

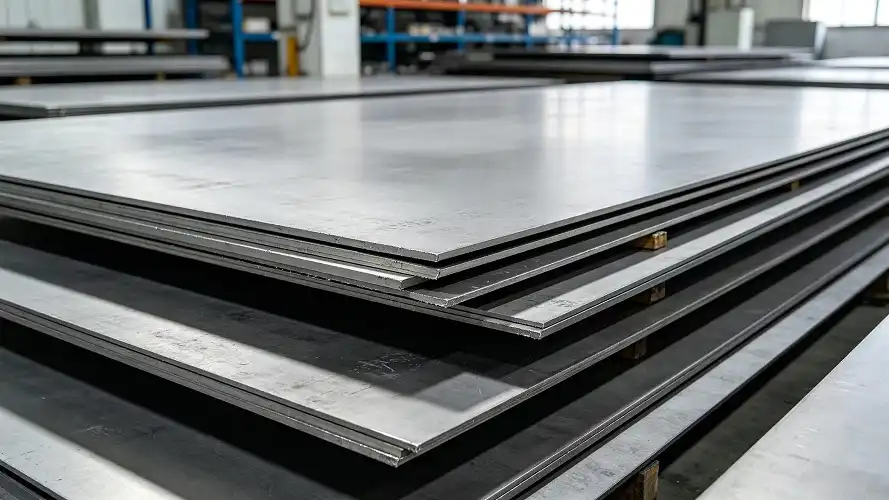

When buying things for industry, it's almost always necessary to compare the tolerances for dimensions to the process drawings for CP grade 3 titanium sheet. Hot-rolled Grade 3 sheet comes in thicknesses ranging from 4 mm to 80 mm, widths ranging from 950 mm to 2500 mm, and lengths up to 10,000 mm. It can also be cut to fit your needs. It is annealed in the normal stock state. Acid pickling (descaling), polishing, and machined finishing are all surface processes that can be done. The acid-pickled state meets the ASTM B265 finish standards for most pressure equipment and gets rid of the alpha-case that forms during heating.
Confirm Applicable Standards and Certifications

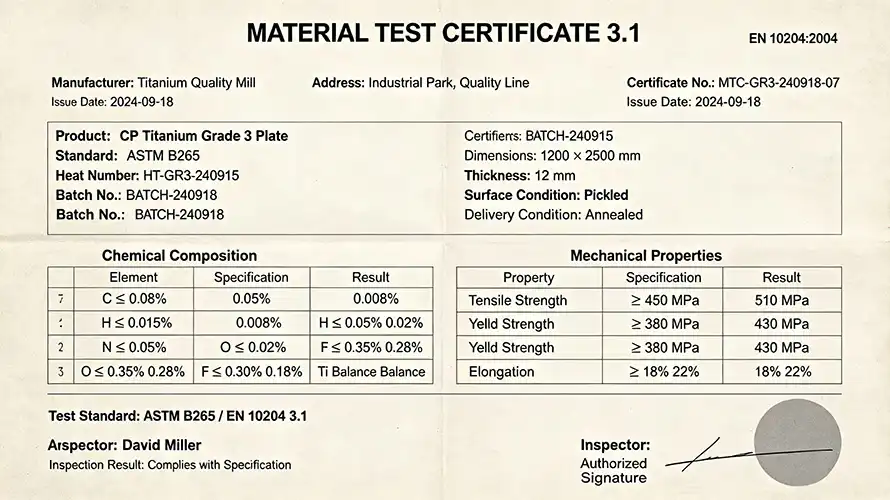

Specification fulfillment is a must in the chemical, medical, and aircraft industries. You can use ASTM B265, ASME SB-265, AMS 4911, or ASTM F67 to find Grade 3 titanium sheet. There should be an EN 10204 3.1 mill certificate with every heat shipment that lists the chemical analysis (ICP or IGAS method), mechanical test results (ASTM E8 tensile and ASTM E290 bend), and ultrasonic inspection data per AMS 2631 for plates that are thicker than a certain thickness. Grade mix-ups on the shop floor can't happen when you can track the plate from melt to finished plate.
Comparing CP Grade 3 Titanium Sheet with Alternatives: Making an Informed Decision
Grade 3 vs. Grade 2: When the Upgrade Pays Off
Grade 2 titanium is the most prevalent form of titanium that is used in commercial applications, and it has a somewhat lower price per kilogram on average. However, due to the fact that its yield strength is lower (at least 275 MPa), it requires larger wall sections in pressure design, which eliminates the weight savings resulting from the design. In the event that a process tank wall estimate requires more than 275 MPa but alloys cannot be utilised due to the presence of corrosive environments, engineers have the ability to specify Grade 3 and reduce plate thickness by 15–25%. This results in a reduction in both the amount of material weight and the amount of time required for construction.

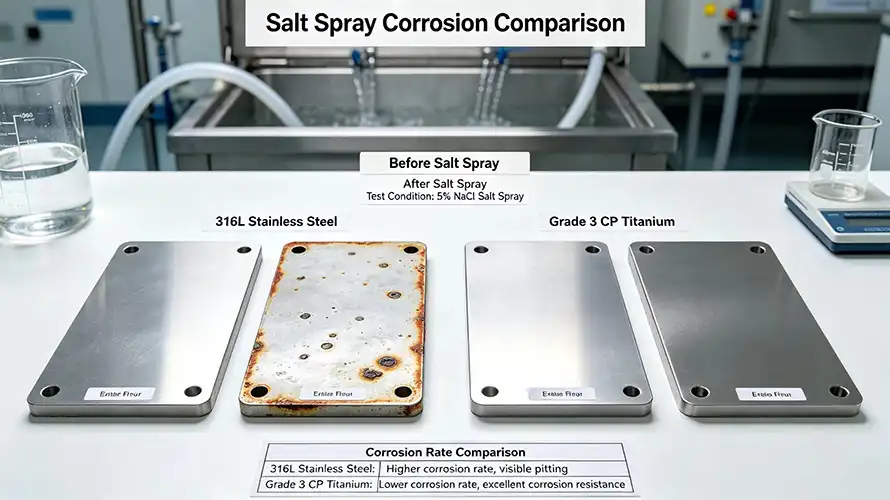

Grade 3 vs. 316L Stainless Steel: Lifecycle Cost Reality
In many cases, consumers choose 316L stainless steel only on the basis of its low price; but, after just a few years of usage, it pits and fractures fast in situations that are high in chloride or oxidizing acid. Titanium of grade 3 does not break in any of the instances described. When a lifetime cost model is used, titanium always comes out on top over 10 to 15 years of severe chemical service. This is because the model takes into consideration the frequency with which parts need to be replaced, the amount of money it costs to have them taken apart, and the amount of money it costs to mend welds.
Grade 3 vs. Grade 5 (Ti-6Al-4V): Formability and Cost Trade-Off
Despite the fact that it is much more costly and must be hot-formed at very high temperatures, Ti-6Al-4V has a yield strength that is nearly twice as high as that of Grade 3. Not only does Grade 3 reduce the cost of materials, but it also makes it simpler to manufacture components that can be cold-formed and do not need to be able to sustain strong loads. In contrast to Grade 2, cold forming requires a greater amount of tooling power and corrections for over-bending in order to prevent spring-back. On the other hand, the procedure may still be carried out with the conventional press-brake equipment.
How to Procure CP Grade 3 Titanium Sheet Efficiently
Identify a Certified, Experienced Supplier
As important as material specifications are, so is the qualification of the supplier for CP grade 3 titanium sheet. Look for manufacturers that have foreign certifications, a history of exporting, and can provide full paperwork for tracking. Jucheng Titanium has been handling titanium for more than 20 years. It was formed in 2004 and went public on China's National Equities Exchange and Quotations in 2017. The company has 4 invention patents and 41 utility model patents. It keeps about 3,000 tons of titanium on hand all year and ships Grade 3 sheet to customers in North America and Europe who work in aerospace, chemicals, and industry.
Navigate the Ordering Process Clearly
Send a detailed inquiry about the titanium sheet, including the thickness, width, length, standard, surface finish, and certifications that are needed. Agree on the minimum order quantity and lead time. Look over the mill certificate before sending it out. Arrange for a third-party inspection if your quality system needs it. Jucheng Titanium works with wholesalers who need specific packing or branding for selling in their own country because they can accept unique specs and do OEM/ODM work.
Quality Verification Before Acceptance

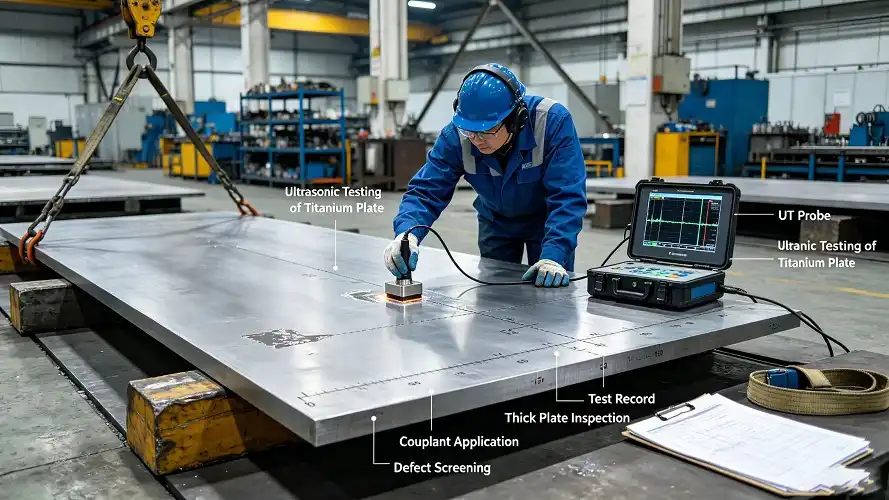

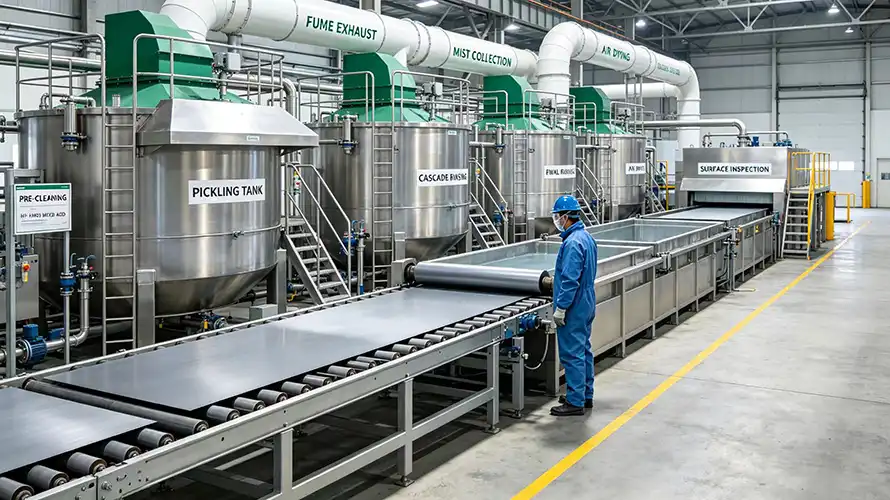

Before accepting any plate delivery, make sure the following inspections are complete: a chemical test that shows oxygen levels below 0.35% and iron levels below 0.30%; tensile and bend test results according to ASTM E8 and ASTM E290; pickling to show that the surface is free of alpha-case; and ultrasonic scan records for thicker sections. These checks make sure that your quality management system is up to code and protect the manufacturing process that comes after.
Best Practices and Case Studies: Successful Industrial Applications of Grade 3 Titanium Sheet
Chemical Processing: Pressure Vessel Lining Upgrade

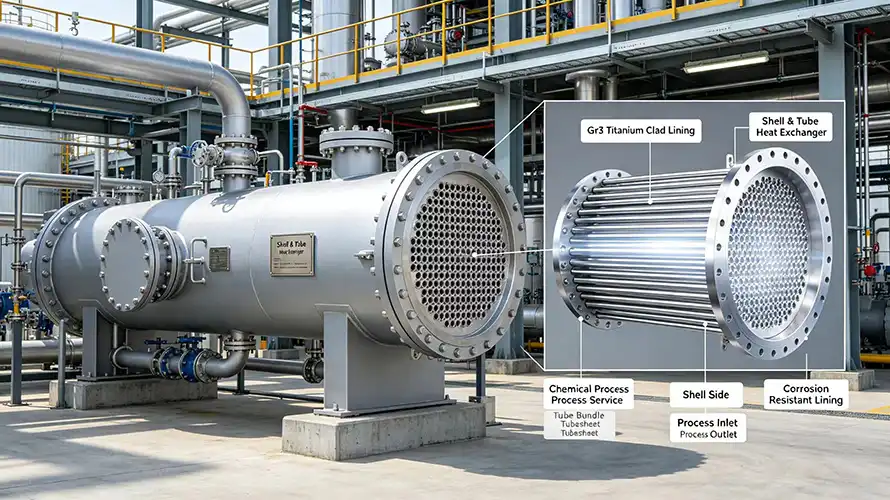

In a nitric acid heat exchanger on the Gulf Coast, a petroleum worker switched out the 316L stainless steel tube sheets for Grade 3 titanium plate. Within 18 months of being put into service, the first steel units needed two weld repairs because of intergranular attack. The titanium replacement worked for more than four years without any upkeep. This cut the cost of repairs by about 60% each year and got rid of the unexpected downtime that was costing the plant several production days each year.
Aerospace: Firewall Panel Fabrication

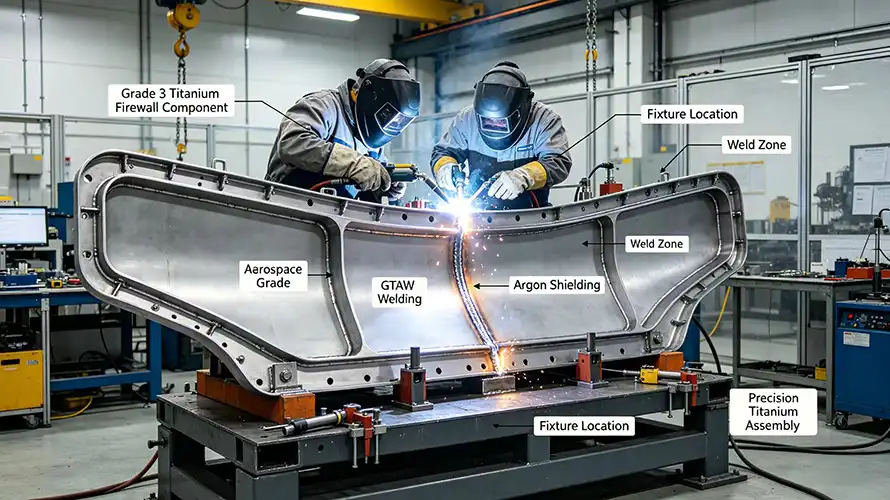

A company that makes parts for airplanes needed to find material for firewall panels. They needed a sheet that could stand up to 400 °C of continuous exposure, meet FAA requirements for oxidation resistance, and be cold-formed on existing tools without cracking. All three conditions were met by a 4 mm thick grade 3 titanium sheet. The manufacturing team used ERTi-3 filler wire for GTAW joints and got weld strengths that were the same as the base metal. This met the standards of the ASME design code without the need for a post-weld heat treatment.
Key Takeaways for Procurement Managers
Both of these cases show the same sort of thing: Grade 3 titanium is more expensive than stainless steel because it lasts longer and needs less maintenance in harsh environments with high temperatures or corrosion. Choose Grade 3 if the area has chlorides, acids, or high temperatures that last for a long time, and the design pressure is higher than what Grade 2 can handle at a good wall thickness.
Conclusion
To choose the right grade of titanium sheet, you need to compare what each grade actually offers to your mechanical needs, the environment, and your budget. CP grade 3 titanium sheet fits into a clear performance range. It is harder than Grade 2, easier to shape than Grade 4, and much better at resisting rust in harsh environments than stainless steel. You can make sure your project has a long, low-maintenance life by checking the chemistry, making sure the certifications are valid, making sure the size fits your process, and working with a seller who can provide full tracking.
Frequently Asked Questions
1. Is Grade 3 titanium sheet compatible with cold-forming processes?
Yes, but it requires higher tooling force than Grade 2 because of elevated oxygen content. You will need to compensate for greater spring-back by adjusting your over-bend angle during press-brake operations.
2. What filler wire should I use when welding Grade 3 sheet?
Use ERTi-3 matching filler wire for GTAW or PAW processes to maintain base-metal strength across the weld zone. ERTi-2 filler is technically possible but produces an under-matched weld that may violate ASME vessel design codes.
3. Does Grade 3 titanium sheet require post-weld heat treatment?
Generally, no. CP titanium grades are used in the as-welded condition. If the sheet has undergone severe cold working before welding in a stress-corrosion environment, a stress-relief anneal at 538 °C–595 °C for 30 minutes is recommended.
4. What is the maximum service temperature?
Continuous service is safe up to approximately 425 °C (800 °F). Above that threshold, oxygen diffusion forms a brittle alpha-case layer that reduces fatigue life and ductility significantly.
Request a Quote from Jucheng Titanium — Your Trusted CP Grade 3 Titanium Sheet Supplier
For over 20 years, Jucheng Titanium has sold certified CP grade 3 titanium sheet from Baoji, China's Titanium Valley, to companies in the chemical, aircraft, and industrial sectors. We ship to the US and other countries as well. We keep 3,000 tons of stock on hand, can make special sizes from 4 mm to 80 mm thick, and have full ASTM B265, AMS 4911, and ASME SB-265 paperwork. To get a competitive quote right away, email our team at s4@juchengti.com.
References
1. ASTM International. ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International, 2021.
2. ASTM International. ASTM F67: Standard Specification for Unalloyed Titanium for Surgical Implant Applications. ASTM International, 2019.
3. SAE International. AMS 4911: Titanium Alloy Sheet, Strip, and Plate. SAE International, 2020.
4. ASM International. Titanium: A Technical Guide, 2nd ed. ASM International, 2000.
5. Donachie, M. J. Titanium: A Technical Guide. ASM International, 2000.
6. Boyer, R., Welsch, G., & Collings, E. W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.
