Titanium Sheet AMS4900 vs Commercial Grades: What Is the Difference?
When sourcing titanium materials for aerospace, defense, or high-performance industrial applications, understanding the distinction between titanium sheet AMS4900 and standard commercial grades becomes essential. AMS4900 refers to commercially pure (CP) titanium meeting specific aerospace material specifications, predominantly Grade 2, characterized by lower oxygen content and tighter compositional tolerances than typical industrial grades. Commercial titanium grades, governed by ASTM B265, offer broader chemical ranges suited for general corrosion-resistant applications but lack the precision certification and mechanical consistency demanded by aerospace contractors and OEM manufacturers.
Understanding AMS4900 Titanium Sheet: Properties and Composition
Titanium sheet AMS4900 specifies the requirements for unalloyed titanium sheet, strip, and plate that are mostly used in aerospace structures that need to be strong but not too strong. The standard calls for tight control over oxygen, nitrogen, and iron in the interstitial space, which have a direct effect on how flexible and tough the material is to break. The amount of oxygen in titanium sheet AMS4900 is usually less than 0.25%. In commercial Grade 2, oxygen levels can reach 0.35%. This might not seem like a big deal, but it means that the material is easier to bend and there is a lower chance of microcracking during cold forming.
Chemical Composition and Manufacturing Standards

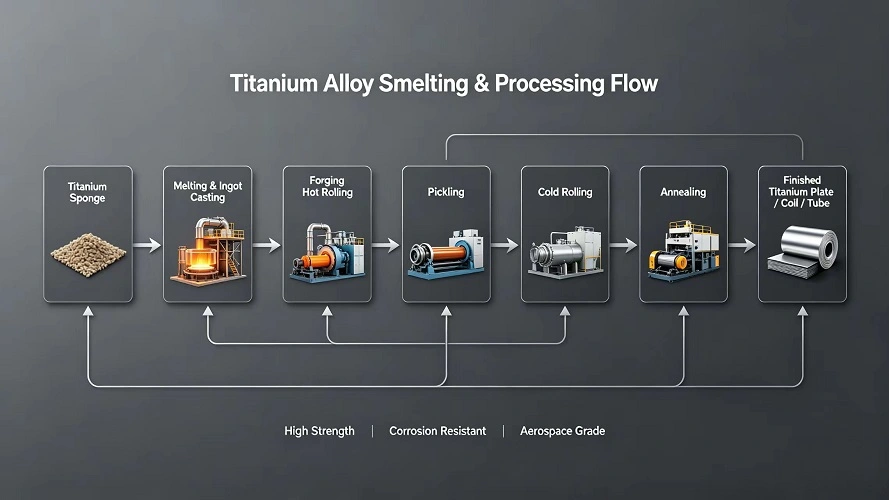

At Jucheng Titanium, we strictly follow vacuum arc remelting (VAR) methods during production. These are followed by cycles of hot rolling and annealing to make sure that the microstructures are all the same. Spectrometry and LECO fusion analysis are used to check that the titanium is more than 99.1% pure, with no more than 0.20% iron and less than 0.08% carbon. It is possible to make the sheets in thicknesses from 4mm to 80mm, widths from 950mm to 2500mm, lengths up to 10,000mm, or in any other size that the project requires. Acid pickling, polishing, and cutting are some of the surface processes used to get rid of alpha case, which is a thin layer of oxygen that can make the metal harder to shape and shorten the life of stamp dies.
Mechanical Properties and Performance

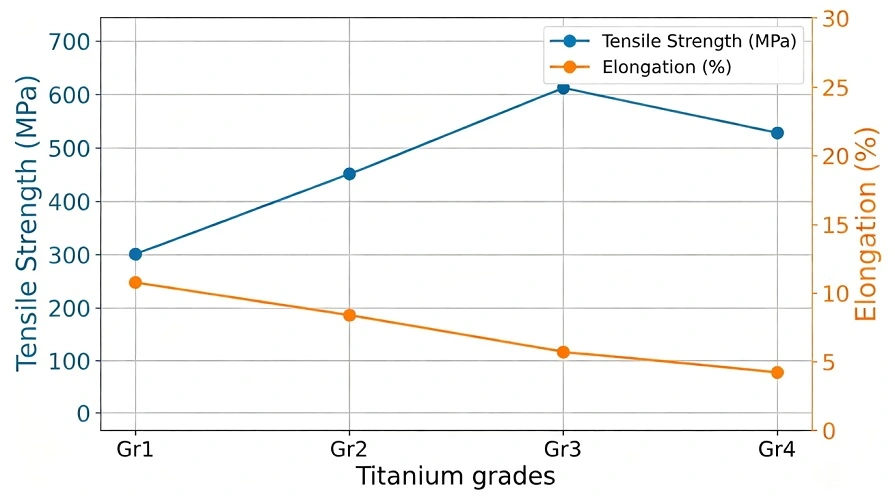

The tensile strength of titanium sheet AMS4900 material is usually between 345 and 550 MPa, and its stretch value is more than 20%, which makes it flexible enough for complicated shaping operations. The ideal range for yield strength is between 240 and 380 MPa. This gives the material a good yield-to-tensile ratio that makes it easier to shape without compromising its structural integrity. The annealed state makes sure that the grain structure is uniform and reduces residual stress, which stops spring-back problems during fabrication. For parts that are used in environments where temperatures change often, heat treatment methods like stress-relief annealing at 540–650°C make them even more mechanically stable.
Corrosion Resistance in Harsh Environments

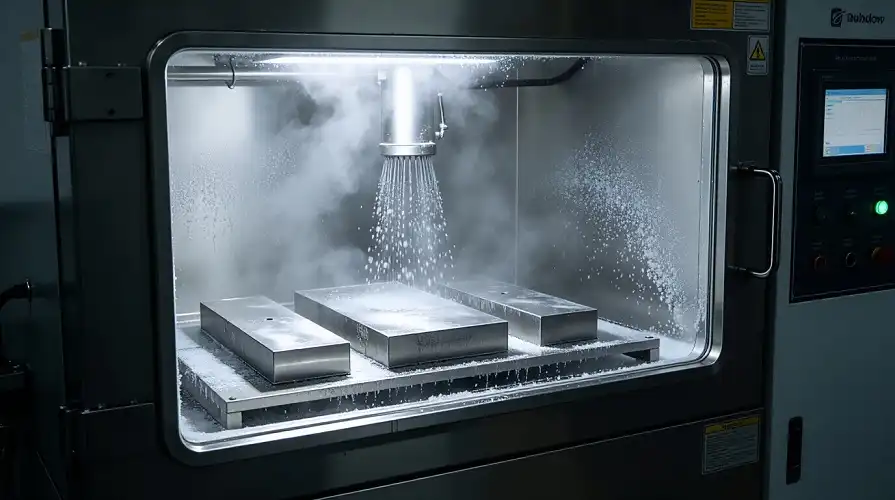

Titanium's natural oxide layer makes it very resistant to pitting, crevice corrosion, and stress-corrosion cracks that are caused by chlorides. Up to mild temperatures, titanium sheet AMS4900-grade sheets stay passive in seawater, weak acids, and oxidizing media. In applications where long-term dependability is important, like aircraft shields, chemical heat transfer plates, and desalination equipment, this material is a must. The controlled interstitial material in titanium sheet AMS4900 keeps the oxide stable even when it is mechanically worn down, which means it lasts longer than most industrial grades.

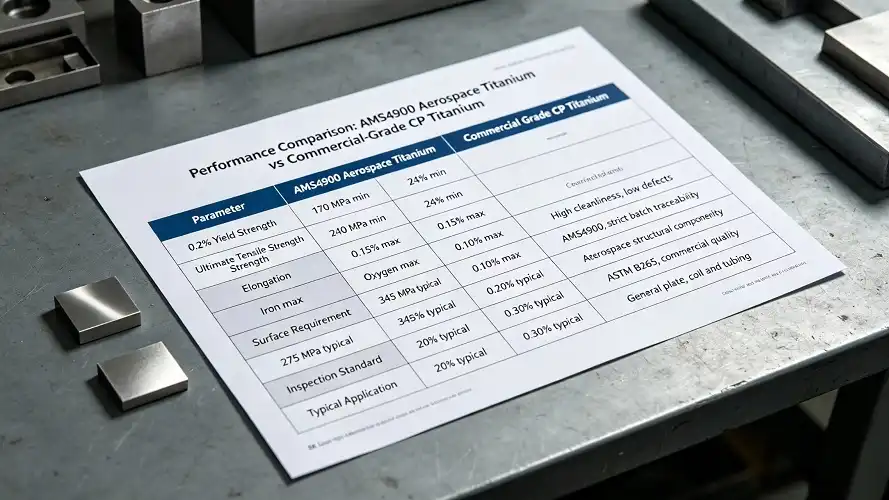

Comparing AMS4900 with Commercial Titanium Grades
To tell titanium sheet AMS4900 from commercial titanium sheets, you have to look at the exact makeup, the certification standards, and the seriousness of the task you want to use it for. Both are based on ASTM B265, but titanium sheet AMS4900 has stricter quality controls that are designed to make sure that aerospace products can be tracked and perform consistently.
Key Differences in Strength and Fatigue Resistance
Commercial Grade 2 titanium (ASTM B265) has a standard makeup that is close to titanium sheet AMS4900. However, it allows wider tolerance bands for iron and oxygen. This can lead to differences between batches, which can shorten the fatigue life in situations with repeated loading. Extra mechanical tests are done on titanium sheet AMS4900 material, such as tensile tests at room temperature and higher temperatures, bend tests according to AMS 2631, and ultrasound inspection to find internal cracks. These thorough tests make sure that parts work as expected when they are under dynamic stress, which is very important for parts that support airplanes and machines that spin.
Grade 5 titanium alloy (Ti-6Al-4V), which is governed by AMS 4911, is stronger than titanium sheet AMS4900 (ultimate tensile strength of about 895 MPa), but it is harder to shape. For jobs that need the highest strength-to-weight ratios, like landing gear parts and turbine blades, Grade 5 is the best option. On the other hand, titanium sheet AMS4900 is still the best choice for jobs that need to be able to be welded, prevent rust, and be made with complex shapes.
Procurement Factors: Pricing, Lead Times, and Availability
Teams in charge of buying things must weigh the higher cost of titanium sheet AMS4900-certified materials against the guarantee that they will work well. Because of better quality control, full material traceability documentation (including heat lot numbers and Mill Test Reports per EN 10204 3.1), and certification compliance, titanium sheet AMS4900 usually costs 15–25% more than commercial Grade 2 sheets of the same thickness. Lead times for titanium sheet AMS4900 materials are usually between 8 and 12 weeks when they come from certified suppliers who keep stock and can process them.

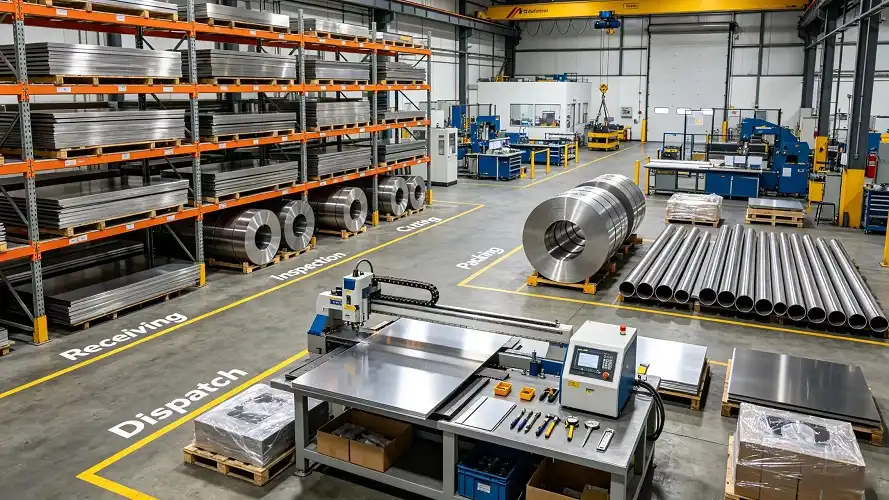

At Jucheng Titanium, we keep about 3,000 tons of titanium products in stock all year long, so we can quickly finish jobs that need to be done right away. We have different grades in stock, such as Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, and Gr12. These grades have been rolled, annealed, leveled, and given a smooth finish to meet ASTM B265, ASTM F67, AMS 4911, and ASME SB265 standards. Custom cutting services let buyers order specific sizes without having to buy whole coils. This makes better use of materials and cuts down on waste.
For thorough quotes, material certifications, and advice on your next titanium purchase project, email our technical sales experts at s4@juchengti.com. Jucheng Titanium gives you the quality assurance, tracking paperwork, and customer support your important applications need, whether you're looking for small numbers for a sample or long-term supply deals.
Making the Right Choice: When to Use AMS4900 over Commercial Grades
Titanium sheet AMS4900 or commercial-grade titanium should be chosen based on how important the application is, what the rules say, and the performance gaps. Aerospace and defense companies have to follow strict airworthiness guidelines that require full material traceability and approval. For structural parts that are exposed to flight loads and harsh environmental conditions, titanium sheet AMS4900 is a must.
Strategic Advantages in Critical Applications
The controlled interstitial chemistry of titanium sheet AMS4900 makes it easier to weld, which is very important for putting together complicated aircraft parts that need leak-tight joints and welds that don't wear. Because the material's mechanical properties are always the same, engineering estimates are less likely to be off. This lets designers cut down on safety factors and save weight without sacrificing structural integrity. When our aerospace clients move from commercial to titanium sheet AMS4900-grade sheets, the number of parts that are rejected during quality checks goes down by a lot. This directly lowers production costs and schedule risks.
Better control of makeup also helps corrosion work better in chemical and sea settings. When titanium sheet AMS4900 sheets are exposed to saltwater spray or chlorinated process streams, they last longer between service intervals than industrial grades. This means less downtime for upkeep and lower costs over the life of the product. Palladium-enhanced versions, like Grade 7, make corrosion resistance even better in reducing acid conditions. They are widely used in filtration systems and hydrometallurgical reactors.
Limitations of Commercial Grades in Advanced Industries
Commercial-grade titanium sheets are good for non-critical uses like building cladding, recreational equipment, and general chemical processing where small differences in the material don't pose much of a risk. Broader tolerance bands on oxygen and iron content make forming operations less predictable, which can sometimes lead to localized necking or surface cracking during deep drawing. Without required ultrasonic testing, possible internal flaws go unnoticed, leaving safety-critical parts open to liability.
Another problem is that there are gaps in certification. When commercial material is shipped, it usually only has a basic chemical analysis. It doesn't have the full mechanical testing and traceability documentation that aerospace OEMs need to comply with regulations. This means that procurement teams have to do more research in-house, which adds to costs and wait times and could cause delays in the supply chain.
Procurement Considerations for AMS4900 Titanium Sheets
To find good titanium sheet AMS4900s, you need to work with providers who can show they have experience in the aerospace industry, follow all certification rules, and offer quick expert help. Strategies for buying things should give more weight to sellers with ISO 9001 and AS9100 standards, which show that they have quality management systems that are in line with what the aerospace industry expects.
Selecting Certified Suppliers

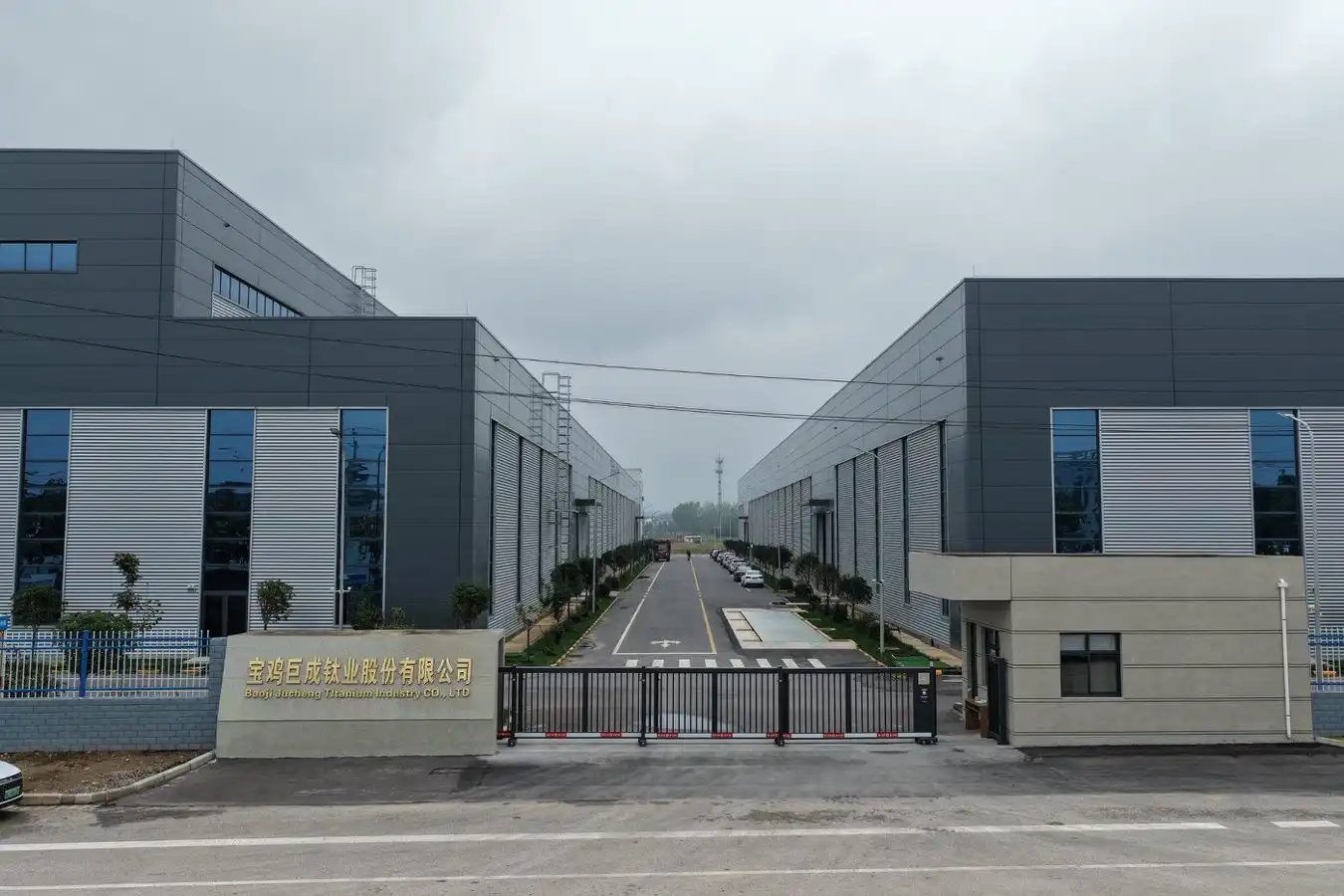

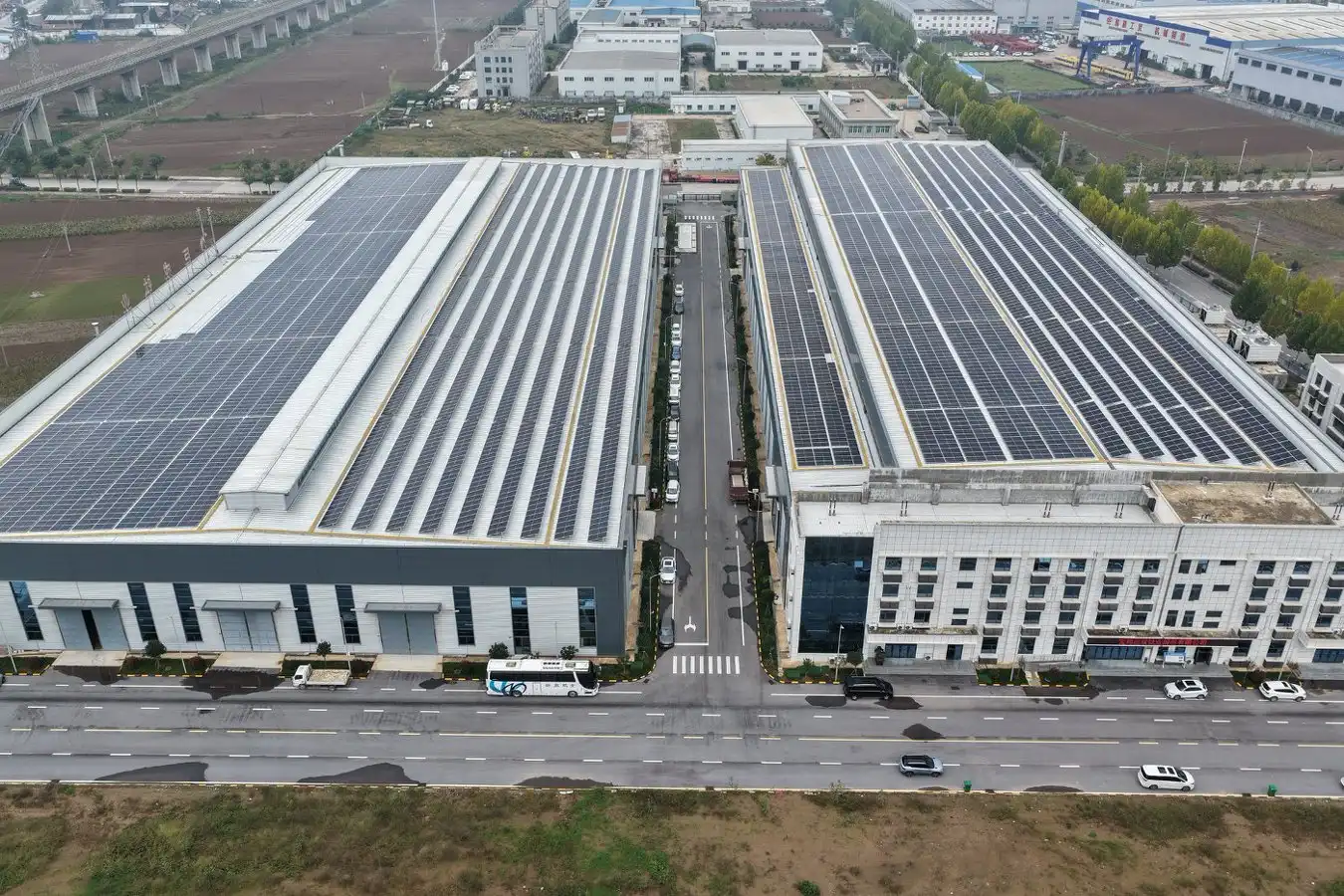

Jucheng Titanium is a National High-Tech Enterprise based in Baoji, China's Titanium Valley. We have been in the titanium business for more than 20 years. We have 4 idea patents and 41 utility model patents that cover all of our product lines. This has helped us become known as a new "little giant" business on a national level. Our factory covers 120,000 square meters and has a registered capital of 50 million RMB. Each year, we make over 500 sets of titanium equipment and 1,500 tons of titanium anode plates. Deep relationships with the Northwest Institute for Nonferrous Metal Research, Tsinghua University, and Northwest University make it possible to keep coming up with new ways to handle titanium and make sure they work technically.
When buyers buy from certified manufacturers, they can fully track the materials they receive, including keeping track of the heat lots, checking the chemicals' make-up at certified labs, and getting documentation on the mechanical properties that meet the needs of aerospace prime contractors. Every shipment comes with one of our Mill Test Reports. This clears up any questions that may come up during arrival checks and speeds up the release of materials into production.
Minimum Order Quantities and Custom Services
To cut down on waste and improve the flow of fabrication, many aerospace projects need titanium sheet AMS4900s to be a certain size. We offer custom cutting services with minimum order sizes as low as 100 kilos, which works for both making prototypes and starting production at a low rate. Thicknesses range from 4mm to 80mm, widths from 950mm to 2500mm, and lengths of up to 10,000mm are all standard sizes. Tighter specs can be requested. Custom surface processes, such as polished, machined, or acid-pickled finishes, make sure that the part can be used with subsequent coating, welding, or gluing steps.
Negotiating favorable pricing requires understanding market dynamics and supplier cost structures. Titanium raw material prices change based on how much sponge titanium is available and how demand is changing around the world. Framework agreements with annual volume commitments help procurement teams lock in stable prices and make sure there is a steady supply of goods. Our technical sales team gives clear breakdowns of costs and value engineering suggestions to help you choose the best materials without sacrificing performance.
Risks and Best Practices When Switching from Commercial Grades to AMS4900
Switching from market options to titanium sheet AMS4900 needs to be carefully planned so that production doesn't stop and quality problems don't happen by accident. If you don't account for changes in mechanical properties or forget about certification standards, you could end up with expensive repairs and program delays.
Common Misconceptions and Technical Validation
Sometimes, procurement teams think that because commercial and titanium sheet AMS4900 materials have the same chemical makeup, they will work just as well as each other. Small differences in the amount of oxygen in the metal, the size of the grains, and the residual stress have a big effect on how it forms and how well it welds. Before starting full-scale production, test fabrication runs with real stock to make sure that tooling sets, forming settings, and weld plans are correct. During the qualification steps, our engineering team works with clients to make the transfer as smooth as possible by giving them data on how the material is characterized and processing suggestions.
When current suppliers don't have the aerospace certification or processing skills to meet titanium sheet AMS4900 standards, it makes the supply chain more complicated. It takes between 6 and 12 months to qualify new suppliers by checking their quality systems, testing methods, and material traceability protocols. Parallel sourcing strategies lower risk by using multiple certified sources and keeping commercial-grade copies of parts that aren't essential.
Establishing Robust Material Selection Protocols

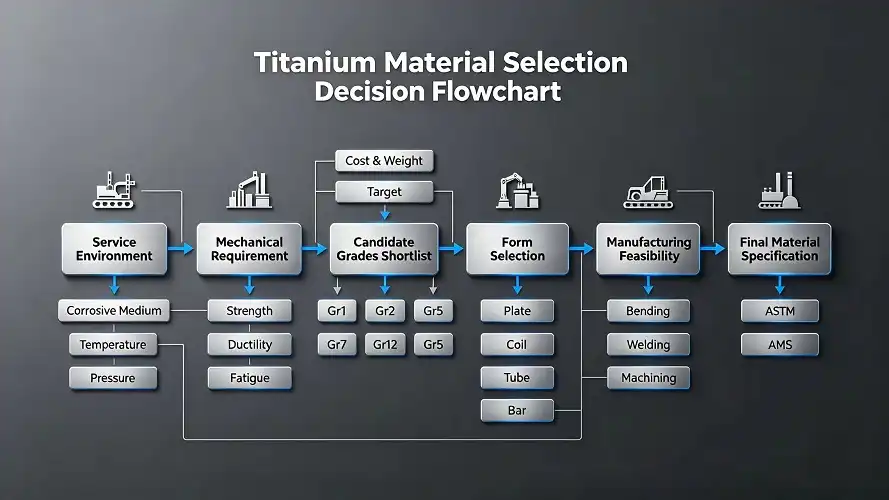

Engineering teams should come up with clear factors for choosing materials that are in line with how important the application is and what the rules say. Decision models that include strength needs, rust exposure, temperature profiles, and weldability needs help choose the right grade without making it too specific. Engineering, procurement, and quality management parties can have well-informed trade-off talks when they use detailed data sheets that compare the features of titanium sheet AMS4900 to market grades.
Aligning purchasing decisions with long-term supplier relationships makes it easier for people to work together and get technical help. The research and development (R&D) and quality inspection teams at Jucheng Titanium work closely with customers to solve specific problems. For example, they may need to find the best bend radius for a complicated shape or adjust the melting processes to meet specific hardness goals. Our after-sales service team makes sure that customers always have help, looks into any serious performance issues, and takes steps to fix them so that customers are happy.
Conclusion
Precision in composition, strict certification, and application-specific performance requirements are what set titanium sheet AMS4900 apart from commercial grades. The aerospace and defense industries need traceability, mechanical stability, and quality assurance. Titanium sheet AMS4900 meets these needs, and its higher cost is justified by lower rejection rates and higher dependability. Commercial types of titanium can still be used for less important tasks where bigger errors are okay. Partnering with qualified providers that offer full technical support, flexible order amounts, and proven aerospace qualifications is key to successful procurement. With 20 years of experience in the titanium industry, a large inventory, and a dedication to new ideas, Jucheng Titanium is a reliable partner for businesses looking for the best material solutions backed by strict quality control and quick customer service.
FAQ
1. What types of businesses use titanium sheet AMS4900 the most?

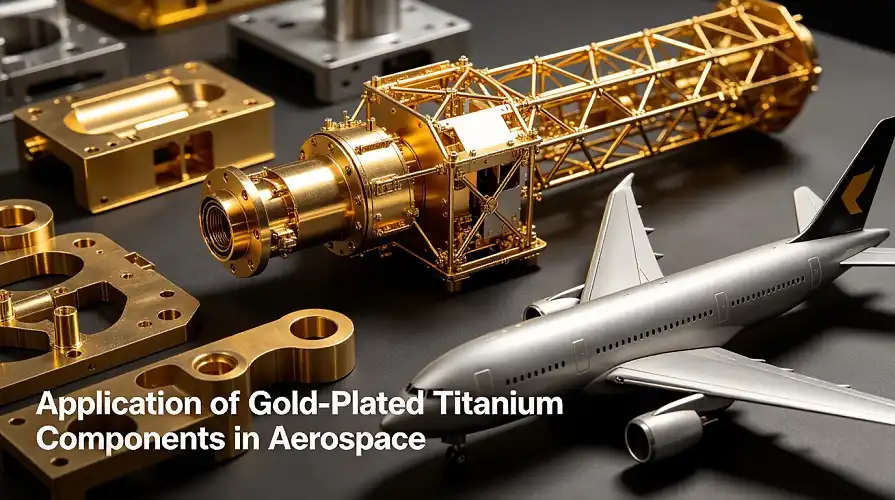

Aerospace companies use titanium sheet AMS4900 for parts of airplanes that support the structure, firewalls, and housings for hydraulic systems, all of which need to be able to track materials and meet approval requirements. Defense companies use titanium sheet AMS4900 for armor plate and nautical uses that need to be resistant to corrosion in saltwater. Biocompatible titanium sheet AMS4900 material is used by companies that make medical devices for implant housings and surgical tool parts. It is also used by companies that process chemicals for heat transfer plates that are exposed to aggressive media.
2. Can heat be used to treat AMS4900 titanium sheets?
Stress-relief annealing at 540–650°C works well on titanium sheet AMS4900 material. It gets rid of leftover stresses from shaping and stabilizes the microstructure for accurate measurements. After cold working, full annealing processes recover ductility and make sure that the mechanical properties stay the same. Because titanium sheet AMS4900 only covers pure titanium and not heat-treatable alloys like Ti-6Al-4V, aging treatments can't be used on it.
3. How do the prices of AMS4900 and Grade 5 titanium compare?
Because it has to be certified and tracked, titanium sheet AMS4900, economically pure titanium, usually costs 15–25% more than commercial Grade 2 titanium of the same quality. Because it costs more to alloy and is harder to work with, Grade 5 (Ti-6Al-4V) is worth about 40 to 60 percent more than titanium sheet AMS4900. Prices for each project are based on the number of items ordered, the tolerances for size, and the delivery schedule.
Partner with a Trusted AMS4900 Titanium Sheet Supplier
Choose a reputable company that sells titanium sheet AMS4900. To find trustworthy places to get certified aerospace-grade titanium parts, you need to work with seasoned makers who can show that they have strong quality systems and technical skills. Jucheng Titanium has a large stock of titanium sheet AMS4900 and can also make special parts for the aircraft, defense, and industrial equipment industries. Our 3,000-ton stock of materials guarantees fast delivery, and our engineering team gives application-specific advice on the best materials to use and the best ways to process them.
For thorough quotes, material certifications, and advice on your next titanium purchase project, email our technical sales experts at s4@juchengti.com. Jucheng Titanium gives you the quality assurance, tracking paperwork, and customer support your important applications need, whether you're looking for small numbers for a sample or long-term supply deals.
References
1. ASM International. (2015). Titanium: A Technical Guide (2nd Edition). Materials Park, OH: ASM International.
2. Boyer, R., Welsch, G., & Collings, E.W. (2021). Materials Properties Handbook: Titanium Alloys. ASM International.
3. Donachie, M.J. (2000). Titanium: A Technical Guide (ASM Technical Books). Materials Park, OH: ASM International.
4. Lutjering, G., & Williams, J.C. (2007). Titanium (2nd Edition). Berlin: Springer-Verlag.
5. SAE International. (2018). AMS4900: Titanium Alloy Sheet, Strip, and Plate Unalloyed, Annealed. Warrendale, PA: SAE International.
6. Schutz, R.W., & Watkins, H.B. (1998). "Recent developments in titanium alloy application in the energy industry." Materials Science and Engineering: A, 243(1-2), 305-315.
