What Should Buyers Check When Sourcing Titanium Sheet in Coil?
When sourcing Titanium Sheet in Coil, buyers should prioritize verification of material certifications, dimensional tolerances, surface quality, and supplier credentials. Material Test Reports confirming chemical composition and mechanical properties according to ASTM B265 or ASME SB265 standards are non-negotiable. Dimensional accuracy—especially thickness uniformity across the coil length—directly impacts downstream processing efficiency. Surface finish quality, whether bright or acid-pickled, affects both corrosion performance and forming behavior. Finally, supplier experience in vacuum arc remelting and cold-rolling processes, combined with proven export logistics capabilities, ensures consistent material supply and reduces procurement risks for high-stakes projects.
Introduction
Titanium Sheet in Coil is essential for high-performance, cost-effective manufacturers. This continuously rolled product combines titanium's corrosion resistance and excellent strength-to-weight ratio with a coil configuration, which simplifies inventory management and automates pressing line feeding. As maritime, chemical processing, and aerospace demand rises worldwide, procurement teams must identify materials that fulfil high technical standards while keeping prices low and assuring consistent supply.
Knowing what you look for when sourcing may make the difference between a seamless production run and one that's delayed, low-quality, and expensive. This guide combines 20 years of industry knowledge to assist B2B customers in purchasing Titanium Sheet in Coil by helping them through the rigorous grade and supplier selection process. This ensures that every purchase meets operational objectives and project timeframes.
Understanding Titanium Sheet in Coil: Key Properties and Grades
What Makes Coiled Titanium Different

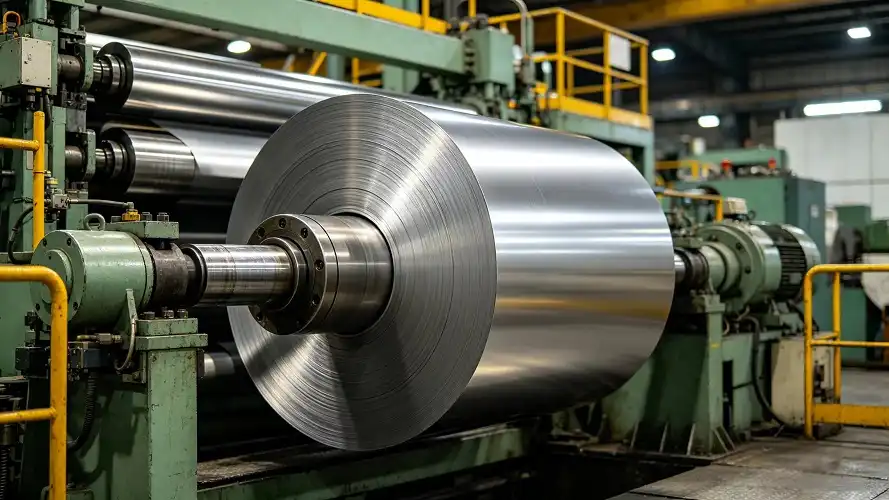

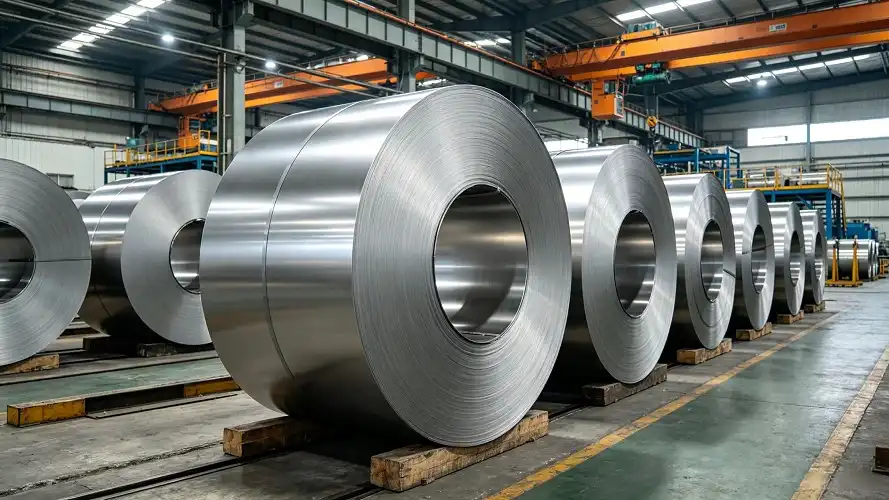

Titanium Sheet in Coil is made by hot rolling or cold rolling, and then it is annealed and wound into continuous rolls right away instead of being cut into flat sheets. This format solves important problems in manufacturing by letting materials be fed continuously into progressive stamping dies and roll-forming machines. The coil shape makes much better use of the material—manufacturers usually get a 15–20% higher yield than with flat sheets because they don't have to deal with nesting waste and end-scrap losses.
First, vacuum arc remelting is used to make high-purity ingots. Then, controlled rolling is used to get precise gauge reduction. Most of the time, the thickness is between 0.3mm and 12.0mm, and the width is between 950mm and 1500mm. Length can be changed to fit the needs of the job, which is something that regular flat sheets can't do.
Essential Material Properties
Titanium Sheet in Coil has three advantages. A self-forming titanium dioxide coating resists corrosion. This layer prevents pitting and crevice corrosion in chloride-rich saltwater and oxidising acids. Thermal stability protects the structure up to 600°C, depending on the grade. Combining mechanical strength and low density (4.51 g/cm³) yields a greater strength-to-weight ratio than stainless steel. This makes lighter, longer-lasting parts.
Cold formability is crucial for twisting material. Deep drawing and corrugating from the coil without breaking requires commercially pure grades to stretch 20–30%. Due to its flexibility, manufacturers may fabricate complex heat exchangers and building cladding with minimal intermediary annealing processes.
Grade Selection and Standards
Knowing the differences between grades helps buyers balance the need for performance with the need to stay within their budget. Grade 1 (UNS R50250) is the most flexible and resistant to corrosion, making it perfect for complex stamping tasks and chemical processing equipment. Grade 2 (UNS R50400) is the standard in the industry. It has good resistance to rust and a slightly higher strength, making it perfect for most uses, such as plate heat exchangers and seam-welded tubes.
Grade 5 (Ti-6Al-4V) is the standard for aerospace. It is very strong, but needs to be handled carefully because it springs back, which makes coiling harder. Palladium or molybdenum is added to grades 7 and 12 to make them more resistant to reducing acids. This is done for specific chemical industry uses.
The material has to meet internationally recognized standards like ASTM B265, ASME SB265, ASTM F67 for medical uses, AMS 4911 for aerospace uses, and ASTM F136 for surgical implants. These rules say what kinds of chemical composition, mechanical properties, size errors, and surface conditions are acceptable.
Critical Comparison Factors for Titanium Sheet in Coil vs Alternatives
Performance Advantages Over Competing Materials
Titanium Sheet in Coil works differently from stainless steel and aluminium. Titanium resists rust better than 316L stainless steel in chlorine and at high temperatures. Titanium won't pit like stainless steel in chemical and marine applications. While aluminium is lighter, titanium remains robust at temperatures where aluminium weakens. Titanium is necessary for heat management systems over 150°C.
Aircraft and the military employ strength-to-weight calculations more. Titanium is 60% as dense as steel yet possesses tensile strength equivalent to high-grade steels. This allows lighter structural pieces without compromising safety. Better fuel efficiency and cargo space result from this advantage.

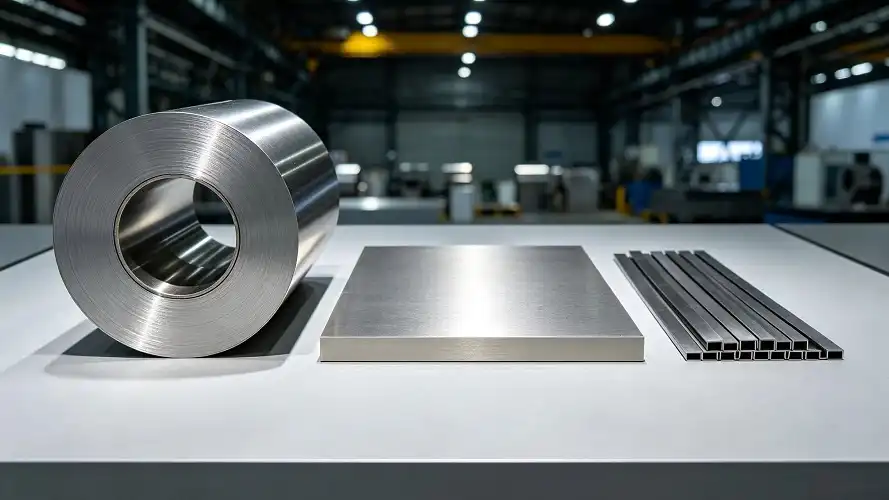

Coil Format Versus Flat Sheet or Strip

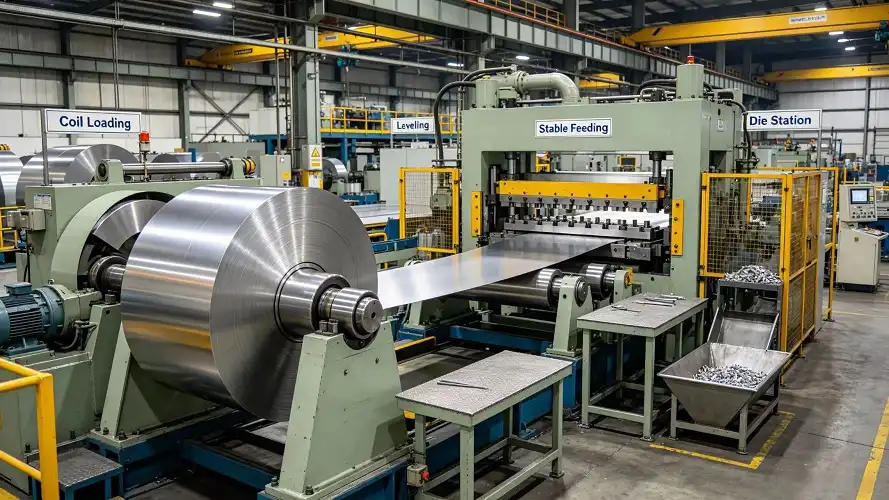

A coil or flat titanium sheet depends on how it's created and how much is required. Coiled material performs well in automated feeding systems for high-volume manufacturing. These solutions reduce time and effort for plate heat exchanger and continuously welded tube manufacturers. The continuous approach eliminates the need to stop machines to add materials, improving equipment performance.
Custom manufacturing in small numbers or when the item is larger than the coil width is best done using flat sheets. Strip material is narrower than coil and is used to make thin tubes or press tiny bits. Consider how much they purchase annually and what their processing equipment can accomplish to discover the most cost-effective format.
Total Cost of Ownership Considerations
Initial material costs are merely one portion of the business issue. Titanium is sturdy and lasts longer than other materials. Titanium heat exchangers survive 30+ years in corrosive work, whereas copper-nickel or stainless steel ones last 5–7 years. Even if the original investment is larger, lifetime economics are superior due to reduced maintenance and no replacement expenses.
The coil configuration improves processing efficiency, adding value. Better material yield reduces raw material for each produced product, and automated feeding reduces direct labour expenses. Titanium is constant and simple to trace, which helps buyers in quality-controlled sectors reduce inspections and rejections.
Key Procurement Considerations for Sourcing Titanium Sheet in Coil
Supplier Qualification and Certification
A comprehensive supplier assessment begins a strong buying process. Buyers should verify that vendors have ISO 9001 and AS9100 aviation certifications. Being a National High-Tech Enterprise and a "little giant" demonstrates excellent R&D capabilities and a dedication to technical innovation.
Manufacturing expertise is crucial for processing Titanium Sheet in Coil. Suppliers with 20 years or more of experience can handle vacuum freezing, rolling, and heat treatment. Manufacturers that wish to know how their goods will react when created benefit from this expertise, which leads to more uniform materials and reduced batch variance.
Patents show how sophisticated a technology is. Titanium processing suppliers with innovation and use model patents demonstrate their creativity and problem-solving skills. These IP assets frequently reveal hidden methods for superior surface finishes or size restrictions.
Material Verification and Testing

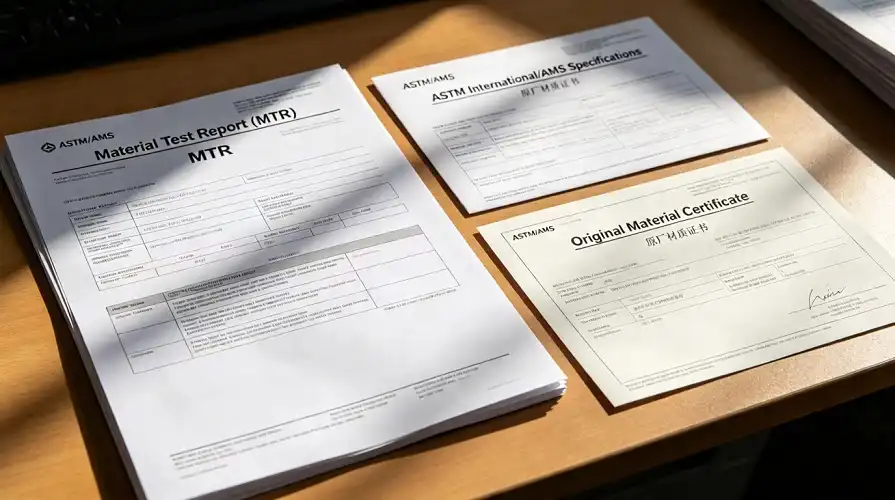

Materials Test Reports are required for every product. These reports must demonstrate chemical composition utilising ICP-OES and interstitial element (hydrogen, nitrogen, and oxygen) measurements. To prevent delayed hydride cracking, hydrogen levels must be monitored because oxygen and iron concentrations affect shapeability. ASTM E8 requires mechanical testing to demonstrate longitudinal and transverse tensile, yield, and elongation. This ensures material homogeneity for intricate shaping.
Automatic processing tools need dimension verification. Laser gauge monitoring should reveal thickness within +/- 0.05mm or tighter limitations. Measure flatness using the I-Unit approach to ensure material runs easily through stamping dies without becoming caught. The surface integrity examination reveals roll marks, laps, or ferrous contamination that may reduce corrosion resistance or aesthetics.
Third-party testing secures high-stakes apps. Deep-drawing requires testing for fractures in a material's bendability at specified angles in independent laboratories. Water break testing and surface roughness profiling clean and polish food processing and pharmaceutical equipment.
Negotiating Terms and Logistics
Because suppliers manage inventories and manufacturing differently, minimum order numbers vary widely. For project-based procurement or prototyping, suppliers with more than 3,000 tonnes of titanium can manage smaller orders and shorter lead times. Buyers should compare their demands to available materials to determine production time.
Logistics assistance impacts landing costs and supply chain reliability. To prevent coil damage during international transportation, experienced exporters bundle them carefully. They also handle customs procedures promptly and communicate with titanium-specialized freight firms. Just-in-time production requires delivery schedule flexibility.
Payment terms should reflect the value of long-term partnerships. Titanium is expensive; therefore, suppliers require a lot of working capital, but they may be able to provide better terms to long-term clients. Buyers should choose framework arrangements that lock in costs but allow them to adjust amounts.
How Titanium Sheet in Coil is Made: Production Insights That Matter to Buyers
Raw Material Processing and Ingot Formation

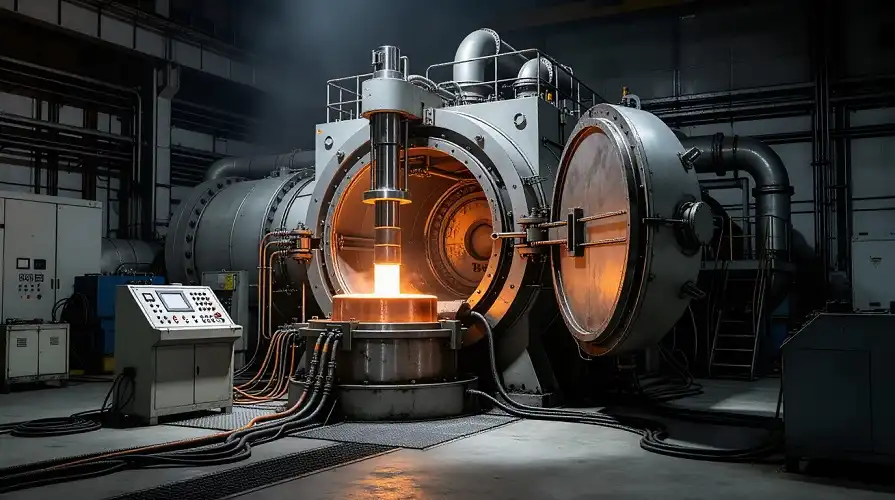

Choosing the right raw materials and vacuum arc remelting are the first steps to making great products. High-quality suppliers find titanium sponge that meets strict purity standards and then use VAR technology to make ingots that are all the same and don't have any segregation defects. This remelting process in a vacuum gets rid of any leftover gases and makes sure that the chemical makeup of the whole ingot is the same.
The melting process changes the properties of the material directly. Controlled cooling rates and multiple remelting passes get rid of microstructural flaws that could show up in finished products as weak spots or a high risk of corrosion. People who need to buy Titanium Sheet in Coil for important projects should ask their suppliers how they handle melting and quality control while making ingots.
Rolling and Forming Operations
Hot rolling lowers the cross-sections of ingots to middle gauges. This is usually done at temperatures between 750°C and 950°C to keep the metal workable while getting the grain structures that are wanted. After that, cold rolling gives it the final thickness requirements along with better control over dimensions and surface finish. The change from hot rolling to cold rolling, along with the annealing cycles in between, determines the final mechanical properties and shapeability of the material.
Processing steps like rolling, heating, leveling, and freezing need to be carefully planned and managed. Temperatures and hold times during annealing affect the size of the grains and the amount of leftover stress, which in turn affects how the material springs back during forming. Leveling makes sure that the surface is flat enough for automated feeding equipment, and pickling gets rid of surface oxides and other impurities that could get in the way of welding or bonding.
Quality Control Through Production
Defects don't get to customers because production is constantly being watched. Laser gage systems find differences in thickness profiles across coil widths that could lead to processing issues. Automated vision technology in surface inspection systems finds flaws that are too small to be seen by hand. This makes sure that the standard is the same across thousands of meters of twisted material.
Sustainability methods are becoming more and more important in choosing which suppliers to work with. Closed-loop acid recovery systems are used by advanced manufacturers during pickling processes. These systems lower operating costs and have less of an impact on the environment. Equipment for melting and heat treatment that uses less energy shows a commitment to responsible manufacturing and fits with corporate sustainability goals that Western buyers are used to seeing.
Advantages and Practical Uses of Titanium Sheet in Coil for B2B Buyers
Titanium Sheet in Coil has strong benefits that support its high price in the market for industrial materials. In addition to the well-known ability to resist corrosion, the coil shape meets operating efficiency needs that flat sheet goods can't. Manufacturers can use lean production methods with the continuous material form, which cuts down on switching times and work-in-process inventory.
Compared to other materials, maintenance costs go down a lot. Titanium coil-made equipment can work in harsh environments for decades without breaking down, so there is no downtime or lost production that comes with replacing parts all the time. This dependability is especially useful in industries with continuous processes, like making chemicals and electricity, where power outages without warning can cost a lot of money.
Applications Across Key Industries

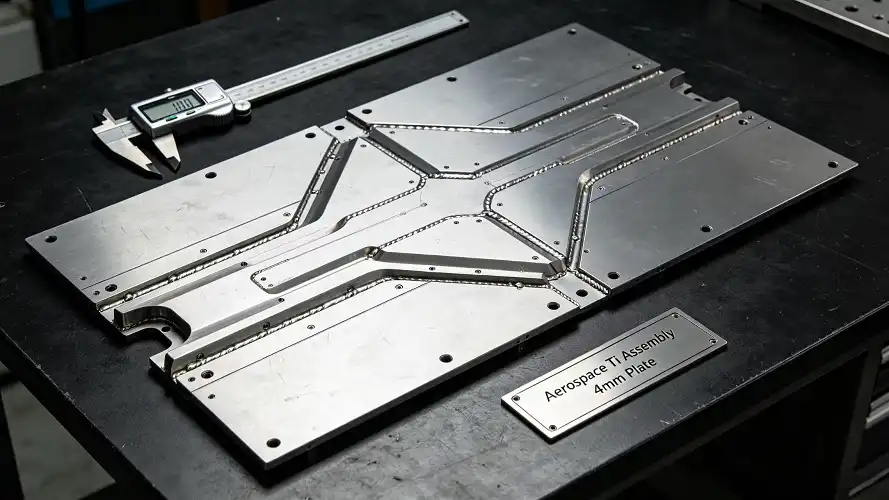

Aerospace and defence firms employ titanium sheet in coil to manufacture lighter aircraft skin panels, engine parts, and structural elements to increase performance. Always using automated methods to process materials reduces human labour while maintaining aviation certification tolerances and traceability. AMS 4911-compliant material works with aviation supply chains and testing.

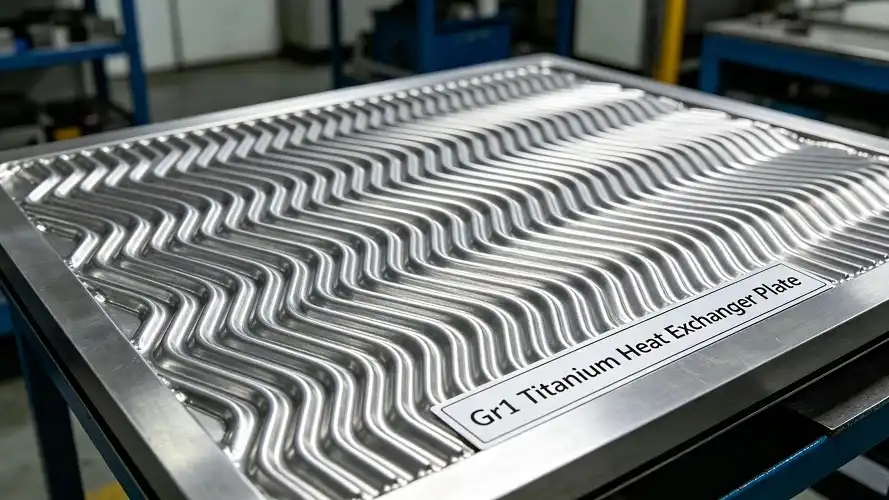

The largest application category may be chemical processing equipment. Plate heat exchanger manufacturers use high-tonnage hydraulic presses to carve complicated corrugation patterns of coil material to maximise surface area and strength. Because reasonably pure grades may be deeply shaped, complicated forms can be created without annealing, lowering manufacturing costs. In chlor-alkali, desalination, and pharmaceuticals companies, heat exchangers and transport lines are formed with slit coil titanium tubing.
Titanium is suitable for marine and offshore ballast water treatment systems, propeller shafts, and hull pieces because it resists saltwater. The coil configuration simplifies continuous standing-seam panels and structural structures for naval design. Biocompatible Grade 5 ASTM F136 material is preferred by medical device manufacturers. Coil stock with guaranteed chemical and mechanical qualities is used to create surgical tools and implantable parts.
Optimizing Return on Investment
For Titanium Sheet in Coil implementation to go well, buyers and experienced suppliers need to work together. Design optimization can cut down on material use by a large amount. Working with suppliers' engineering teams during the development phase can help find ways to thin gauges, change shapes, or change grade choices without affecting performance. When compared to the original specs, these changes often save 20 to 30 percent of the material.
When switching from flat sheet to coil shape, process development help is especially useful. Suppliers with a lot of experience with specific applications can help with setting up the right tools, troubleshooting, and forming parameters that will speed up production and cut down on waste while learning new processes. With this technical partnership approach, suppliers go from being just suppliers of materials to working together to add value.
Conclusion
When looking for Titanium Sheet in Coil, you need to pay close attention to the certifications of the material, the skills of the provider, and the needs of the application. When buyers take the time to learn about changes in grades, signs of production quality, and the total cost of ownership, they can make choices about what to buy that will last. The practical benefits of the coil shape, such as better material usage, automated processing compatibility, and inventory efficiency, work well with titanium's natural performance benefits to make solutions that are appealing across a wide range of industries. A good procurement process combines technical requirements with supplier review. This makes sure that the quality of the materials, the dependability of delivery, and quick technical help throughout the lifecycle of the product.
FAQs About Sourcing Titanium Sheet in Coil
1. Which titanium grade works best for aerospace applications?
Grade 5 (Ti-6Al-4V) is the standard in the aircraft business because it gives structural and motor parts the best balance of strength and weight. This alloy meets the requirements set by AMS 4911 for certification in the aviation industry. In aerospace, Grade 2 is used for less demanding jobs where corrosion resistance is more important than maximum strength. Examples include hydraulic lines and galley equipment for Titanium Sheet in Coil applications.
2. How can buyers ensure on-time delivery for bulk orders?
Working with sellers who keep a lot of stock—ideally 3,000 tons or more of stock material—is the fastest way to meet standard requirements. For custom alloys or sizes, there is a production wait time of 8 to 12 weeks, based on the size of the order. Setting up a framework that deals with agreed-upon yearly amounts will encourage suppliers to keep dedicated supplies and put your delivery plans first.
3. What certifications indicate a reliable titanium coil supplier?
ISO 9001 certification shows basic quality management skills, while AS9100 certification shows aerospace-specific quality systems for buyers in the defense and flight sectors. National High-Tech Enterprise designations and specialized manufacturing designations show that a company has advanced technical skills and keeps coming up with new ideas. Material Test Reports that meet ASTM or ASME standards and are accepted by a third-party review provide concrete proof of quality.
Partner With a Proven Titanium Sheet in Coil Manufacturer

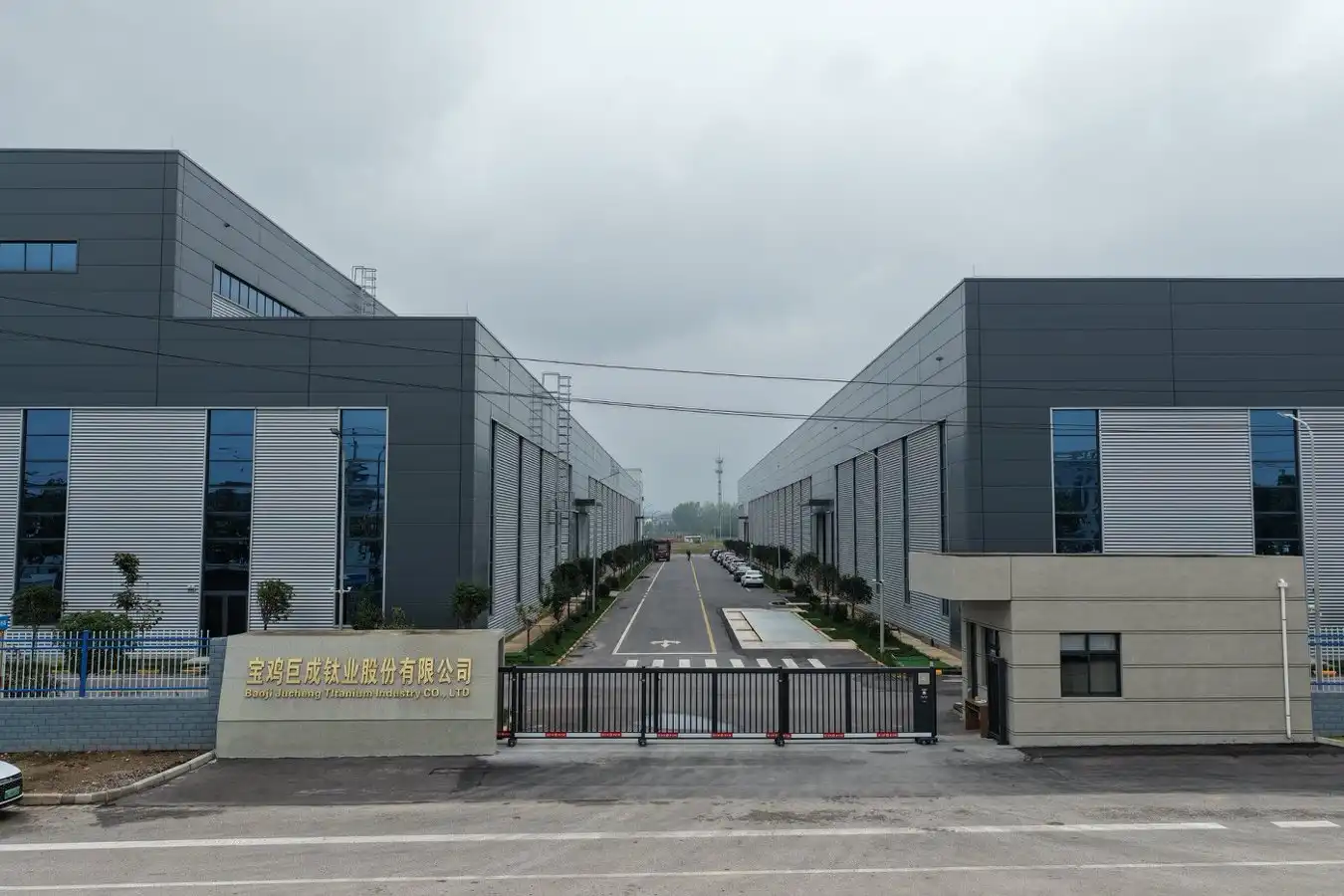

At our 120,000-square-meter factory in Baoji, China's Titanium Valley, Jucheng Titanium makes each Titanium Sheet in Coil with over 20 years of specialized experience. Our 3,000-ton inventory lets us respond quickly to urgent needs, and our 4 invention patents and 41 utility model patents show that we are always coming up with new ways to process titanium. As a National High-Tech Enterprise that makes more than 500 sets of titanium equipment every year, we know what aircraft makers, chemical processors, and industrial equipment builders need in terms of quality standards and technical support. Our engineering team works closely with customers to make sure that specifications are optimized, costs are cut, and the products work well with your production processes. Contact our experts at s4@juchengti.com to talk about your unique needs and get detailed technical advice backed by certifications like ASTM B265 and ASME SB265 compliance, which will make sure your project works from the idea stage to the delivery stage.
