1 Inch Titanium Plate vs Thinner Grades: Which Is More Practical?
When specifying titanium plates for demanding industrial applications, thickness becomes more than a dimensional detail—it determines structural integrity, operational lifespan, and total cost of ownership. After two decades serving aerospace manufacturers, chemical processors, and offshore equipment builders, we've witnessed procurement teams grapple with a recurring question: does a titanium 1inch plate justify its premium over thinner alternatives, or do lighter grades deliver comparable value? The short answer: A titanium 1inch plate excels in heavy-load structural frameworks, pressure vessel shells, and marine construction where compressive strength and fatigue resistance are non-negotiable. Thinner grades (under 0.5 inches) suit heat exchanger plates, surgical instrument blanks, and corrosion barriers where weight reduction and forming flexibility matter most. The practical choice depends on stress loads, environmental exposure, and lifecycle economics—not thickness alone. Titanium's reputation stems from its 60% weight advantage over steel combined with corrosion immunity rivaling platinum. Yet thickness dramatically alters mechanical behavior, machinability, and per-unit costs. Purchasing managers targeting ASTM B265-compliant materials for North American projects face distinct considerations compared to specifying thin-gauge sheets. This analysis clarifies when substantial plate thickness translates to operational advantages and when it introduces unnecessary expense.

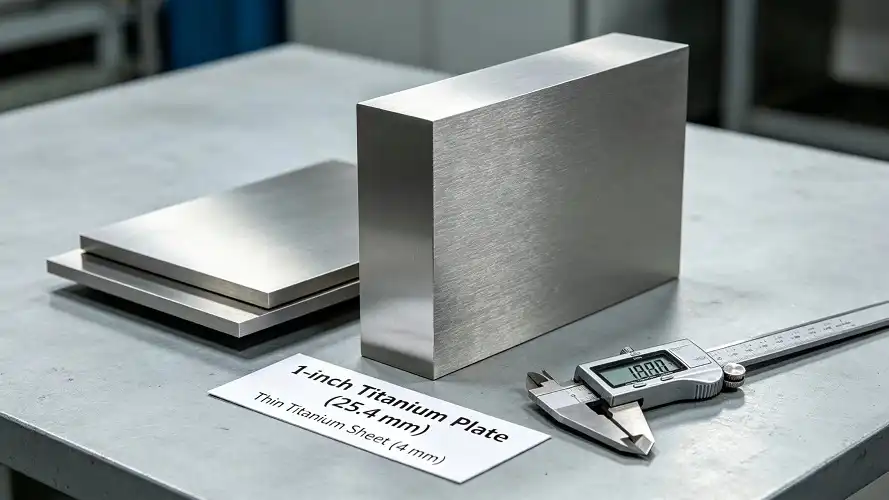

Understanding the Properties of 1 Inch Titanium Plate vs Thinner Grades
Mechanical Strength and Load-Bearing Capacity
Titanium alloys have changes in performance that depend on thickness, which has a direct effect on structural estimates. A Grade 5 (Ti-6Al-4V) plate that is 25mm thick has a tensile strength of more than 895 MPa and a yield strength of around 828 MPa. These strengths stay the same across the cross-section because it is hot-rolled and annealed according to AMS 4911 standards. A 6mm Grade 2 sheet, on the other hand, has a tensile strength of 345 MPa, which is good enough for non-structural enclosures but not for landing gear parts or subsea wellhead assemblies.

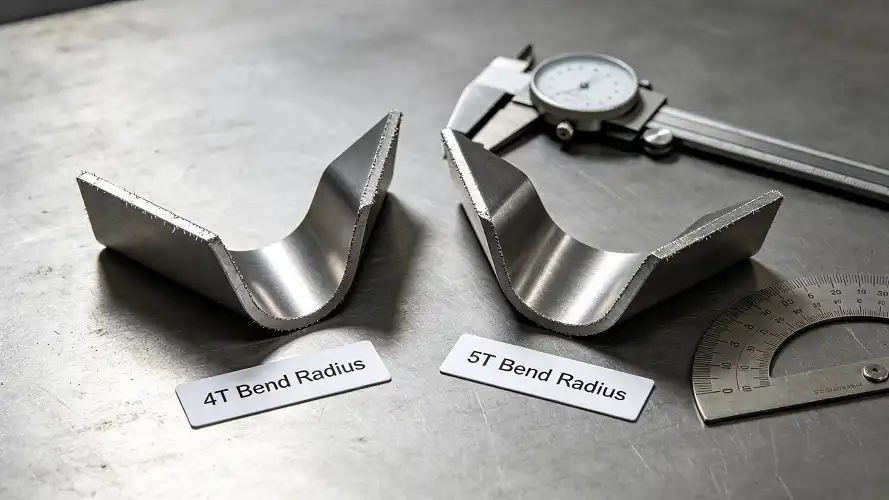

When loads are bent, the stiffness advantage becomes clear. Section modulus calculations show that doubling the thickness of a plate increases its resistance to bending eight times. This is why makers of pressure vessels require reactors with walls that are one inch thick when they are running above 300 bar. Because thinner plates need more complicated stiffening geometries, they cost more to make, even though they use less material.
Corrosion Resistance Across Thickness Variations
Titanium's protective oxide layer forms evenly no matter how thick it is, but how well it resists rust in real life varies. In chemical processing environments with more than 10% sulfuric acid, thicker plates can handle localized pitting better. This isn't because they are better at passivation, but because they take longer to perforate. A pinhole hole in a 5mm sheet means there is an instant risk of leaking, but the same kind of rust in a 25mm plate lets it work safely for years before the wall starts to thin.
For offshore oil platforms where replacement costs are much higher than material premiums, Grade 7 and Grade 9 versions are often specified at a 1-inch thickness. These grades are alloyed with palladium to make them more resistant to crevice corrosion. Pharmaceutical reactors use thinner sheets improved with palladium because the quality of the inside surface is more important than the mass of the structure.
Machining and Fabrication Challenges

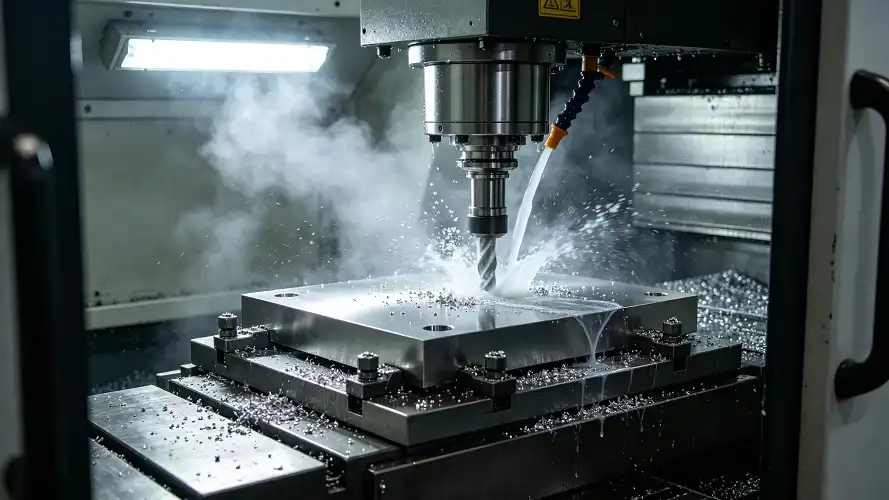

Working with thick titanium plates needs special tools and longer cycle times than working with thin sheets. To keep the work from getting too hard, CNC cutting a complicated shape from a Grade 5 titanium 1inch plate needs carbide tools, flood cooling systems, and feed rates less than 150 mm/min. Cutting the same shape from 10mm stock goes three times faster and wears out tools less.
When you heat-treat thick parts, temperature gradient risks come up. To get a uniform grain structure in a 25mm plate, it needs to be annealed with carefully controlled heating ramps and long soak times. Thin sheets can be annealed in half the time. These facts about processing have an effect on lead times, especially for custom shapes that need ASTM F67 biomedical certification or AMS traceability.
Practical Applications: When to Choose 1 Inch Titanium Plate or Thinner Grades
Aerospace and Defense: Structural Bulkheads and Engine Components

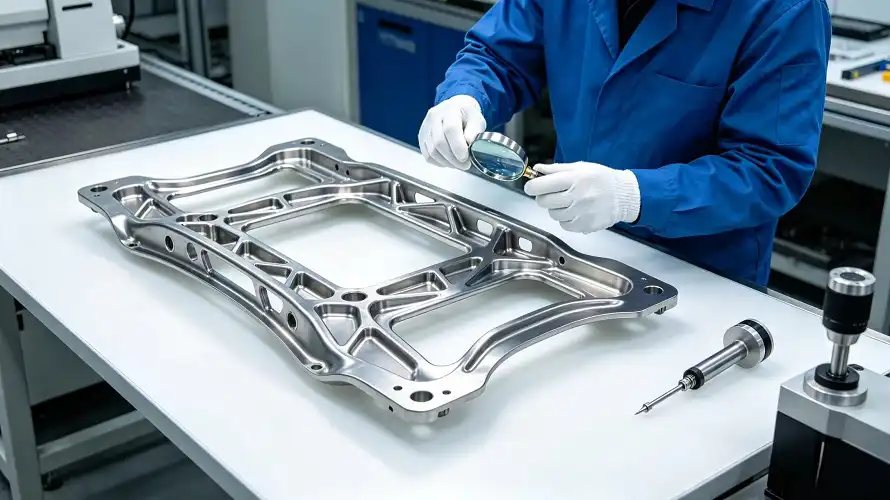

Manufacturers of airplanes use thick titanium plates for main parts that are under a lot of stress in more than one direction. Fittings for attaching wings to the fuselage that are made from Grade 5 plates that are 20 to 50mm thick meet fatigue life requirements of more than 60,000 flight cycles, which is something that can't be done with thin sheet assemblies that are built up. The one-piece construction gets rid of the stress clusters and worn-out rivets that come with stacked designs.
Jet engine fan covers use Grade 5 titanium 1inch plates because they can keep their strength at high temperatures and keep things contained when blades come off. Thinner titanium works well in access panels and fairings that don't have to carry weight. Every kilogram saved helps save fuel without lowering safety standards.
Chemical Processing: Pressure Vessels and Heat Exchangers

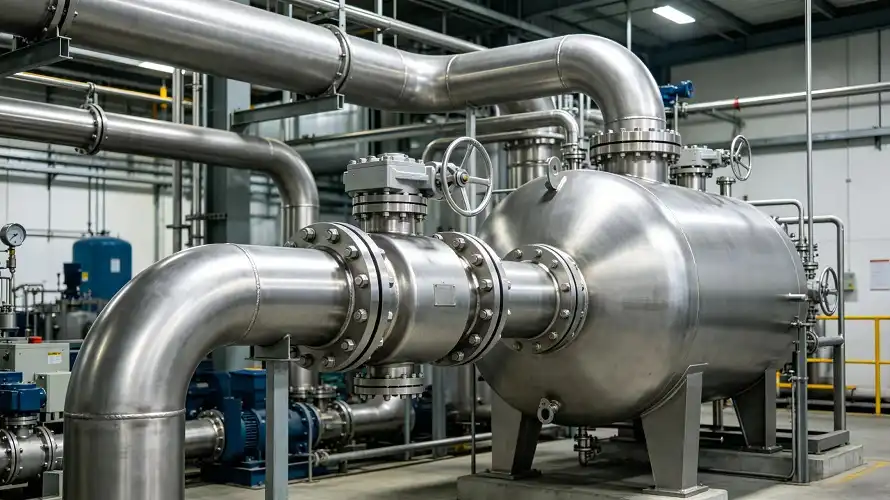

In petrochemical plants, thick titanium plates are used in reactor shells that deal with corrosive mixtures under high pressure. A standard 3-meter-diameter tank working at 250°C and 100 bar has 25mm Grade 2 walls to meet the requirements of ASME Section VIII stress estimates and allow for corrosion over 20 years of service. The thickness of the plate allows for nozzle reinforcements and supports to be welded without worrying about thinning in certain areas.
On the other hand, shell-and-tube heat exchangers use Grade 2 sheets that are 3–5mm thick for the tube plates. This makes them more thermally efficient and protects them from chloride attack from cooling water. The lower mass makes it easier to move during maintenance breaks, and the thinner cross-section reduces stresses caused by heat expansion during starting cycles.
Marine Engineering: Hull Structures and Submersible Components

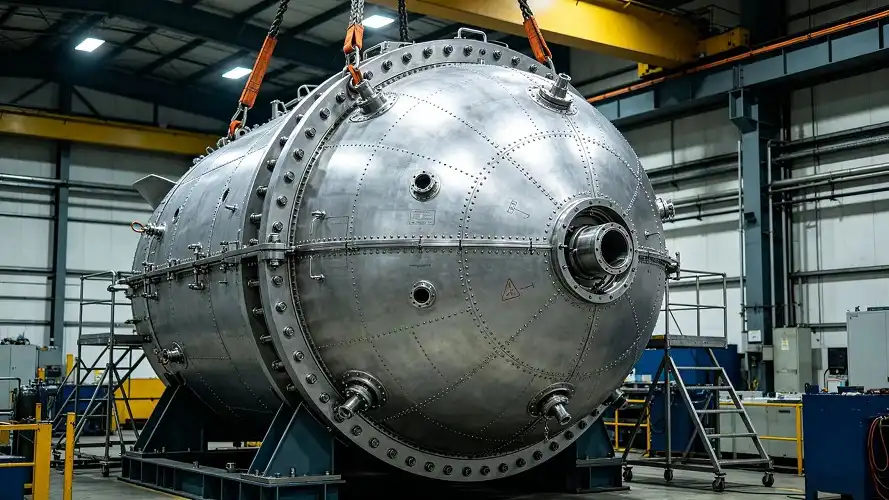

Naval architects who are making research submersibles need thick titanium plates for the pressure hull segments so that they can handle the hydrostatic loads of the deep ocean. A 30mm Grade 5 sphere can go down 6,000 meters, but a thin-wall structure would just fall apart in an instant. When compared to mission-critical reliability, the cost of the materials is very small.
Thin-wall titanium tube and sheet fabrications are preferred for seawater plumbing systems on ships. In warm seas, a 2mm condenser shell can work for decades without fouling up, while stainless steel would pit after only a few months. The reduced weight makes the tank more stable, showing that the purpose determines the best width.
Cost Efficiency and Procurement Considerations for 1 Inch Titanium Plate
Material Pricing and Volume Economics
Because of ingot yields and mill working activity, the price of titanium plates doesn't go up or down in a straight line with thickness. At the moment, the market price for 25mm thick Grade 2 plate is about $18 to $24 per kilogram, while the price for 6mm sheets is about $15 to $19 per kilogram. The difference in price is due to rolling passes and quality-checking procedures. For aerospace-certified titanium 1inch plates that meet AMS 4911 standards and can be fully tracked, Grade 5 comes with extra fees that can reach $32 to $38 per kilogram.
Strategies for buying in bulk have a big effect on how much things actually cost. By making yearly supply deals with mills in China's Baoji Titanium Valley region—where Jucheng Titanium and other manufacturers keep 3,000-ton stocks—pricing stays stable and gets given priority during supply shortages. If you commit to buying more than 10 tons of goods every year, you can get tier savings that lower the price per kilogram by 12 to 18% compared to buying on the spot.
Supplier Qualification and Lead Time Management
A reliable way to buy things is from suppliers who are certified and offer ASTM B265 and ASME SB265 compliance with third-party material test reports. Buyers in the aerospace industry need AMS approvals that can be linked to specific heat lots. On the other hand, builders of chemical equipment put a high value on corrosion test data from simulated process conditions. Lead times are very different. Common Grade 2 sheets ship in 4 to 6 weeks, but custom-sized Grade 5 titanium 1inch plates with special surface finishes take 12 to 16 weeks from the time they are ordered until they are delivered.
Strategic buyers keep two types of relationships with suppliers: direct mill relationships and domestic distributors. This method strikes a balance between being able to respond quickly to urgent needs and lowering costs by importing by container load. Specialized suppliers have a 70% share of the market for hydrometallurgical anodes. This shows that niche expertise adds value above and beyond commodity pricing.
How to Decide: Choosing Between 1 Inch and Thinner Titanium Plates for Your Project
Engineering Analysis Framework

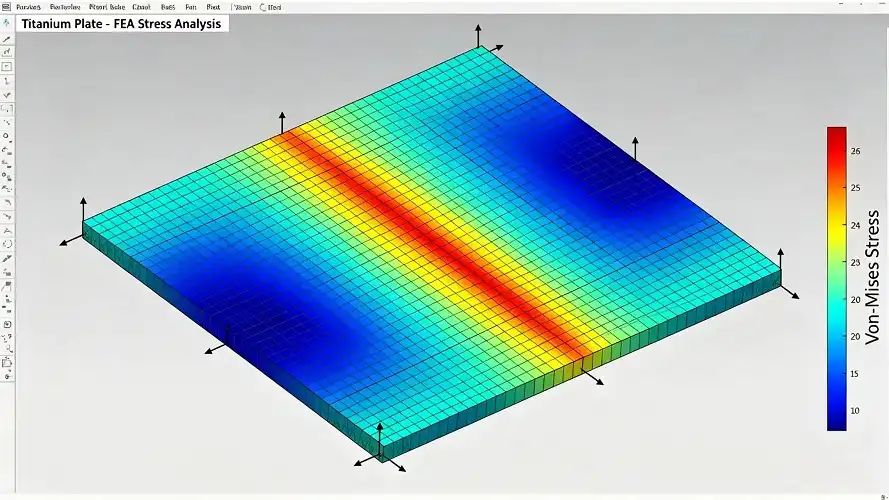

Before choosing a material, project engineers should do a stress analysis to figure out the section modulus and deflection limits that are needed for the design loads. Finite element modeling shows that a 12mm plate with stiffeners can work as well as a 25mm thick plate while being lighter. Corrosion allowances need to take into account how long the structure is expected to last. For example, a chemical reactor that will only be used every 15 years can have thinner walls than permanent offshore infrastructure.
Environmental factors have a big impact on decisions about thickness. When equipment is cycled between cryogenic and high temperatures, it needs less thermal mass, which means it needs thinner sections that reduce thermal shock stresses. On the other hand, thick plates that can absorb energy without breaking are needed for applications that involve impact loads or explosion containment.
Total Cost of Ownership Calculation
In factory settings, upfront material costs only make up 30 to 40 percent of lifetime costs. The costs of downtime, maintenance, and replacement parts often go over the initial budgets for purchases. A thicker titanium plate that increases the time between service intervals from 5 to 15 years has net present value benefits, even though it costs 40% more to buy. This is especially true for offshore installations that are far away and need to rent expensive ships to replace the plates.
Budgets for machining should be carefully looked over. Complex geometries that need to remove a lot of stock hurt thick plates by making cycle times longer and using more tools. There isn't much difference in cost between thicknesses for simple blanking operations. To find the real economic bests, procurement teams should ask for quotes that include both the prices of raw materials and final parts.
Consulting Experienced Suppliers
Using suppliers who know a lot about the application speeds up the process of choosing the best materials. Companies with combined facilities that store titanium plates, do custom cutting, heat treatment, and surface finishing all under one roof can give you design-for-manufacturability information that pure wholesalers can't. We've helped military clients choose different alloys that cut machining time by 35% while still meeting specifications, and we've helped chemical makers reduce plate thickness by suggesting better welding methods.
Conclusion
When deciding between a titanium 1inch plate and a thinner plate, you have to weigh the mechanical needs, the environment, the limitations of the fabrication process, and the economics of the product's life cycle. In places where structural stability, pressure containment, and long service life are important, like aircraft main structures, high-pressure chemical vessels, and deep-sea equipment, thick plates are the most common choice. When weight reduction, forming flexibility, and thermal performance are more important than load-bearing needs, thinner grades work well in heat exchangers, medical devices, and corrosion barriers. Stress analysis, supplier qualification, and total cost modeling are all important parts of successful procurement. Instead of just sticking to standard requirements, they should be combined. Strategic partnerships with certified manufacturers that offer customization, technical support, and a steady supply of goods allow buyers to get the best performance and value for money in a wide range of industrial settings.
Frequently Asked Questions
1. Does a titanium 1inch plate resist corrosion better than thinner grades?
The chemistry of the metal and the passivation of the surface, not the thickness, determine how resistant it is to corrosion. A 25mm thick Grade 2 plate and a 5mm sheet both form an oxide layer and are resistant to chemicals in the same way. The practical benefit of thicker plates is that they give you more time before they perforate when corrosion does happen. This gives you extra safety in critical situations where unexpected wall thinning could otherwise cause failure right away.
2. Which titanium grade works best for heavy-duty 1-inch applications?
Because it has a tensile strength of 900 MPa and great fatigue qualities, Grade 5 (Ti-6Al-4V) is used for most structural uses that need a 1-inch diameter. This metal is usually used for ASTM B265 or AMS 4911 standards in aerospace parts, pressure tank shells, and marine structures. For chemical processing equipment, Grade 7 is better because it has better resistance to crevice corrosion, which is why the palladium alloy premium is worth it.
3. What lead times should I expect from certified suppliers?
Standard-sized Grade 2 plates from well-known suppliers ship to North American areas in three to five weeks. It takes 10 to 14 weeks for custom thicknesses, widths over 2 meters, or aerospace-certified Grade 5 material that can be fully tracked. Suppliers with a lot of stock, like specialized manufacturers in China's Baoji region, can offer faster delivery on common specifications, which lowers the risk of project timeline delays.
Partner with Jucheng Titanium for Your Thick Plate Requirements

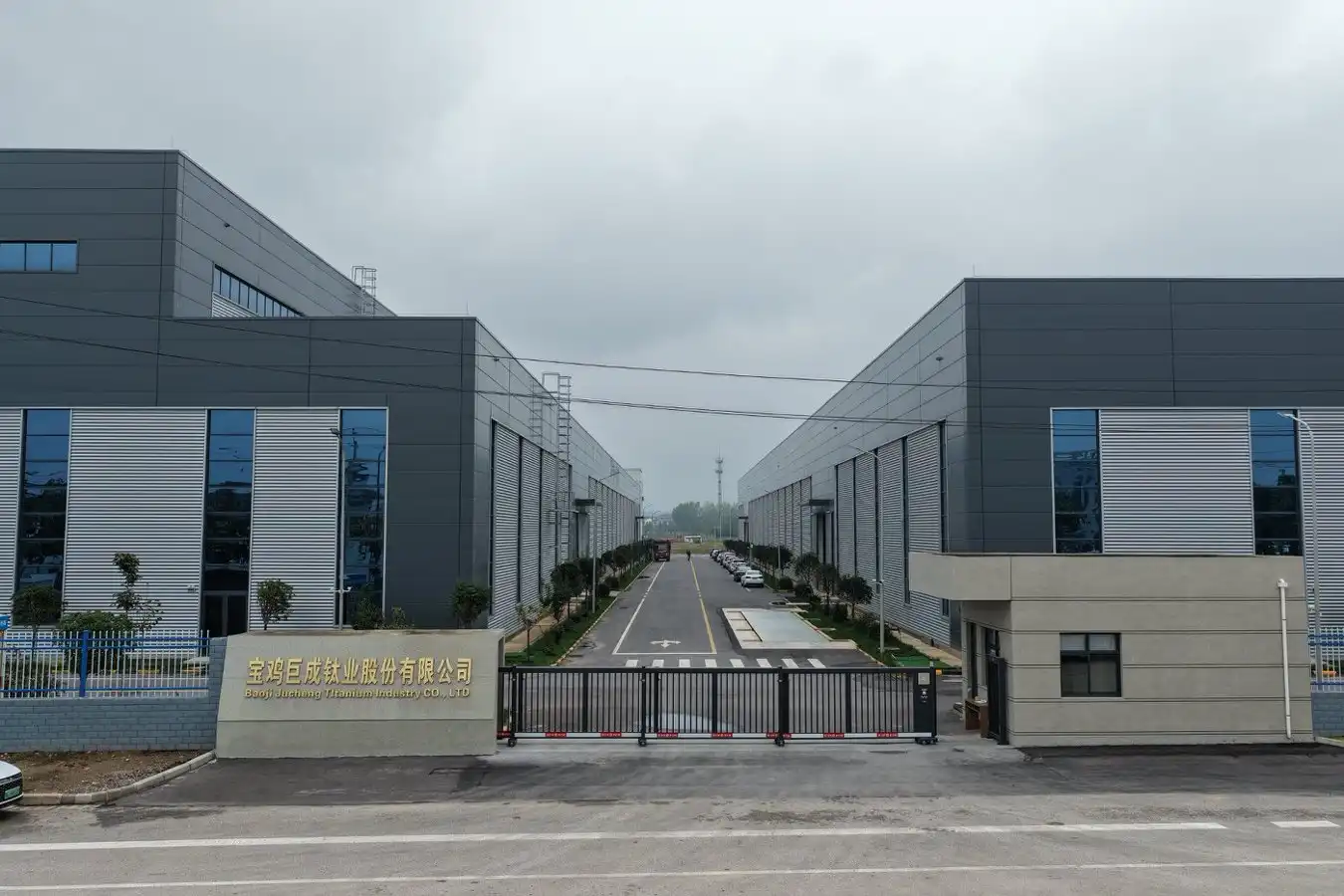

Baoji Jucheng Titanium Industry Co., Ltd. has been solving difficult problems with buying titanium plates for more than 20 years. Our 3,000-ton stock of Gr1, Gr2, Gr5, Gr7, Gr9, and Gr12 alloys in widths from 4mm to 80mm means that we can quickly meet both standard and unique needs. Every shipment from a titanium 1inch plate supplier comes with full ASTM B265 and ASME SB265 certification and mill test records that can be tracked back to the mill. This meets the strict paperwork needs of the aircraft, chemical processing, and defense sectors.

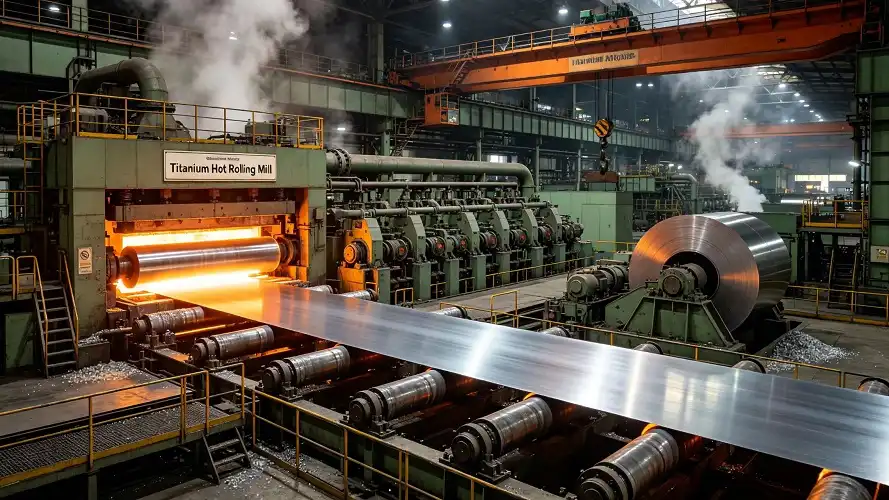

Our unified production processes, which include hot rolling, precise heating, acid pickling, and polished surface finishing, allow us to deliver plates that are ready to be put together right away, without having to go through any extra steps. We can support large-scale industrial projects because we make more than 1,500 tons of titanium anode plates and 500 sets of special titanium tools every year. Working together technically with the Northwest Institute for Nonferrous Metal Research gives you access to new alloys and application engineering help that pure distributors can't give you.
For project-specific advice, material certifications, and competitive quotes on thick titanium plates made to your exact specifications, email our procurement specialists at s4@juchengti.com. We ship in containers, offer flexible payment terms, and provide quick technical support for the whole lifecycle of your product for customers in North America and Europe.
References
1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
3. Peters, M., Kumpfert, J., approximation, C.H., & Leyens, C. (2003). "Titanium Alloys for Aerospace Applications," Advanced Engineering Materials, Volume 5, Issue 6.
4. Schutz, R.W. & Watkins, H.B. (1998). "Recent Developments in Titanium Alloy Application in the Energy Industry," Materials Science and Engineering A, Volume 243, Issues 1-2.
5. ASTM International. (2021). ASTM B265-20a: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. West Conshohocken, Pennsylvania.
6. Lutjering, G. & Williams, J.C. (2007). Titanium, 2nd Edition: Engineering Materials and Processes. Springer-Verlag, Berlin Heidelberg.
