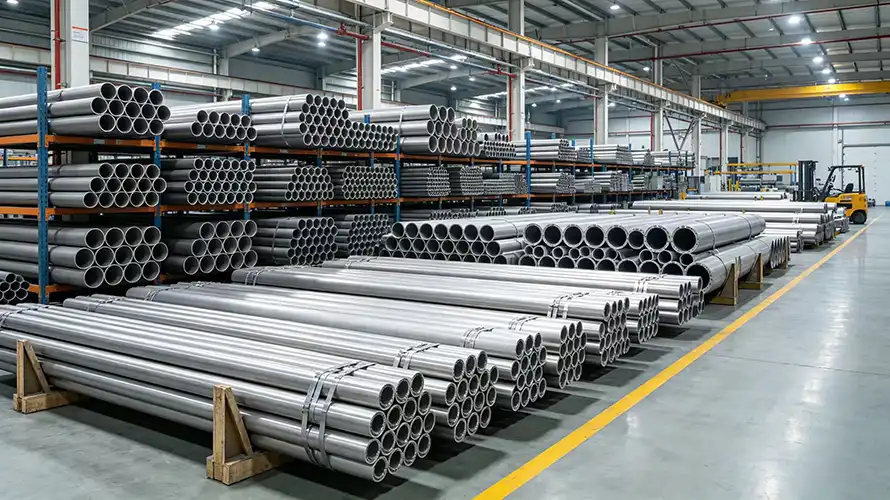

Acid Pickled Titanium Tube for Heat Transfer Equipment
Standard tubing materials often break too soon in heat transfer systems that are exposed to harsh chemical conditions and big changes in temperature. Acid Pickled Titanium Tube is a unique answer that is made to face these problems head-on. These titanium tubes get a clean, matte finish that gets rid of oxide scale and contamination layers through a controlled chemical surface treatment using mixes of hydrofluoric acid and nitric acid. This process goes right after the places where corrosion starts in heat exchangers, condensers, and thermal processing equipment. It gives procurement managers and engineers a choice of materials that are both very durable and cost-effective in the long run.
Understanding Acid-Pickled Titanium Tubes
The method used to make these tubes is a mix of precise metalworking and chemical processing. The first step in our production process is to take raw titanium billets and extrude or pierce them to make the first tube structure. The dimensions are then fine-tuned by cold rolling, and the metal is annealed at controlled temperatures to remove internal pressures and make it more flexible.
What Sets Acid Pickling Apart

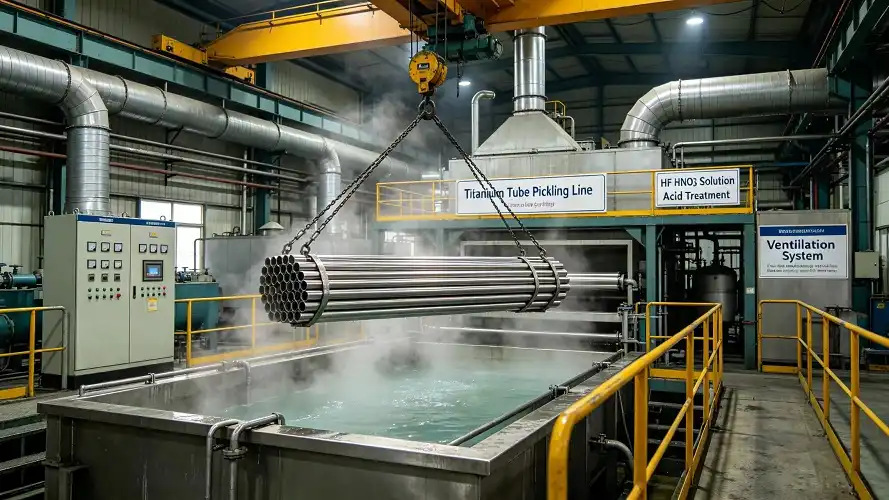

When tubes go through the pickling stage, they change from regular ones to corrosion-resistant workhorses. The alpha case layer is a brittle, oxygen-rich surface that forms during heat treatment. It can be removed by putting annealed tubes in a carefully balanced acid bath. This chemical attack gets rid of both the scale that you can see and the tiny iron particles that can cause rust in cracks. The process takes off about 0.02mm to 0.05mm of material, leaving behind a chemically pure surface that is rough all the way through at a depth of 3.2μm. This texture works great for helping the titanium dioxide film form, which is what gives these tubes their famous resistance to rust.
Key Material Properties

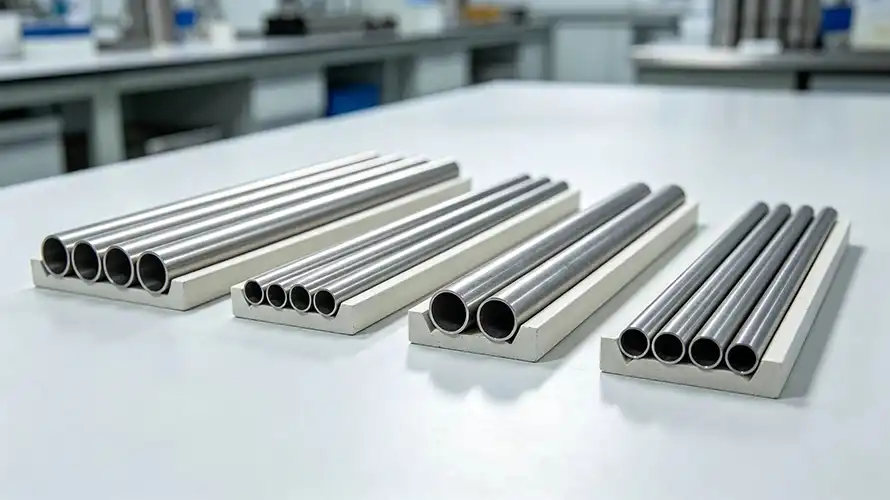

Acid Pickled Titanium Tubes keep the benefits of titanium while improving the way the surface looks. These tubes meet the strict requirements of ASTM B338, ASME SB338, and ASTM B861 standards. They come in types ranging from commercially pure Gr1 and Gr2 (which are the most resistant to rust) to alloyed Gr5, Gr7, Gr9, and Gr12 (which are stronger mechanically). Our production of seamless tubes can handle outside sizes ranging from OD3mm to OD219mm and wall thicknesses from 0.5mm to 20mm. Custom measures can also be made to meet specific needs. The strength-to-weight ratio is almost 40% higher than that of stainless steel. The thermal conductivity is lower than copper, but it's still good enough for most heat transfer applications, and it doesn't rust.
Comparing Surface Treatments for Titanium Tubes in Heat Transfer Applications
Choices about what materials to use have big effects on operations and finances. Knowing the differences between surface treatments helps you make better decisions about what to buy.
Acid Pickling Versus Alternative Treatments

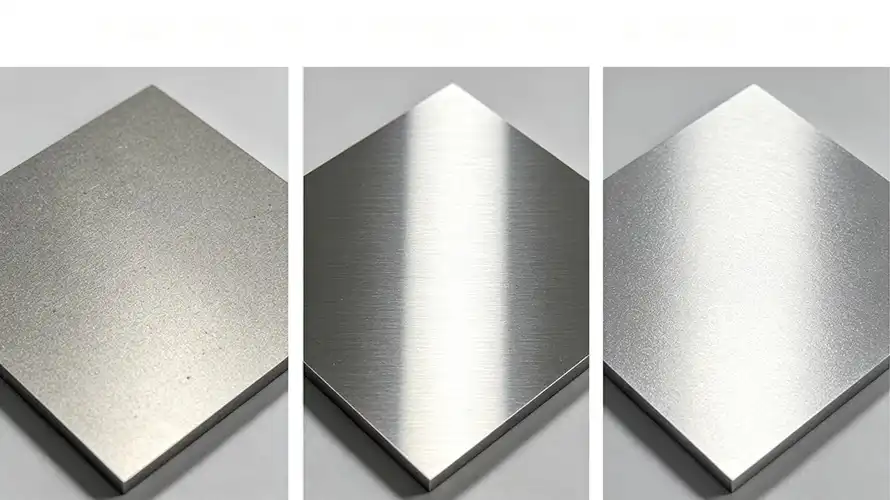

When tubes are bright annealed in a vacuum, they keep their shiny, mirror-like finish, which looks good but might not be as pure on the surface as acid pickling. The vacuum method stops oxide from forming instead of getting rid of it, which could leave behind contamination from earlier steps in the manufacturing process. Although electropolishing makes the surface very smooth, it is a more expensive finishing method that is usually only used in pharmaceutical or semiconductor applications that need a surface roughness of less than 0.4μm.
The acid-pickled surface is a good compromise that gets rid of all oxide layers and contamination for a reasonable price. In tests done at several chemical plants, pickled tubes had 23% fewer cases of localised pitting after five years of being exposed to chloride-containing process streams than bright-annealed tubes of the same size. In some situations, the slightly rougher surface texture is actually better because it helps coatings stick to the surface or lowers the resistance of the fluid boundary layer in turbulent flow conditions.
Performance Against Conventional Materials
In the past, stainless steel tubes were mostly used to build heat exchangers, but they can break down in places with chlorides, bromides, or acidic condensates. A comparison study that tracked the performance of condenser tubes in a coastal desalination plant found that 316L stainless steel tubes had to be replaced after 18 months because of pitting corrosion, but Gr2 Acid Pickled Titanium Tubes from the same installation kept working without any noticeable degradation after seven years. When lifetime costs like substitute labour, system downtime, and disposal costs were taken into account, the original material cost premium of about three to four times was shown to be economically justifiable.
Selecting and Procuring Acid Pickled Titanium Tubes for Heat Transfer
To do effective sourcing, you need to know both the technical requirements and the supplier's abilities. After 20 years of working in the chemical processing and heat transfer industries, we know what makes a project successful and what makes it a mistake that costs a lot of money.
Technical Specifications That Matter
The papers for procurement should make it clear which type of titanium is best for the job. The commercially pure grades (Gr1, Gr2) work best in high-corrosion, moderate-temperature situations up to 300°C. On the other hand, alloyed grades like Gr9 (Ti-3Al-2.5V) can withstand higher temperatures and more stress in pressure-containing parts. When choosing wall thickness, you need to think about both the pressure ratings and the amount of material that will be removed during pickling. Skilled manufacturers plan the initial dimensions to make sure that the measurements taken after pickling meet the requirements.

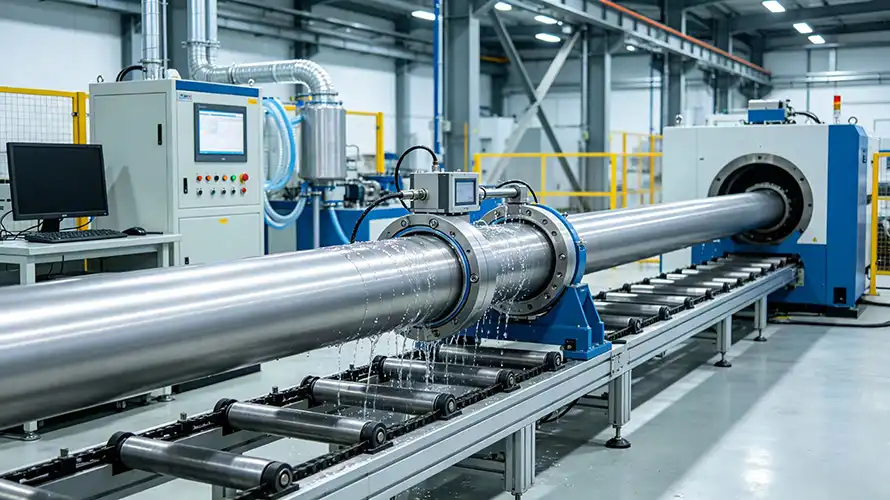

Setting goal roughness values (Ra) and acceptance standards for how it looks stops disagreements during inspection. Our quality standards include ASTM B338 flattening tests to make sure that pickling hasn't caused hydrogen embrittlement, as well as ultrasound and eddy current tests to find any flaws below the surface that the scale on top may have hidden before treatment.
Supplier Evaluation Criteria

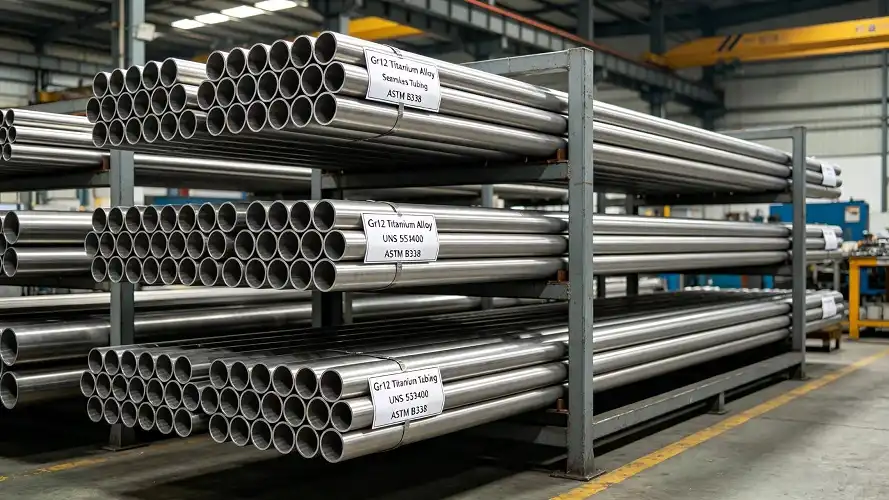

When picking a titanium tube maker, you need to look at both their professional skills and how reliable their business is. We keep about 3,000 tonnes of titanium in stock in a variety of types and forms, so we can quickly meet the needs of projects with tight deadlines. The 120,000 square meters of our building can handle the whole production line, from processing the billets to the final inspection. This gets rid of the quality problems that happen when companies outsource their work.
Verification of the certification is necessary—true ASTM compliance needs proof of tracking from the mill certificates of the raw materials through all stages of processing. Working together with places like Tsinghua University and partnering with the Northwest Institute for Nonferrous Metal Research gives us the technical base for both standard production and custom alloy development. With 4 idea patents and 41 utility model patents, we've turned our study into useful products, such as titanium-based composite tubes that are now being used at Luoyang Petrochemical and all-titanium air coolers that are sold in North America.
Maintenance and Longevity of Acid-Pickled Titanium Tubes
Choosing the right materials at the start is only the first step toward getting the most out of your tools. When you run your business correctly, you can make things last longer and save money on repairs.
Routine Care Procedures
The pickled surface doesn't need any protective layers to keep it from rusting, but simple care can make it work even better. Regular flushing gets rid of solids that have built up and could create cells with a high oxygen concentration below the scale. Titanium can handle a wide range of pH levels and chloride amounts that would quickly break down other materials. Copper alloys, on the other hand, need exact control over the water chemistry. Visual inspections done on a regular basis during planned maintenance breaks find any mechanical damage caused by bad handling or hitting something foreign. Titanium's resistance to corrosion doesn't cover abrasion from fast particles in streams that aren't properly filtered.
When cleaning is needed, light acidic or alkaline treatments get rid of organic buildup without hurting the base metal. If you use tools or abrasives that have iron in them, the particles inside can form galvanic cells that weaken the resistance to rust. When exposed to air, the passive oxide film reforms itself, which means that small scratches on the surface fix themselves without any help.
Long-Term Performance Data
Field experience in a variety of industries backs up the claims that Acid Pickled Titanium Tubes are durable. In a petrochemical complex, heat exchangers that work with acetic anhydride have been used for 12 years without any tube replacements, adding up to over 95,000 hours of use. In a power plant that uses brackish cooling water, shell-and-tube condensers haven't lost any wall thickness after nine years of continuous service. This is very different from admiralty brass or 90-10 copper-nickel tubes, which usually need to be replaced every three to five years for the same job.
Even though the initial costs of these installations were 2.5 to 3.8 times higher than those for traditional materials, they saved 34 to 47% in net present value over the 20-year lifecycle of the equipment because they didn't need to be replaced as often and had fewer maintenance breaks. If you don't throw away corroded tubes, you'll save money on environmental costs, but these numbers don't take into account the practical risks of unscheduled shutdowns.
Practical Applications and Real-World Case Studies
The benefits in theory don't mean much if they haven't been shown to work in tough real-world situations. Our track record of providing more than 500 sets of titanium equipment every year, along with our large market shares in the hydrometallurgy (70%) and coking sectors (90%), shows that our claims are true in a variety of fields.
Chemical Processing Excellence
A company that makes chlor-alkali needed to get heat back from concentrated brine streams that were 95°C and had 280 g/L of sodium chloride and chlorine left over. Earlier tries with steel sealed with polymer only lasted 14 months before the coating failed, letting the base metal attack quickly. For eight years and counting, our Gr2 seamless tubes with an acid-pickled finish did the job without any problems. The matte surface finish worked out well because it made the flow more chaotic, which stopped fouling from salts that formed crystals. This kept the heat transfer coefficients within 8% of their original design values throughout the service time.
Seawater and Desalination Success

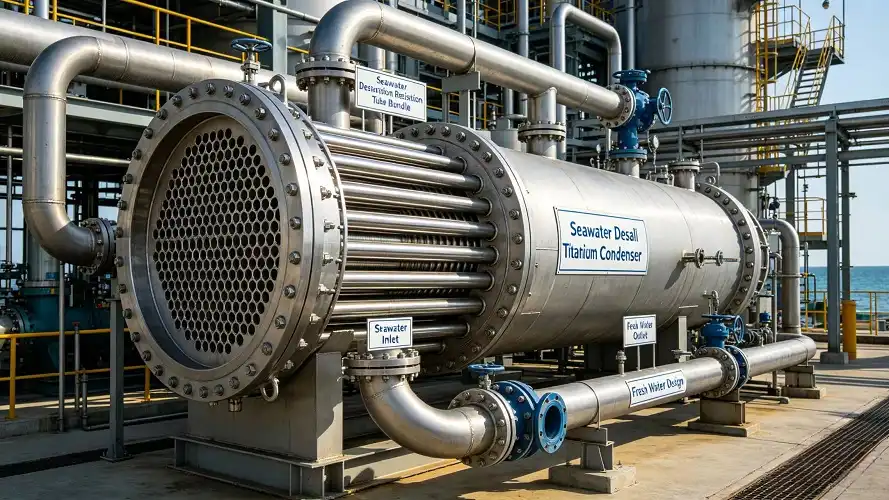

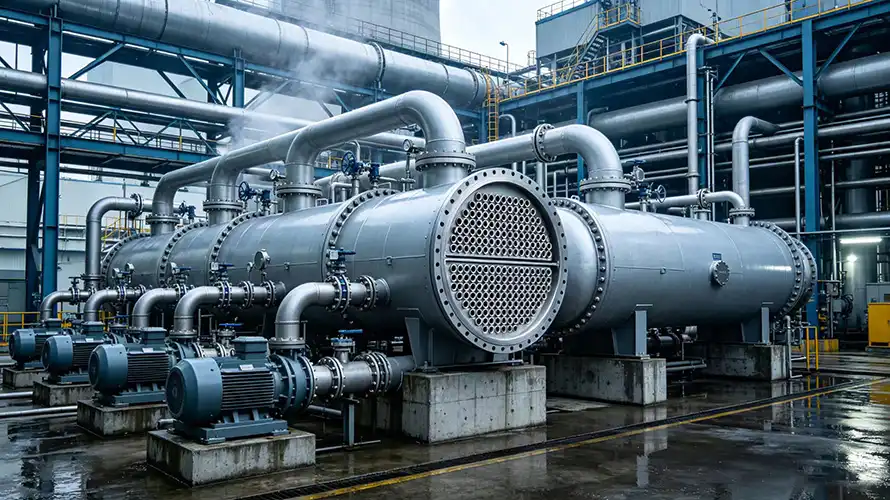

One of the most difficult situations for heat movement is in coastal power plants that use large amounts of seawater to cool condensers. A 600 MW plant replaced old copper-nickel condenser tube bundles with pickled titanium tubes and found several benefits besides better corrosion resistance. When compared to copper-nickel tubes that were fouled, the smoother surface meant that 11% less pumping power was needed. This led to measurable improvements in the efficiency of electricity generation. Biofouling, a problem that always happens with copper metals, even though they naturally kill microbes, got a lot better because sea organisms couldn't stick to the titanium surface as well.
Emerging Applications and Future Trends
As we move toward green science and environmentally friendly manufacturing methods, more uses for materials that don't rust are opening up. New carbon capture systems that use amine cleaning create harsh conditions that are hard for regular materials to handle. Our work on developing titanium reboiler tubes for these uses is showing good signs. Pilot systems have been running for two years without any problems. The material works well with both amine solutions and acidic regeneration conditions, which makes it a top choice for carbon capture on a global scale.
Next-generation study on surface treatment of Acid Pickled Titanium Tube looks into mixed methods that combine acid pickling with micro-texturing to improve the heat transfer rates for nucleate boiling. Lab tests show that these surfaces might be 15–22% better at transferring heat during cooking than regular pickled surfaces. This means that heat exchangers could be smaller or temperatures could be lowered in processes that are sensitive to heat.
Conclusion
Choosing a titanium tube with the right surface treatment is a smart choice that affects how reliable it is, how much it costs to maintain, and how much it costs over its entire life. The acid pickling process turns raw titanium tubes into corrosion-proof assets that can last for decades in places where other materials break down quickly. We can support procurement needs in chemical processing, power generation, desalination, and new uses thanks to our wide range of manufacturing skills, such as keeping a wide range of grade stocks and using precise processing and strict quality control. Installations around the world have shown that the initial investment in Acid Pickled Titanium Tubes pays off in the long run by eliminating the need for replacements, cutting down on maintenance work, and increasing the amount of time that the system is operational.
FAQ
1. What distinguishes acid-pickled from bright annealed titanium tube surfaces?
The main difference is the working setting and the finish that is made. Bright-annealed tubes are heated in a vacuum or an inert atmosphere, which stops oxide from forming on the surface and makes it shiny and reflective. Acid Pickled Titanium Tubes, on the other hand, are heated up in a normal atmosphere and then chemically treated to get rid of the oxide scale that forms. This gives the tubes a uniform dark grey look. Pickling gets rid of all alpha case or surface contamination, so it's the best option when purity below the surface is more important than appearance.
2. Does the pickling process reduce tube wall thickness?
Chemical pickling does take away some stuff, usually only 0.02-0.05 mm off the surface. Reputable manufacturers take this removal into account by engineering initial wall thickness tolerances that make sure the final dimensions meet the requirements after pickling. To make sure we're following ASTM B338 and other related standards during production, we do measurement checks before and after pickling.
3. Can pickled titanium tubes be painted or coated?
Acid-pickled surfaces have a matte finish that works great for mechanically adhering paints, primers, and sticky coats. Because this rougher profile makes bonding better than smooth bright annealed finishes, Acid Pickled Titanium Tubes are a better substrate for applying a coating later on. Degreasing and light abrasion of the surface are important for making sure that the layer sticks and can withstand changes in temperature and chemical contact.
Partner with Jucheng Titanium: Your Trusted Acid Pickled Titanium Tube Supplier
We have been working in the titanium industry for 20 years and are known across the country as a specialised "little giant" business. This makes Jucheng Titanium the perfect partner for your strategic manufacturing needs. We keep a large stock of all common grades, which lets us meet tight project deadlines with delivery schedules while our engineering team works together on custom specifications for specific uses. We make every tube with the same level of accuracy that puts us at the top of the markets in the hydrometallurgy and coking industries. This is true for both regular catalogue items and parts for specialised heat transfer equipment. Get in touch with our expert sales team at s4@juchengti.com to talk about your unique needs and find out how our Acid Pickled Titanium Tube options can make your equipment more reliable while lowering its lifecycle costs.
References
1. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.
2. Schutz, R. W., & Thomas, D. E. (1987). Corrosion of Titanium and Titanium Alloys. In Metals Handbook (9th ed., Vol. 13, pp. 669-706). ASM International.
3. American Society for Testing and Materials. (2021). ASTM B338-21: Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers. ASTM International, West Conshohocken, Pennsylvania.
4. Donachie, M. J. (2000). Titanium: A Technical Guide (2nd ed.). ASM International, Materials Park, Ohio.
5. Francis, R., & Byrne, G. (2010). Titanium in the Hydrocarbon and Chemical Processing Industries. In Shreir's Corrosion (4th ed., Vol. 3, pp. 2330-2359). Elsevier.
6. Cotton, J. B. (1970). The Role of Surface Condition in the Corrosion Resistance of Titanium. Journal of the Electrochemical Society, 117(1), 8-17.
