How Do You Specify Sheets of Titanium for Custom Fabrication Projects?
In choosing the right grade, size, and finish for sheets of titanium for bespoke fabrication, you need to consider the mechanical and environmental requirements of your application. Titanium flat-rolled material includes a wide variety of items, from commercially pure Grade 1 for the best ductility to high-strength Ti-6Al-4V for aerospace structural items. Before contacting any supplier, identify thickness, width, length, appropriate standard processing conditions, and surface treatment. Getting the specs right the first time eliminates costly rework and delays in procurement.
Understanding Titanium Sheets and Their Key Properties
Titanium flat plate isn’t just any metal; it has its own special features that make it irreplaceable in severe conditions. Titanium is around 57 percent lighter than carbon steel, with a density of 4.51 g/cm3. It is the perfect structural feedstock for aerospace, chemical processing, and biomedical production. Its tensile strength is 240 MPa for Grade 1 and 895 MPa or more for Grade 5 alloy.
Titanium, when exposed to air, generates a naturally occurring, strong, self-renewing titanium dioxide coating. It is this passive layer which inhibits stress corrosion cracking by chloride, the major failure mechanism for 316L stainless steel in salt water, brines, and acids. Procurement professionals who acquire long-term equipment like chemical reactors or plate heat exchangers will employ high-grade sheets of titanium, translating to a decreased total lifetime cost.
So you have grades 1, 2, 4, 5, 7, 9, and 12 to pick from. It’s a trade-off between how easy it is to work with and how well it performs mechanically:
- Grade 1: Minimum strength, maximum ductility. It is applicable to deep drawing and forming in equipment used in chemical processing.
- Grade 2: The workhorse of the industry. Very weldable, high strength. Most of the plates of the heat exchanger and industrial pipes are made of ASTM B265 Grade 2.
- Grade 4: High strength and high flexibility. Used in industrial and medical applications when a more robust commercial pure material is needed.
- Grade 5: This is the world’s most widely used titanium alloy. AMS 4911 provides specifications for titanium sheet for aviation. Provides tensile strength of more than 895 MPa and good fatigue protection for structural aircraft parts.
- Grade 7: With 0.12 to 0.25% palladium, this grade is less likely to rust than Grade 2 in less acidic settings.
- Grade 9: Medium strength alloy, simpler to work than Grade 5, and stronger than CP grades. Frequently used for sports goods and hydraulic tubing.
Grade 12: Has molybdenum and nickel; thus, it is more resistant to crevice corrosion and high temperatures. It is a good choice for heat exchangers working with hot brines.
These differences become most important when you are establishing a purchase specification. Picking the wrong kind may either make the part not function correctly, or cost a lot more than is necessary for the application.
Criteria for Specifying Titanium Sheets in Custom Fabrication
A good design paper protects the mill and the customer. It must specify the grade, any size or shape limitations, the relevant standard, the stage of processing, and the state of the surface. Expect nothing, record everything.
Dimensional Parameters to Lock In
Jucheng Titanium provides hot-rolled titanium plates with thicknesses from 4mm to 80mm, widths from 950mm to 2,500mm, and lengths from 950mm to 10,000mm. Custom Titanium sheets are also available upon request. For buyers requiring sheets of titanium, listing the standard measurements with the ASTM B265 thickness tolerance class may reduce review disagreements. Residual curvature in hot-rolled plate is an intrinsic characteristic and may be addressed by levelling; hence stricter flatness requirements should specifically include levelling tolerances.

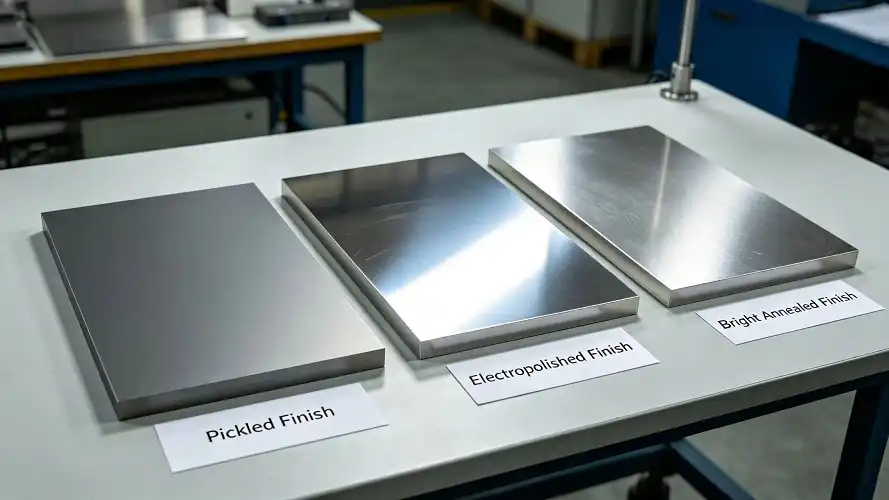

Surface Finish and Processing State Requirements
The surface condition directly influences the down-the-line production and service performance. 3 main alternatives for making the purchase:
- Acid Pickled: Removes the blue-black oxide scale developed during annealing, resulting in a smooth, matte-silver finish. Industry & Construction Applications. Many standards.
- Machined: More control of small dimensions is required when two areas need to be very parallel to each other. Usually used to make right parts.
- Polished: Smoothed the surface for easier cleaning and to prevent cracking and rust. Recommended for storage of medical equipment and for use in contact with food.

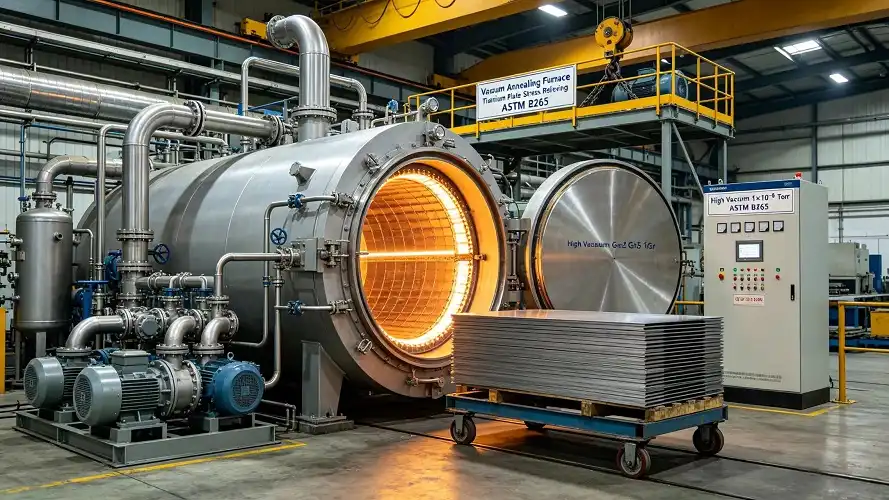

Jucheng titanium plate is in the state of annealed processing. This is a thermomechanical treatment that reduces rolling stresses, restores ductility, and normalises grain structure such that the mechanical qualities are homogeneous across titanium sheets.
Sourcing and Procuring Titanium Sheets: What B2B Buyers Need to Know?

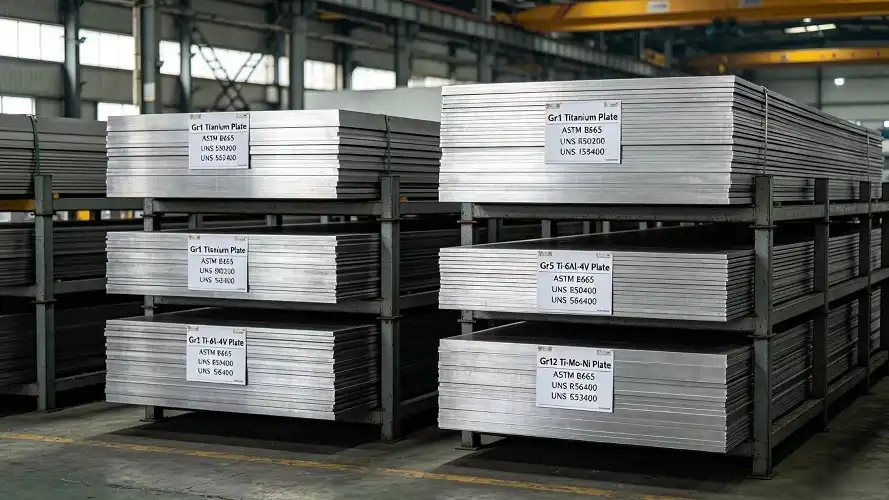

When purchasing managers only look at unit price, they often find quality problems that cost more to fix than the difference in price they saved. When judging a supplier, you need to look at their mill certifications, traceability documentation, ability to process, and inventory depth.

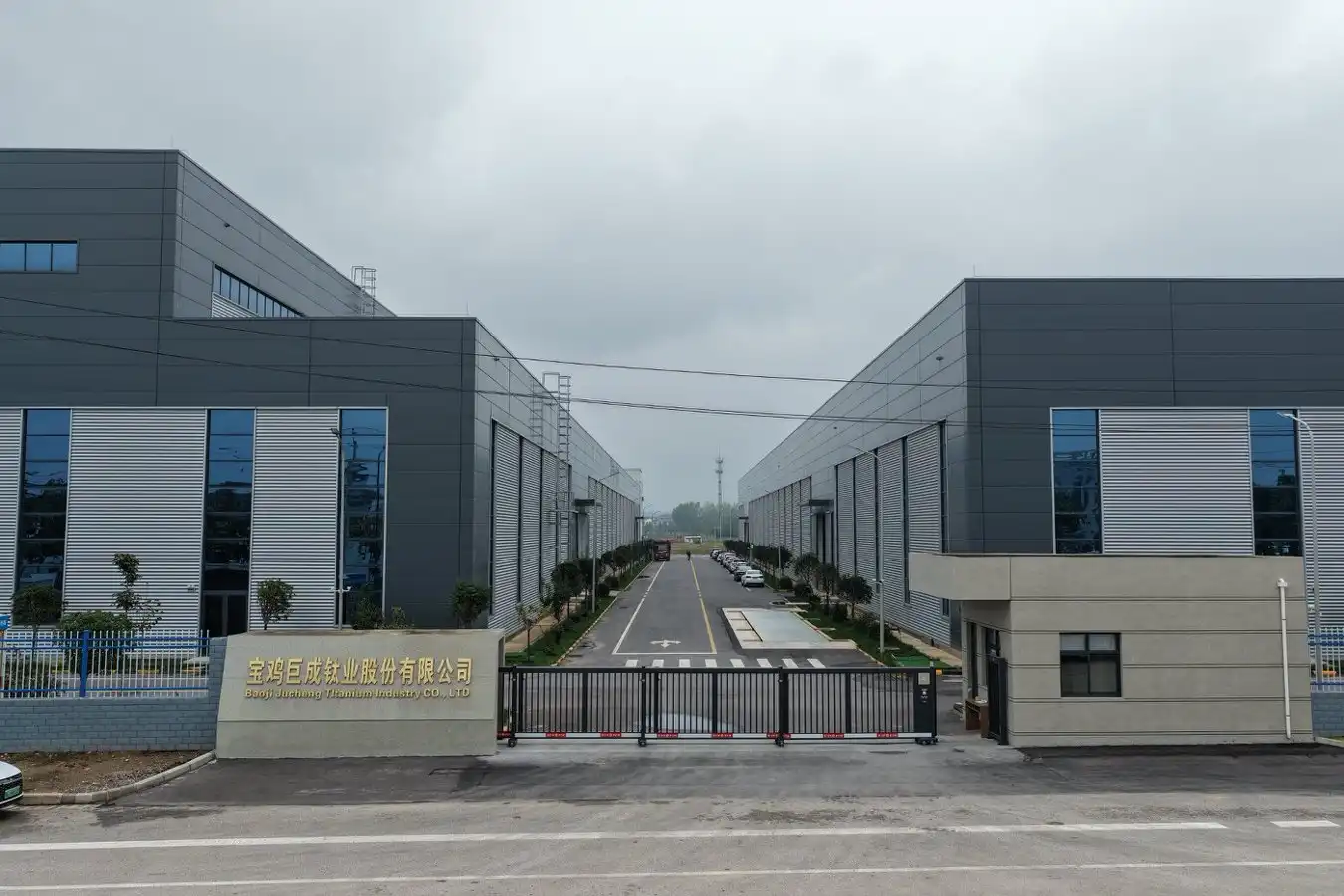

The company Jucheng Titanium was established in 2004 and is based in Baoji, which is known as China's titanium-producing center. It keeps around 3,000 metric tons of titanium sheets in stock all year. When compared to make-to-order mills, this standing stock cuts lead times by a huge amount, which is a huge benefit when project schedules are tight. The business has been named a National High-Tech Enterprise and has 4 invention patents and 41 utility model patents too. As standard, certifications and material test reports that can be linked to a heat number are provided. These meet the requirements of ASTM B265, ASTM F67, AMS 4911, and ASME SB265.
When purchasing sheets of titanium in bulk from a company that does rolling, annealing, leveling, pickling, and surface finishing all under one roof, handling damage and gaps in inter-supplier traceability are eliminated. This is a real reduction in supply chain risk that purchasing managers often don't recognize.
Real-World Applications of Titanium Sheet Specification
Specification choices are based on theory, but the results of the project prove them. In all fields, getting the grade and surface condition right during the design stage is what determines whether the manufacturing process goes easily or stops at the first review.
In aerospace, AMS 4911-compliant Ti-6Al-4V sheets of titanium are used for firewall panels and engine nacelle parts because they can handle repeated thermal loading up to 300–400°C without creep deformation, which is a way that aluminum fails at high temperatures and makes it unsuitable for use. In chemical processing, ASTM B265 Grade 2 corrugated plate heat exchangers installed in chlor-alkali plants usually last ten years or more longer than their 316L stainless steel counterparts. This means that the plants don't have to be shut down every year to fix stress corrosion cracks. For active medical devices that are implanted, ASTM F67 Grade 4 sheet gives the higher yield strength needed for thin-walled housings without affecting MRI or biocompatibility.
Each of these results can be traced back to a well-written initial specification. For example, the grade chosen for the environment, the tolerances for size and fit, and the surface state chosen for the process that comes after.
Best Practices for Specifying Titanium Flat Plate
Cost overruns can be avoided by being precise in the design stage. When you write your specification document for sheets of titanium in a structured way, you make sure of these important points:
- Make sure you know the temperature range, chemical exposure, and mechanical loads that will be used before you start planning the dimensions.
- Be clear about the main standard: ASTM B265 is for structural and industrial uses, AMS 4911 is for aerospace alloy sheet, ASTM F67 is for medical implant-grade CP titanium, and ASME SB265 is for pressure vessel uses.
- Define the surface treatment and processing state: an annealed state with an acid-pickled finish is the standard; only when the application calls for it should the surface be polished or machined.
- For aerospace, military, and medical purchases, you must get material test reports and heat traceability with every order.
- Plan for springback when cold-forming titanium. Titanium has a lower amount of elasticity than steel, so you need to make changes to the tools you use and the way you figure out the bend radius.
Together, these practices cut down on design mistakes, rejected new inspections, and fabrication rework, all of which eat away at project margins without being noticed.
Conclusion
The right way to specify titanium flat plate is through a structured method, not by guessing. These steps—choosing the right grade from the range of commercially pure and alloys, comparing the project's dimensions to a known standard, describing the processing state and surface treatment, and working with a supplier who keeps certified inventory and traceability records—determine whether the custom fabrication project is completed on time and on budget. Providing precise requirements for sheets of titanium is worth the extra work because the material has a unique mix of low density, high strength, and resistance to corrosion. Projects that succeed and those that fail are separated by how well that work is done from beginning to end.
FAQ
1. What titanium grade should I specify for a chemical heat exchanger?
It is recommended that heat exchanger plates be used in ASTM B265 Grade 2 environments that contain chlorine, salt, and mild acids. If you are worried about crevice corrosion in hot brine, Grade 12 or Grade 7 will make the sheets of titanium much more resistant to corrosion without the higher cost of alloy grades.
2. How does titanium plate compare to 316L stainless steel for corrosion resistance?
It is much more stable than the chromium-oxide film on stainless steel when it comes to a wide range of electrical conditions. In chloride-rich or acidic conditions, 316L stainless steel experiences pitting and stress corrosion cracking that sheets of titanium do not experience. This makes equipment last a lot longer.
3. What does "annealed" processing state mean on a mill certificate?
Annealed means that the material was heated after rolling to get rid of any remaining stresses and make it more flexible again. This is the normal way to process hot-rolled titanium plate, and it makes sure that the mechanical properties and shapeability are the same across the whole sheet, which is important for knowing what will happen during fabrication.
4. Can Jucheng Titanium supply custom dimensions outside standard stock sizes?
Yes, Jucheng Titanium can make titanium plate in any length, width, and thickness that you want. The thickness ranges from 4 mm to 80 mm, the width from 950 mm to 2,500 mm, and the length can go up to 10,000 mm.
Partner with Jucheng Titanium — Your Trusted Titanium Sheet Supplier
Precision titanium plate from Jucheng Titanium has been sent to aerospace, chemical, and industrial customers in North America and around the world for more than 20 years. We have 3,000 tons of stock on hand; we follow all ASTM B265, AMS 4911, and ASME SB265, and we can make custom parts for Grades 1 through 12. This means we are ready to help you with your next project. To get a price for certified sheets of titanium directly from the maker, please email our technical team at s4@juchengti.com.
References
1. ASTM International. ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International, 2020.
2. ASM International. Titanium: A Technical Guide, 2nd ed. ASM International, 2000.
3. Donachie, Matthew J. Titanium: A Technical Guide. ASM International, 2000.
4. Boyer, Rodney R., Welsch, Gerhard, and Collings, E.W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.
5. Lutjering, Gerd, and Williams, James C. Titanium, 2nd ed. Springer, 2007.
6. Peters, Manfred, and Leyens, Christoph, eds. Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH, 2003.
