How Is Titanium 6Al4V Sheet Cut and Formed?
Titanium 6Al4V sheet, also known as Ti-6Al-4V or Grade 5, is the most commonly used titanium alloy in industrial fabrication, accounting for more than 50% of the titanium used worldwide. The high tensile strength and low heat conductivity and tendency to work harden of this alloy need special procedures for cutting and shaping. If you are purchasing material for aviation structural panels or for chemical processing equipment, it is crucial to know how this alloy will perform during fabrication, because this will directly affect part quality, cost, and lead time.
Understanding Titanium 6Al4V Sheet: Properties and Composition
Chemical Makeup and What It Means for Fabrication？

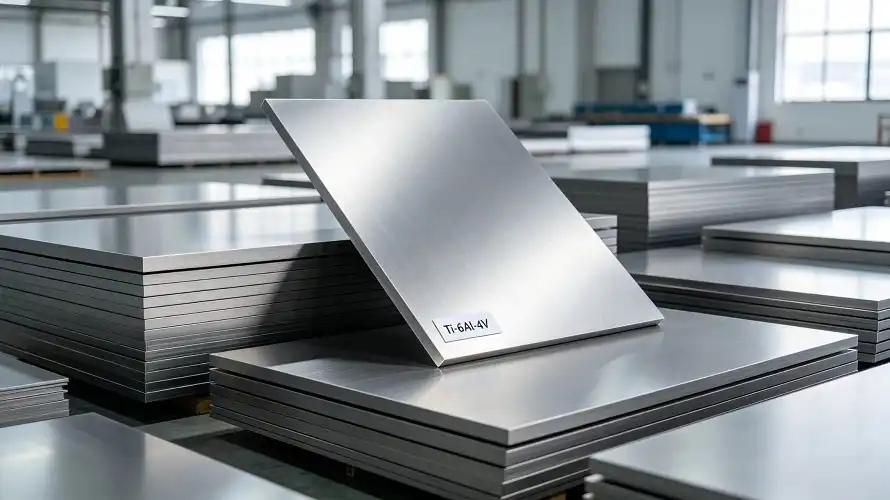

The metal Ti-6Al-4V consists of 90% titanium, 6% aluminum, and 4% vanadium. The density in the as-received condition is 4.43g/cm3. Yield strength of 828 MPa or above. Hardness 30-36 HRC. The elastic modulus is 113.8 GPa, which is substantially less than steel; hence, the spring-back is visible while bending. All subsequent decisions in the manufacturing process are governed by these physical parameters.
Jucheng Titanium carries Grade 5 Sheet in compliance with ASTM B265, AMS 4911, and ASME SB265. The sheet is offered in lengths up to 10,000 mm, widths from 950 mm to 2,500 mm, and thicknesses from 4 mm to 80 mm. Available Types: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 They are hot-rolled and annealed before delivery. The surfaces may be acid-etched, polished, or machined.
Challenges in Cutting and Forming Titanium 6Al4V Sheet
Why Standard Tooling Falls Short？

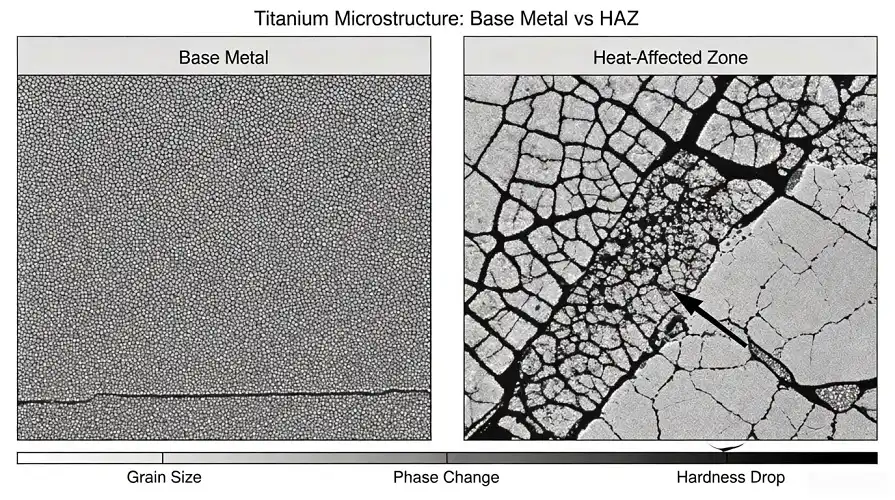

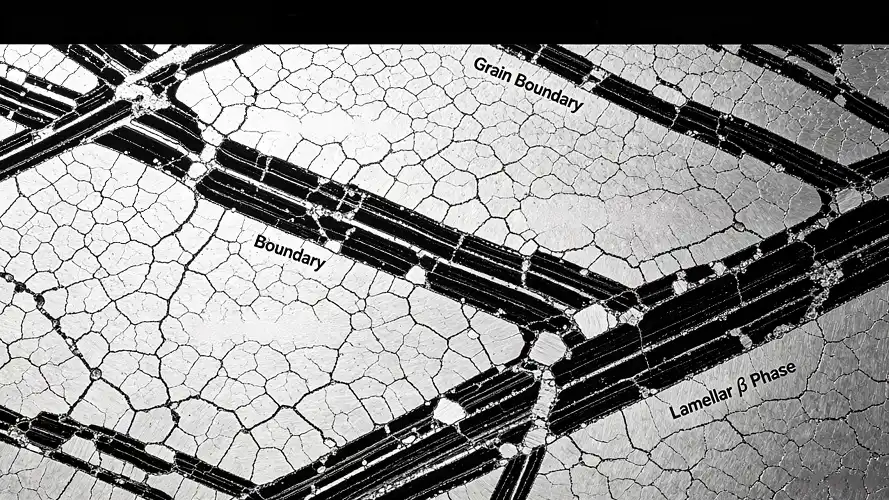

The metal transmits roughly one sixth as much heat as steel. When cutting or grinding, heat is produced at the point of contact between the tool and the workpiece. The heat is not conducted through the material but tends to collect at the point of contact. This leads to greater tool wear, galling, and a higher probability of a heat-affected zone, which alters the microstructure and hence reduces fatigue resistance at the point where it is most critical for the structural integrity.

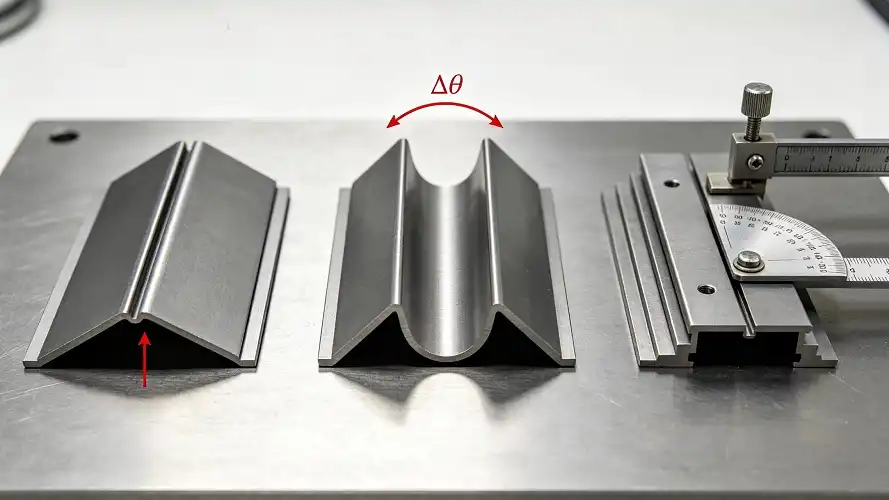

The high yield-to-tensile-strength ratio also produces a lot of elastic spring-back after bending; hence, engineers used to stainless steel need to design for greater bends than they would normally do. You have to be careful constructing tight radii. As a rule of thumb, the minimum bend radius in the industry is 3T to 6T depending on the thickness of the sheet. If you don’t, it will crack the surface and give you bits back.
Advanced Cutting Methods for Titanium 6Al4V Sheet
Choosing the correct cutting method is no easy task. It affects the accuracy of the measurements, the quality of the edges, and the success or failure of the succeeding stages of the process. Three technologies have been found to be most compatible with Grade 5 titanium sheet for industrial use.

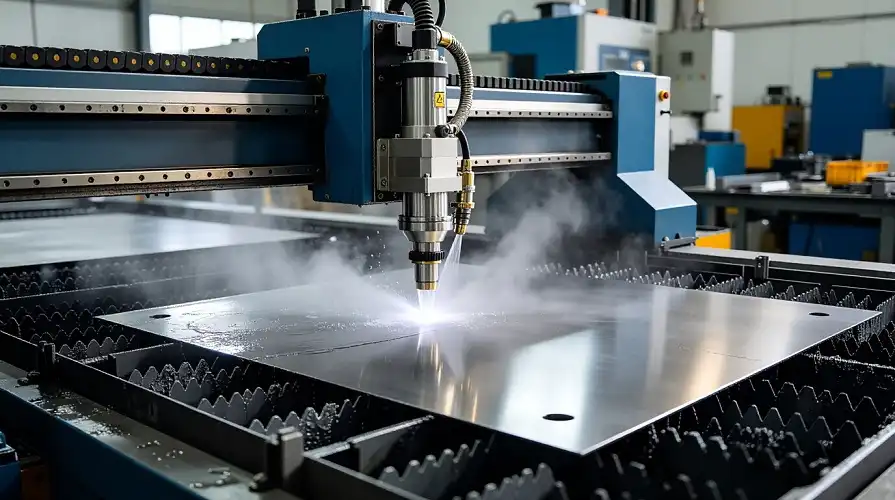

- Waterjet cutting uses a high-pressure spray of water, mixed with particles of abrasive, to cut materials such as a titanium 6Al4V sheet without the need for heat. This eliminates the HAZ completely, preserving the metallurgical integrity of the alloy at the cut edges. Waterjet is the ideal technology for cold cutting in aerospace and medical applications where edge qualities are non-negotiable.

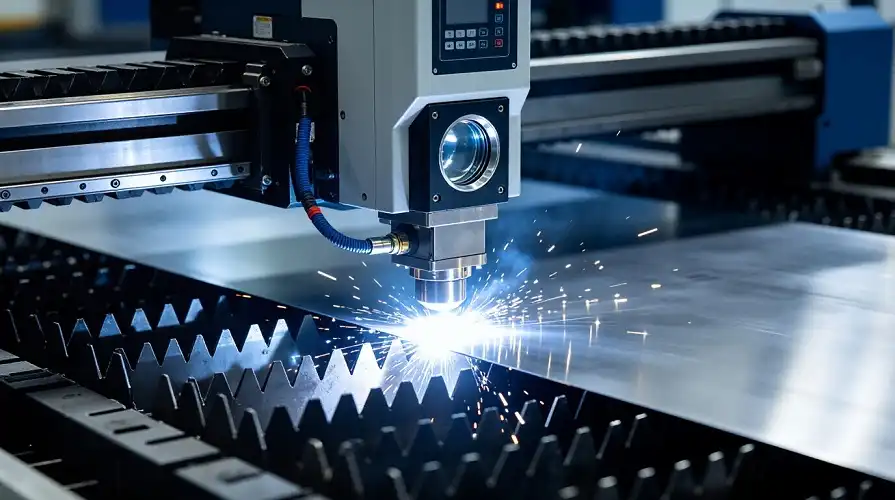

- Laser cutting with inert gas shielding can be used to produce high-speed, high-precision cuts on sheet thicknesses up to 20 mm. You can shield with argon or nitrogen to remove oxygen and prevent oxidation and the possibility of a titanium fire. The process gives tight tolerances but calls for careful control of the energy input to limit the thermal effects on the cut edges.
- Electrical discharge machining is employed for complex geometries and narrow precision profiles that cannot be obtained mechanically. EDM uses controlled electrical discharges to remove material. That means less mechanical stress. It is a slower, more expensive unit-wise, but necessary for complex aircraft brackets or medical implant profiles.
Each technique is more suitable for a certain combination of sheet thickness, rate of manufacture, and complex shapes. A purchasing manager should ask their supplier what cutting method they use when ordering cut-to-size titanium sheet. This is due to the strong influence of the cutting procedure on the quality of the edges and the fatigue life of the sheet.
Forming Techniques for Titanium 6Al4V Sheet
Bending, Roll Forming, and Hydroforming

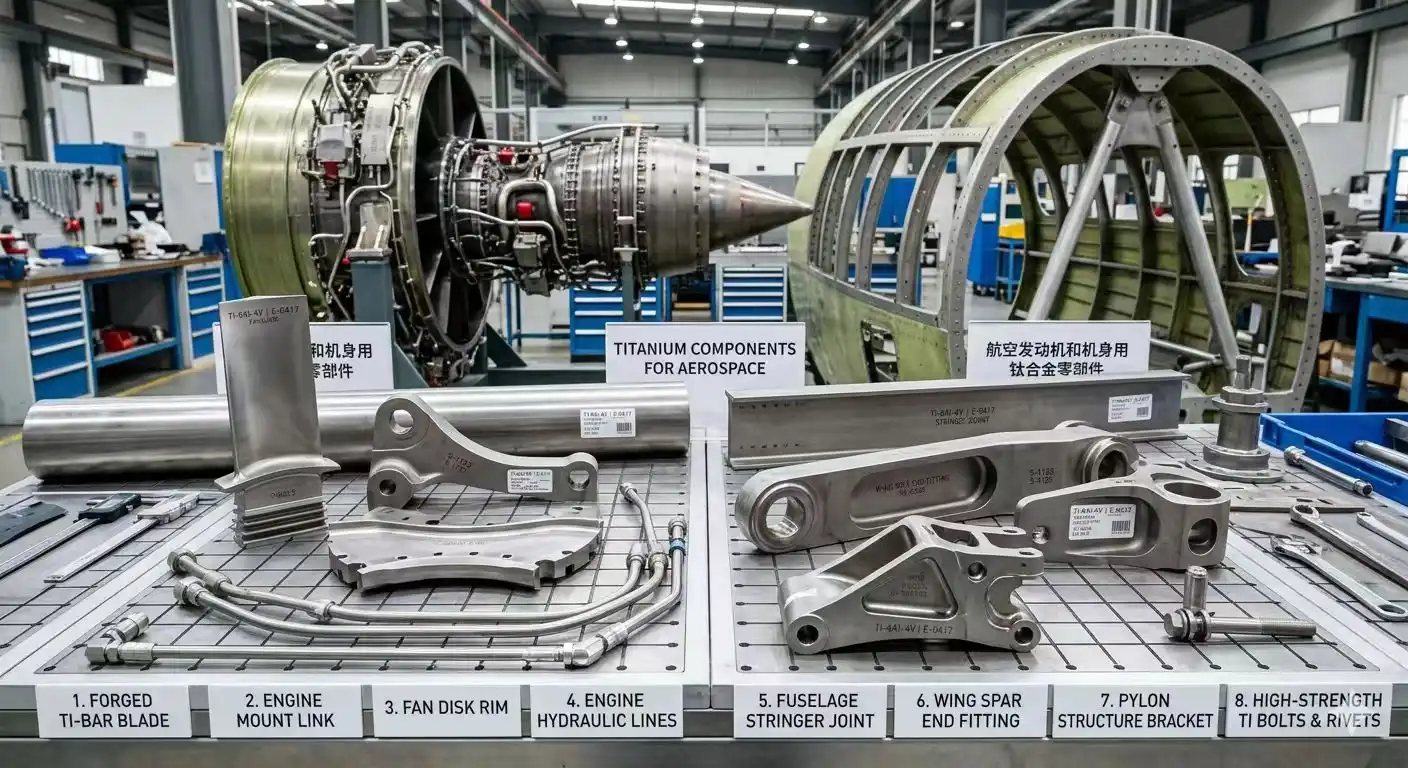

For small angles, it is possible to bend a Grade 5 sheet cold, but you need to use tools that take spring-back into account. Hot forming, which is usually done between 600°C and 900°C, makes the material much more flexible and allows for tighter radii with a lower risk of cracking. Roll forming is good for making curved parts of structures, while hydroforming, which is popular in aircraft fuselage panels, uses fluid pressure to make complex shapes with uniform wall thickness.
The Role of Stress Relief Annealing

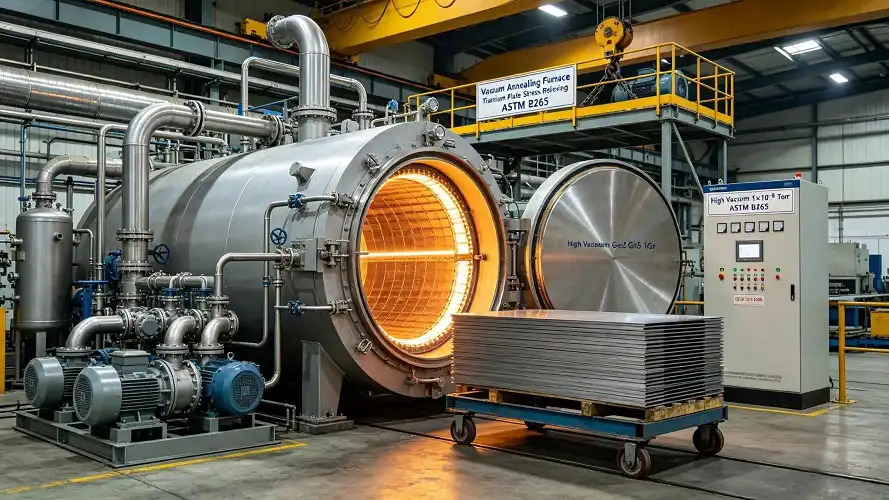

After the material has been formed, leftover forces build up inside it. Stress relief annealing, which is done at 480–650°C for one to four hours, lowers these pressures without changing the microstructure or mechanical features of the metal much. If you skip this step, you could end up with dimensional instability and failure due to premature fatigue in service. As part of full material traceability, AMS 4911 standards for aerospace parts usually require proof of post-form heat treatment.
Titanium 6Al4V Sheet vs. Other Materials in Cutting and Forming
When buying teams compare Grade 5 titanium to other options, it's easy to see how well it works. Here's how Ti-6Al-4V titanium 6Al4V sheet stacks up in terms of important performance and manufacturing factors:
- vs. 316L Stainless Steel: Grade 5 titanium delivers comparable strength at 43% less weight. However, it costs more per kilogram and demands more controlled cutting environments. For aerospace and weight-critical defense applications, the mass savings justify the processing investment.
- vs. Commercially Pure Titanium: CP titanium is softer, more ductile, and far easier to cold-form. Grade 5 outperforms it dramatically in tensile and fatigue strength, making it the correct choice when structural loads are the governing design criterion.
- vs. Aluminum Alloy 7075: 7075 aluminum offers better machinability and lower material cost. Grade 5 titanium surpasses it in operating temperature range, corrosion resistance in saltwater, and long-term fatigue life—advantages that matter in offshore and aerospace environments.
These trade-offs help engineers choose materials that balance the difficulty of making them with the performance needs of the end use.
Procurement Considerations for Titanium 6Al4V Sheets

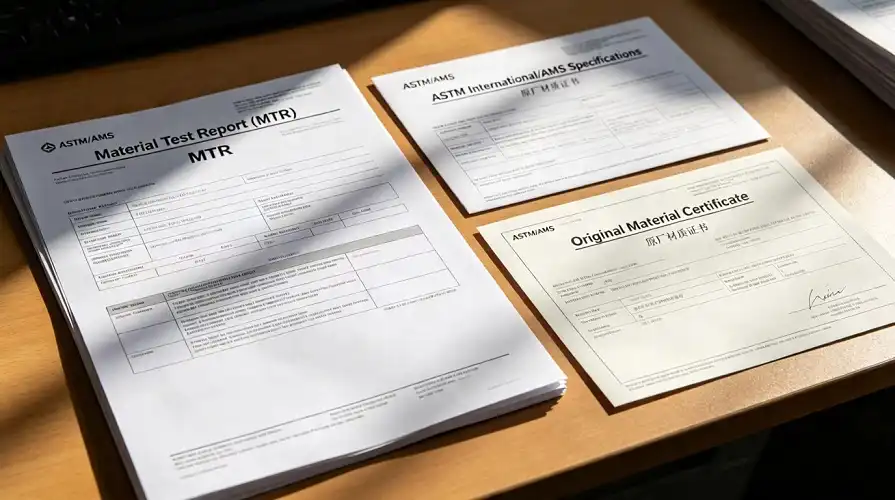

There's more to finding Grade 5 titanium sheet for commercial uses than just comparing prices per kilogram. The most important requirement is that the certification can be tracked back to the original melt. All qualified suppliers must provide mill test reports that confirm the chemistry, mechanical test results, and heat treatment conditions according to ASTM B265 or AMS 4911.

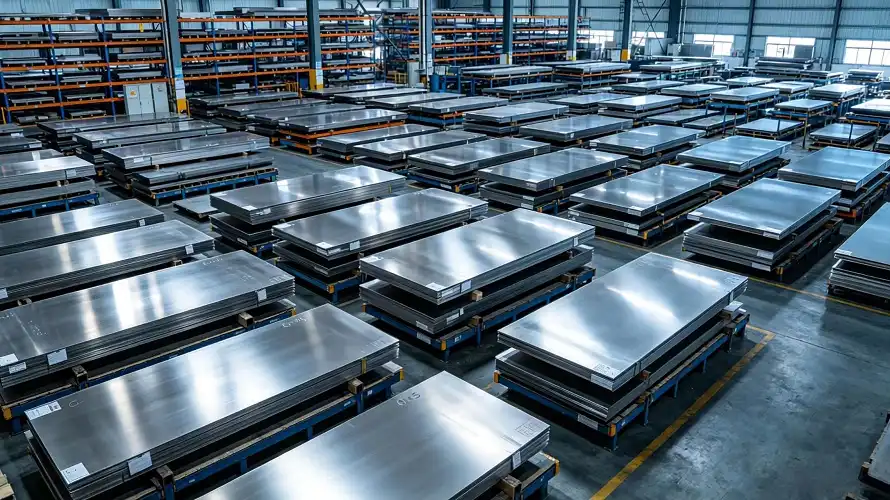

Both lead time and inventory depth are important. Jucheng Titanium keeps about 3,000 tons of different types of titanium in stock all year, so they can quickly ship orders that need to be made right away. Cutting materials to specific sizes—from 4 mm to 80 mm thick, 2,500 mm wide, and 10,000 mm long—cuts down on waste and processing time at your plant.
Jucheng Titanium has been in business for twenty years and has 45 patents, four for inventions and 41 for utility models. The business is a national high-tech firm and a national-level specialized "little giant" firm. These names let foreign buyers know that the company is serious about research and development and has a strict quality system.
Conclusion
Titanium 6Al4V sheet is hard to cut and shape, but the properties it offers—lightweight structure strength, resistance to wear, and rust resistance in harsh environments—make the trouble worth it. The heat sensitivity problem can be solved with waterjet and laser cutting with gas protection. The flexibility problems can be solved with hot forming and post-form annealing. The most important engineering decision is choosing the right method for your thickness, shape, and certification needs. The procurement risk that often derails industrial projects can be avoided by buying from a provider whose inventory has been checked, whose MTRs can be fully tracked, and who can do custom processing.
FAQ
1. What is the minimum bend radius for Grade 5 titanium sheet?
For cold forming, the minimum bend radius is usually between 3T and 6T, which is three to six times the thickness of the material. This depends on the heat and thickness of the sheet. To keep them from breaking, thicker gauges and tighter curves usually need to be hot shaped above 600°C.
2. Which cutting method best preserves edge integrity?
Since waterjet cutting doesn't use any heat, it's the best option when edge steel can't be changed. For smaller gages where speed is important, laser cutting with inert gas protection is a good option.
3. Does the Ti-6Al-4V sheet require post-form heat treatment?
You should definitely do stress relief annealing after forming. In fact, aerospace standards like AMS 4911 often require it. It lowers leftover stress and makes the structure more stable without changing its mechanical features.
4. What certifications should a supplier provide?
Suppliers you can trust must give you mill test reports that go back to the melt and prove that they meet ASTM B265, AMS 4911, or ASME SB265. The reports must also clearly state the heat treatment condition.
