How to Check Gr12 Titanium Plate Quality and Certification Documents
When you buy Gr12 titanium plate for aerospace, chemical processing or industrial applications, you need to be sure of the material quality and verification of documents. Gr12 titanium plate should meet ASTM B265 or ASME SB265 specifications, with a minimum of 483 MPa tensile strength and 345 MPa yield strength. For verification to be reliable it should include physical inspection, examination of the MTR and independent lab testing. This handbook leads procurement experts through every hurdle to ensure authenticity, compliance and performance before a transaction is made.
Understanding Gr12 Titanium Plate Quality Standards
What Makes Gr12 Technically Distinct？
Gr12 titanium plate has a special niche in performance among titanium grades. Targeted alloying with 0.3% Molybdenum and 0.8% Nickel creates a self-healing passivation layer resistant to crevice corrosion in hot brines up to 260°C and low pH chloride environments, circumstances where Grade 2 would quickly fail. It has a density of 4.51 g/cm³ and preserves the low weight advantage of titanium but has a mechanical strength that is superior to the commercially pure grades.
Applicable Standards and Grade Comparison
A good manufacturer of Gr12 titanium plates should meet the following standards:
- ASTM B265 — Specification for Titanium Strip, Sheet, and Plate for Industrial application — This specification covers titanium strip, sheet, and plate for industrial application, including restrictions on chemical composition and mechanical properties.
- ASME SB265 – the pressure vessel equivalent needed for heat exchangers and chemical reactors constructed under ASME code.
- AMS 4911 Aerospace titanium sheet and plate with stricter traceability requirements.

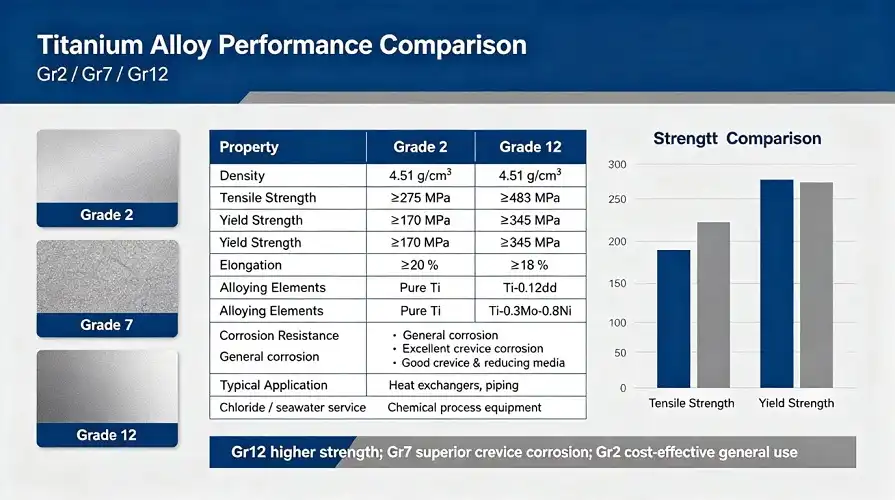

When you are buying Gr12 titanium plate it is important to know where it falls in relation to other grades. Grade 7 does have somewhat better corrosion resistance in severe reducing acids, but Gr12 titanium plate gives around 90% of that performance at 50-60% of the cost - the logical option for most corrosive industrial situations that don’t reach the absolute extremes.
Step-by-Step Process to Verify Gr12 Titanium Plate Quality
Physical Inspection Criteria

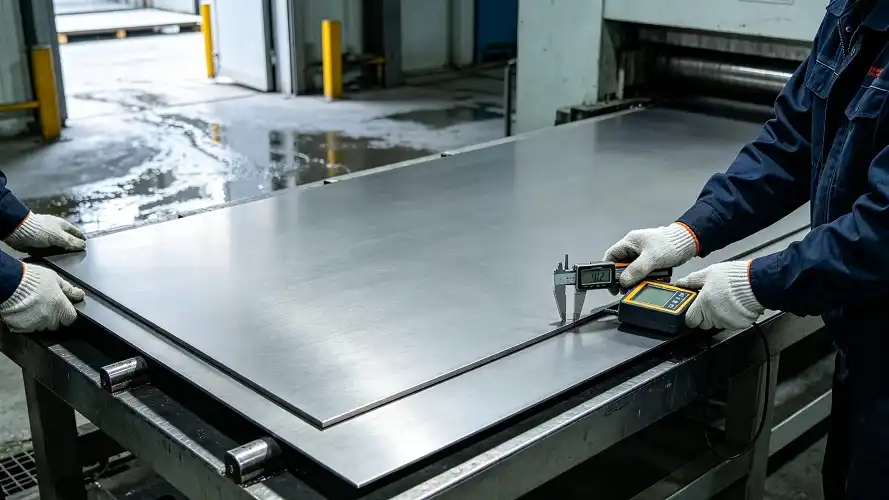

Look at the Gr12 titanium plate before you look at any papers. The following visible criteria for hot-rolled titanium plate from a credible supplier, processed by annealing, levelling, pickling and surface finishing, should be included:
- Surface finish as per treatment requested i.e. acid pickled, polished or machined without pitting, cold shuts or oxide inclusions.
- Dimensional conformance : Thickness tolerance as per ASTM B265 specifications within the plate, thickness from 4 mm to 80 mm, width from 950 mm to 2500 mm and length upto 10,000 mm.
- Flatness and edge quality confirming proper levelling during processing.
Physical irregularities often are clues of shortcuts taken in the annealing or pickling process. Reject material with uneven surface colour, which may indicate incomplete heat treatment.

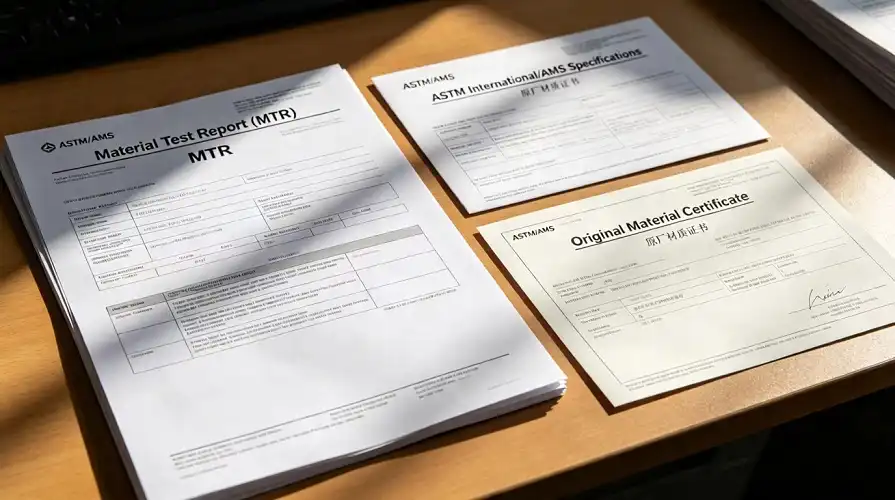

Reviewing Certification Documents
Move to documentation after passing the physical inspection. The full certification package for Gr12 titanium plate shall include:
- Mill Test Report: Confirms actual chemical composition to verify Mo content at 0.2-0.4% and Ni at 0.6-0.9% per ASTM B265 Table 1. Includes tensile strength, yield strength and elongation results from production heat.
- Certificate of Compliance: Indicates that the material is in compliance with the specified standard and is traceable to a specific heat/lot number.
- Non-Destructive Testing Report: Ultrasonic or dye penetrant testing results to confirm that there are no internal defects especially for plates used in pressure vessels or aerospace applications.
Refer to the physical plate marking heat number against the MTR. A discrepancy between stamped identity and document data is a serious red flag.
Third-Party Laboratory Verification

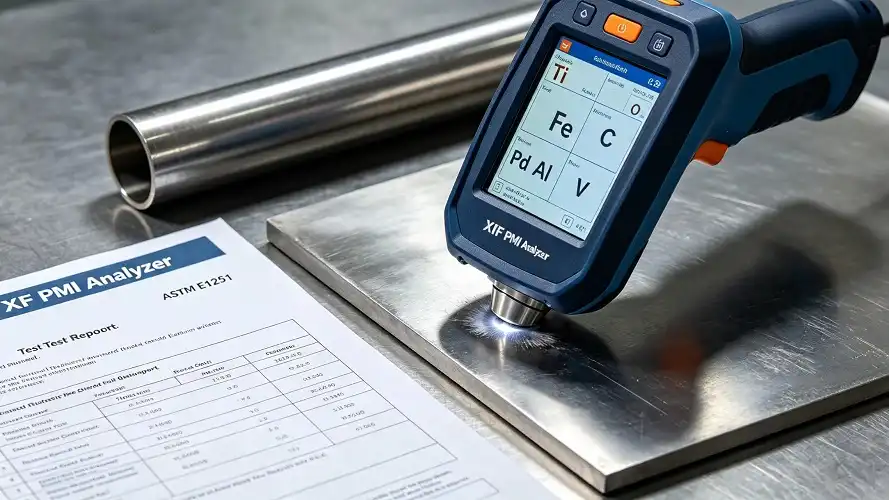

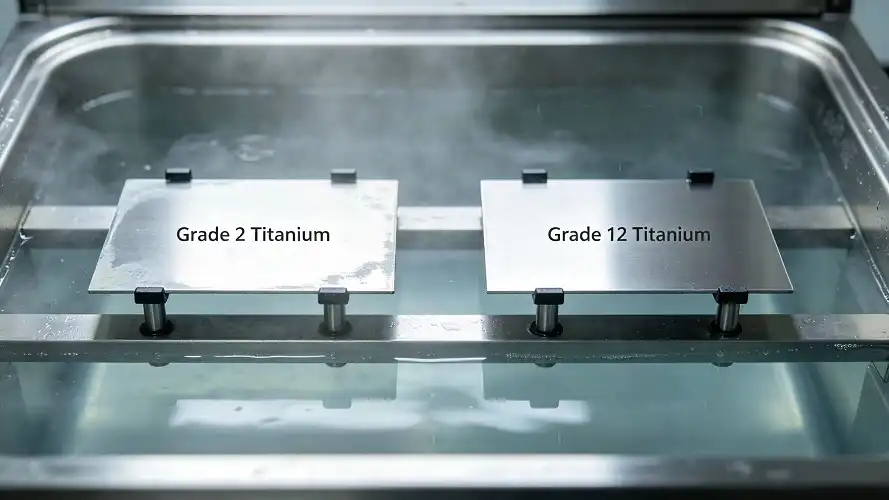

Supplier documents warrant scrutiny. Commissioning an independent laboratory to conduct tensile testing, XRF compositional analysis, and corrosion immersion testing provides impartial validation. This step is standard practice for aerospace procurement under AMS 4911 and is increasingly common in chemical plant projects governed by ASME SB265.
Common Challenges in Gr12 Titanium Plate Quality Verification
Procurement teams frequently encounter documentation inconsistencies for Gr12 titanium plate — MTRs that list rounded figures rather than actual test values, or CoCs referencing superseded standard editions. The resolution is straightforward: require MTRs that report actual values, not minimums, and confirm the standard edition matches your project specification.
Grade misidentification is another persistent risk. Gr12 titanium plate, Grade 2, and Grade 7 share similar visual appearance. Without XRF analysis or verified MTR data, visual identification is impossible. Always confirm that the Mo-Ni chemistry is present before accepting material as Gr12 titanium plate. Procurement schedules sometimes create pressure to accept material with incomplete documentation — resist this. A single non-conforming plate installed in a chemical reactor or heat exchanger can trigger catastrophic corrosion within months, far exceeding the cost of proper verification.
Evaluating and Selecting Certified Gr12 Titanium Plate Suppliers
The supplier behind the Gr12 titanium plate matters as much as the plate itself. When evaluating candidates, prioritize these criteria:
- Verified ISO certification and demonstrated compliance history with ASTM, ASME, and AMS standards.
- OEM manufacturing capability — can the supplier process custom thicknesses, widths, and lengths to your exact drawing requirements?
- Full traceability from raw titanium sponge through rolling, annealing, and surface finishing to final inspection.

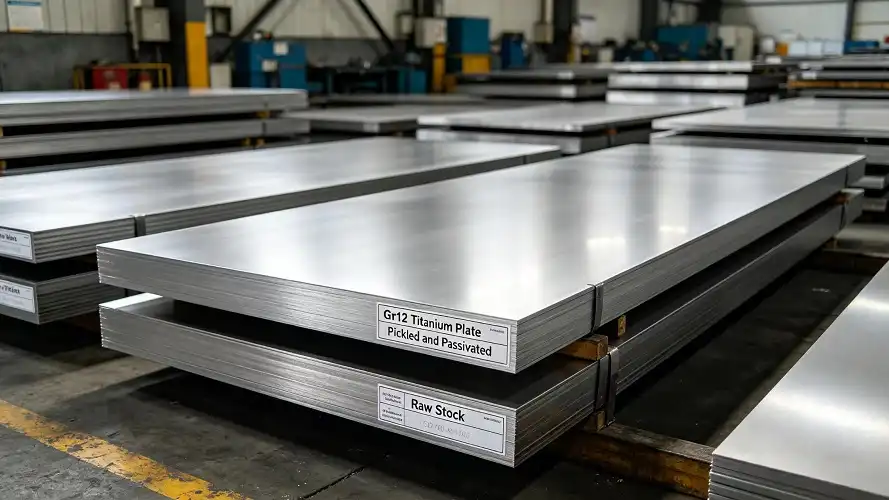

- Production scale and inventory — a supplier maintaining 3,000+ tons of titanium inventory signals stability and reduces lead time risk.
- Collaborative R&D capability — suppliers with academic or institutional partnerships are better positioned to support non-standard alloy or specification requirements.
Pricing transparency is equally important. A lower quoted price that excludes third-party inspection or proper certification often costs more downstream. Evaluate total procurement cost, not unit price alone.
Establishing long-term supplier relationships with defined audit rights and contractual quality clauses protects your supply chain across multiple procurement cycles.
Practical Case Studies: Quality Verification in Action

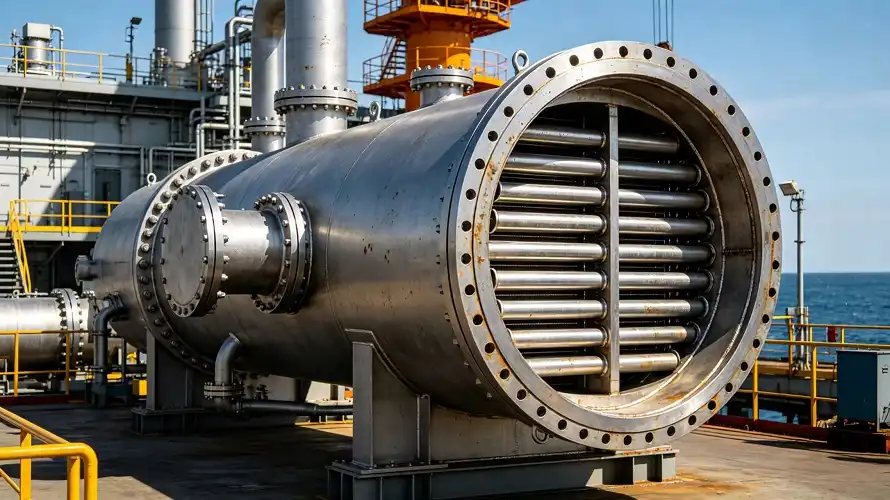

A chemical equipment manufacturer sourcing Gr12 titanium plate for shell-and-tube heat exchangers required ASME SB265 compliance for wet chlorine service. After initial MTR review revealed rounded composition figures, the procurement team requested raw test data and commissioned XRF verification. The supplier — a certified manufacturer with documented production history — resolved the discrepancy promptly, and the project proceeded on schedule.
An industrial equipment integrator procuring material for a hydrometallurgical autoclave specified Gr12 titanium plate over Grade 2 specifically for its Mo-Ni crevice corrosion resistance in acid chloride slurry. The team verified both chemical composition and mechanical properties through independent testing, confirming tensile strength above 483 MPa and elongation exceeding 18% — both within ASTM B265 limits — before approving the order.
These examples demonstrate that structured verification does not slow procurement; it eliminates costly rework and replacement cycles.
Conclusion
Verifying Gr12 titanium plate quality requires a disciplined sequence: physical inspection, document authentication, and independent testing. Understanding applicable standards — ASTM B265, ASME SB265, AMS 4911 — gives buyers the technical foundation to challenge non-conforming documentation and make informed supplier decisions. Gr12 titanium plate's Mo-Ni chemistry delivers measurable performance advantages in corrosive industrial environments, but only when the material actually meets specification. A rigorous verification protocol protects your project, your equipment, and your procurement reputation.
FAQ
1. Can I verify Gr12 certification authenticity without a lab?
Cross-reference the heat number on the plate stamp with the MTR and CoC. Verify the certifying mill's name against known accredited producers. While this reduces obvious fraud risk, XRF compositional analysis remains the only definitive method to confirm Ti-0.3Mo-0.8Ni chemistry without a lab.
2. What is the most critical quality test for Gr12 plate?
Chemical composition verification via XRF or spectrographic analysis is the most critical test, as it confirms the Mo and Ni content that defines Gr12 titanium plate's corrosion performance advantage. Tensile testing against the 483 MPa minimum is the essential mechanical confirmation.
3. Is Gr12 interchangeable with Grade 7 in all applications?
Not universally. Grade 7 outperforms Gr12 titanium plate in highly reducing acid environments — particularly concentrated hydrochloric and sulfuric acids. Gr12 titanium plate is the preferred choice in mixed chloride environments, hot brines, and mild reducing conditions where its cost advantage is meaningful without sacrificing performance.
4. What welding filler should be specified for Gr12?

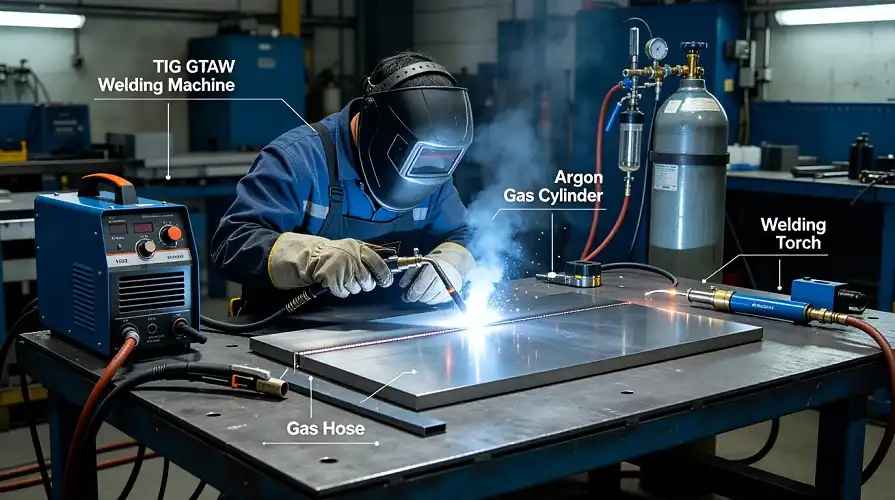

Use ERTi-12 filler wire with strict inert gas shielding to prevent weld-zone embrittlement. Gr12 titanium plate behaves similarly to commercially pure grades during welding and does not typically require pre- or post-weld heat treatment.
Partner with Jucheng Titanium for Certified Gr12 Titanium Plate Supply

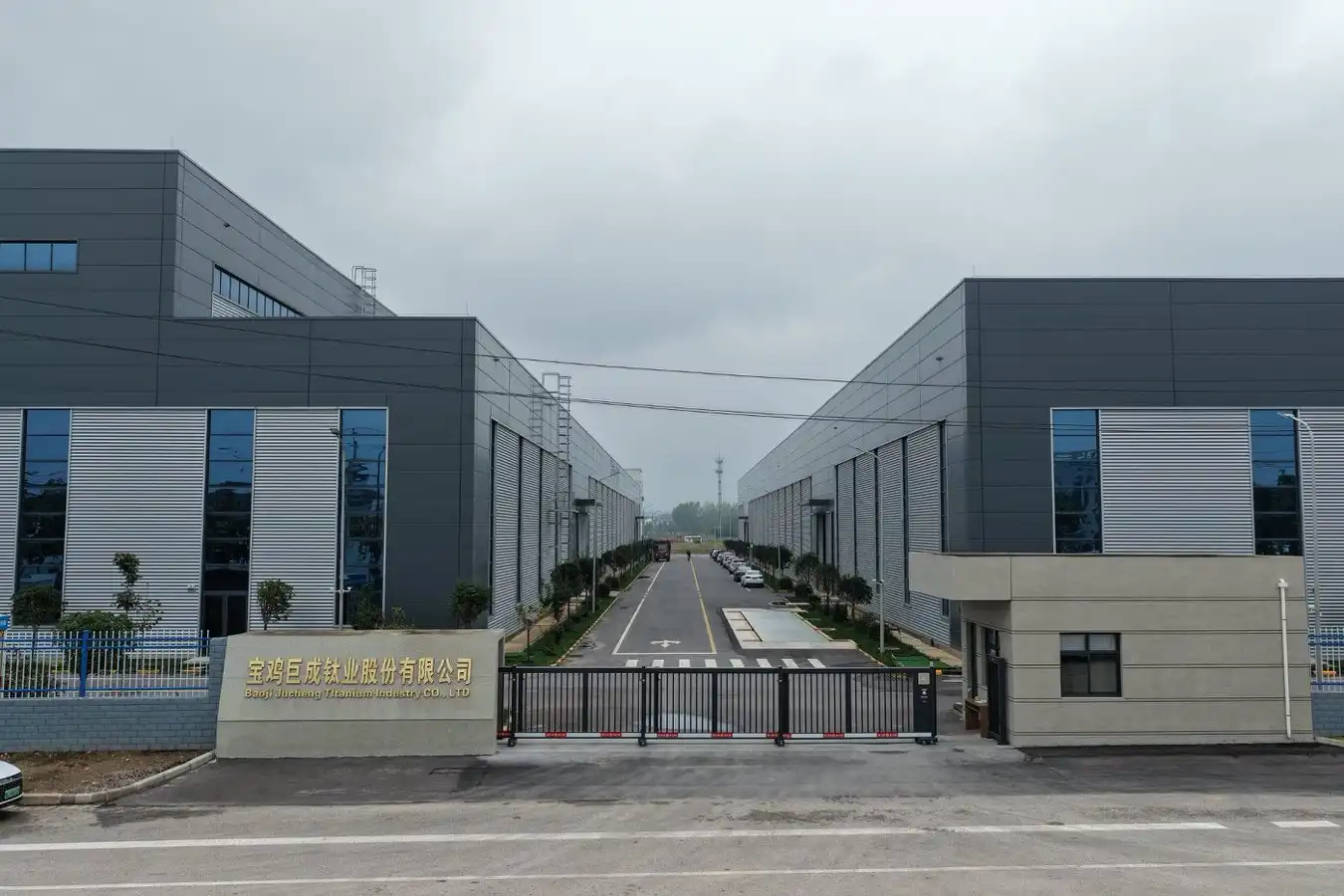

Jucheng Titanium has supplied certified titanium materials across aerospace, chemical, and industrial sectors for over 20 years from Baoji — China's titanium manufacturing center. As a verified Gr12 titanium plate manufacturer with 3,000+ tons of inventory, full ASTM B265 and ASME SB265 compliance, and custom processing from 4 mm to 80 mm thickness, we deliver what your procurement specification demands. Contact our technical team directly at s4@juchengti.com to request a certified quotation or material sample.
