How to Select Grade 5 Titanium Seamless Tube Sizes?
To choose the right size for Grade 5 titanium seamless tube, you need to fit the technical needs of your application with the tube's size requirements. Due to its high strength-to-weight ratio—almost three times that of available pure titanium—the Ti-6Al-4V metal needs to be carefully studied in terms of its length, wall thickness (0.5 mm to 20 mm), and outer diameter (ranging from 3 mm to 219 mm). You should make a choice that takes into account the required flow rate, pressure ratings, and fitting limitations while also making sure it meets ASTM B861 or AMS 4943 standards. Working with skilled makers who can make products to your exact measurements is the best way to get the best performance in hydraulics for aircraft, chemical processing, or offshore drilling, where seamless construction gets rid of weld seam weaknesses.
Understanding the Basics of Grade 5 Titanium Seamless Tubes
What Makes Ti-6Al-4V Alloy Exceptional？
Alpha-beta phase microstructures with outstanding dynamic properties are made from the Ti-6Al-4V mix of 6% aluminium and 4% vanadium. This continuous tubing has a minimum yield strength of 828 MPa and a tensile strength of 895 MPa. It is about 300% stronger than Grade 2 titanium. There are no longitudinal welds; hence, there are no stress-collecting points when the load varies. Hot extrusion or cross-roll cutting, precision cold rolling, regulated heating, and acid pickling produce surface finishes suitable for crucial uses.
The metal, with a density of 4.43 g/cm³, is 40% lighter than steel tubes of the same size and more resistant to corrosion in chloride- and oxidising-rich conditions. Oxygen levels below 0.20% prevent embrittlement, a quality control measure verified during production at specialised centres using inert gas fusion analysis.
Standard Size Ranges and Industry Specifications
Companies make Grade 5 titanium seamless tubes that meet ASTM B337, B338, B861, AMS 4942, and ASME SB338. Fine instruments have a 3 mm outside diameter, whereas big industrial pipe systems have 219 mm. Lightweight aviation parts have 0.5 mm walls, while high-pressure downhole drilling tools used at 6,000 metres have 20 mm walls.

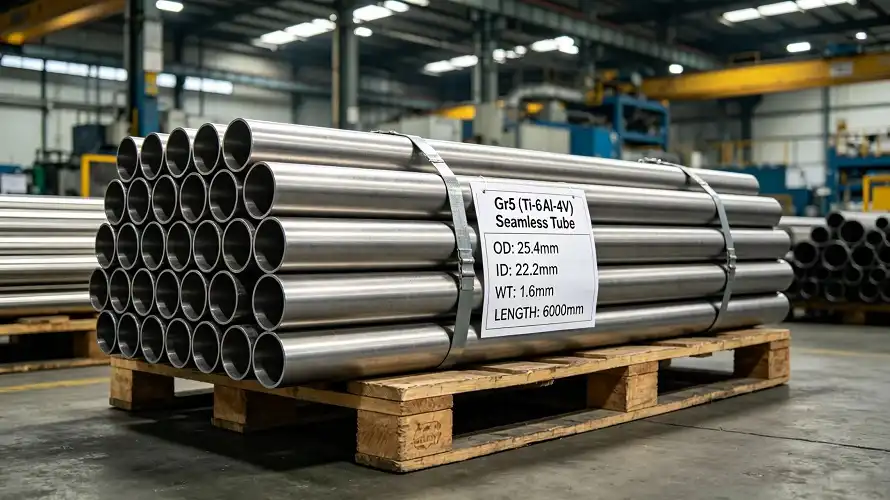

Our stock lengths range from 1 to 12 metres, but we can make custom lengths to match unique fittings. Dimensional tolerances are stringent. For precision grades, outer diameter and wall thickness variations must be within ±0.1 mm and ±10% of standard measurements. Assembly fit and hoop strength predictions depend on these margins.

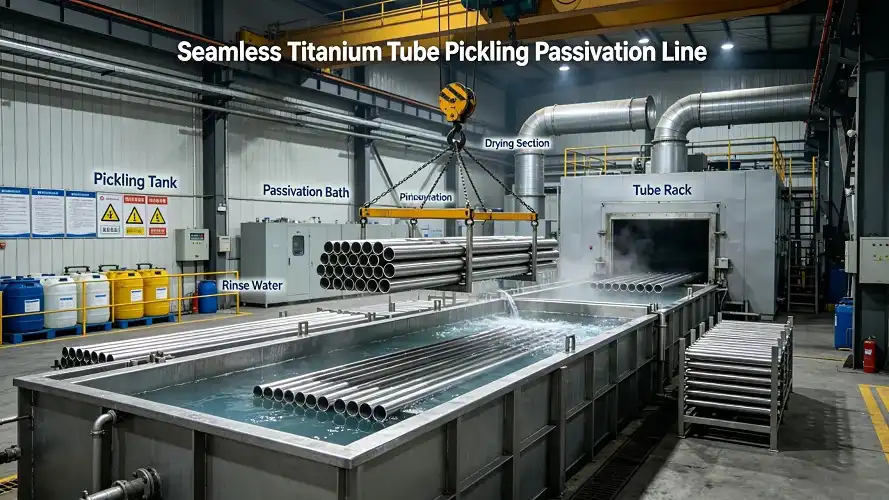

Annealed, pickled, or bright-polished surfaces depend on product needs. Polished surfaces prevent fluid transport systems from sticking, and acid-pickled finishes strip heat-processed impurities to avoid rust.
Core Criteria for Selecting Grade 5 Titanium Seamless Tube Sizes
Application-Specific Dimensional Requirements
Most crucial sizes depend on your workspace. Hydraulic systems at 5,000 PSI require tubes with walls 2–4 mm thick and exterior widths of 25 mm due to safety factors of 3:1 or greater. Chemical processing equipment that works with corrosive media at mild pressures needs wider widths (50–100 mm) and thinner walls (1.5–3 mm). This reduces material costs and strengthens the structure.
Inner thickness depends on flow rate. A 15 mm inner diameter tube sends 10.6 litres per minute at 2 m/s, which is suitable for cooling medical imaging equipment. Widening to 30 mm four times increases the flow rate to 42.4 litres per minute, which is enough for industrial heat exchanges. These estimations assume irregular flow is common in industrial settings.
Balancing Performance Against Cost and Lead Time

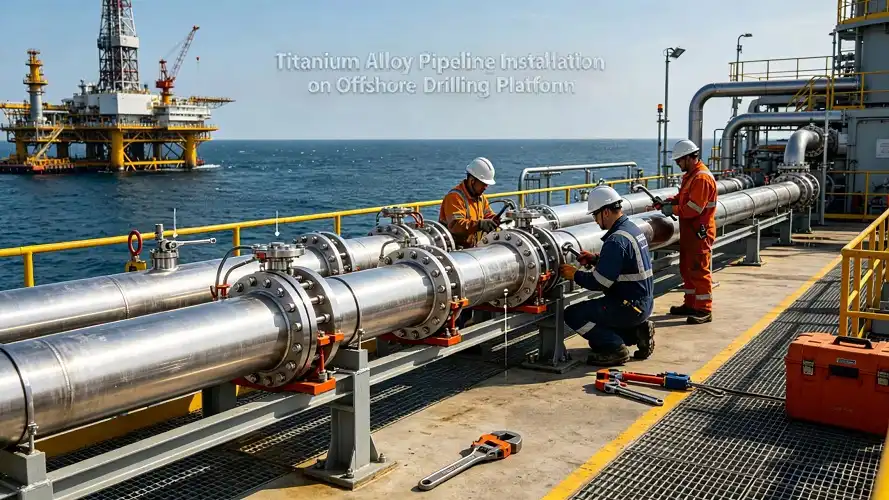

The cost of materials goes up or down in relation to the length and cross-sectional area. A 25 mm outer diameter tube with a 2 mm wall thickness uses 18% less material than a 3 mm wall equivalent. This means that orders for offshore platforms that cover more than one kilometre can save between 15 and 20 per cent on costs. Thinner walls, on the other hand, lower the burst pressure values and might need more support structures, which cancels out the initial savings on materials.
Standard sizes that are shipped from stock usually get to North American places within two to four weeks. Custom sizes that need special production runs, on the other hand, take eight to twelve weeks. Aerospace companies that have to meet approval deadlines often set standard sizes early in the planning process to cut down on the time it takes to get parts. Chemical plant builders whose projects last between 12 and 18 months use custom sizes to get the most out of their systems without having to cut corners on time.
Different manufacturers have different minimum order amounts. Standard sizes may need at least 50 kilograms, which is about 15 metres of 25 mm diameter tube. Custom requirements, on the other hand, need 200 to 500 kilogram batches to cover the costs of setting up the tools. When you buy in bulk, you can get savings of 12 to 18% on orders that are more than 1,000 kilograms. Industrial equipment suppliers often hit this level.
Supplier Capabilities and Manufacturing Constraints

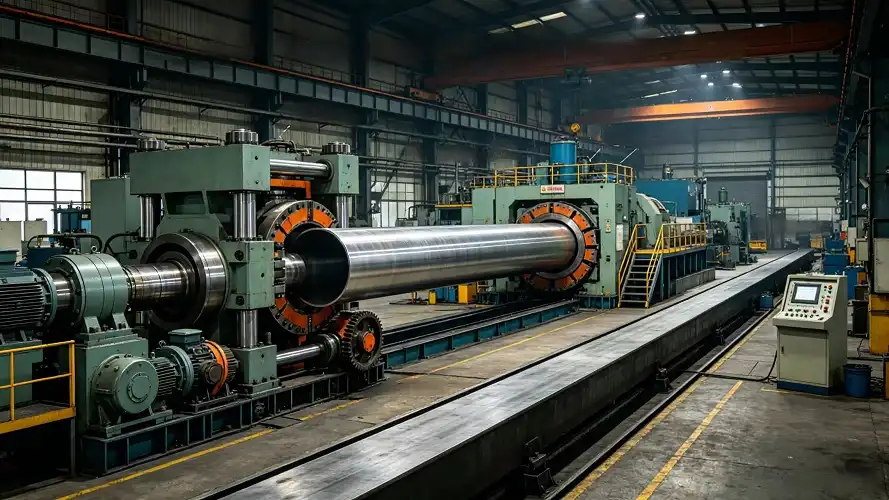

Because they need special tools, not all titanium mills keep Grade 5 titanium seamless tube production lines. Capital investments like cross-roll cutting mills and pilgering machines cost more than $5 million, so they can only be used by well-known companies with decades of experience in metalworking. Make sure that any possible providers have current ASTM B861 certifications and can give you mill test records that show the mechanical properties, chemical composition, and results of non-destructive testing for each output lot.
Custom sizes may be possible if there are enough tools on hand. Most industry needs can be met by manufacturers who keep mandrel sets with outer diameters between 10 and 30 mm without adding extra wait time. Sizes that aren't in the required range require a special mould to be made, which can take 4 to 6 weeks and cost between $2,000 and $5,000 in one-time engineering costs. When you involve providers in the design process, you can have value engineering conversations that make sure that the specs match the tools that are available.
Comparative Insights: How to Choose Between Grade 5 and Other Titanium Grades or Materials
Mechanical Performance Across Titanium Grades
Commercially pure titanium Grade 2 resists rust and shapes well, although its tensile strength is 345 MPa, 38% of Grade 5. Grade 2 can only be utilised in low-pressure applications, such as heat exchanger tubes in desalination plants or architectural drainage systems, where the weight savings outweigh the higher prices despite their poor mechanical properties.
Mid-range Grade 9 (Ti-3Al-2.5V) has 620 MPa of tensile strength. Its materials are 40% stronger than Grade 2 and 60% cheaper than Grade 5. This semi-alpha metal is suitable for bike frames, sporting equipment, and moderate-pressure hydraulic lines when Grade 5 doesn't work. Grade 9 has more aluminium than pure grades, making it tougher to weld.
Grade 23 (Ti-6Al-4V ELI) is similar to Grade 5, but it reduces interstitial elements. This makes it harder to break and better for cold weather. Surgical implant manufacturers use Grade 23 for hip stems and spine rods because it resists fatigue in body fluids and costs 25–35% more than Grade 5.
Titanium Versus Stainless Steel Alternatives
In terms of density, 316L stainless steel tubes weigh 7.9 g/cm³ more than titanium tubes of the same size, yet cost 40-50% less. This extra weight is good for stationary chemical processing equipment, but stainless steel can't be used in flight, since each kilogram costs $500 to $1,000 in fuel over the 25 years of a commercial aeroplane.
Due to their corrosion-resistant titanium pipe, these materials differ in chloride environments. Titanium forms a solid oxide layer that prevents saltwater pitting forever; however, 316L fails after 5–10 years due to crevice corrosion in the marine splash zone. Despite its higher cost, offshore platform builders are increasingly using titanium for firewater deluge systems and ballast pipelines. Titanium's 40-year service life removes the need for repairs.
Different titanium grades handle different temperatures. Grade 5 titanium remains mechanically sound up to 400°C, but 316L creeps and bends above 550°C. Titanium is preferred for high-temperature chlorinated organic chemical reactors because it resists rust and retains its shape at many temperatures.
Step-by-Step Guide: How to Accurately Determine the Right Size for Your Grade 5 Titanium Seamless Tube？
Common Sizing Mistakes and How to Avoid Them
Procurement teams often confuse nominal and real metrics. "25 mm diameter" is the tube's exterior diameter unless otherwise stated as "inner diameter" or "nominal bore". This ambiguity causes installation failure when 25 mm inner diameter parts are combined with 25 mm outer diameter tubes with 21 mm bores. Compare buy order measurements to engineering models to ensure accuracy.

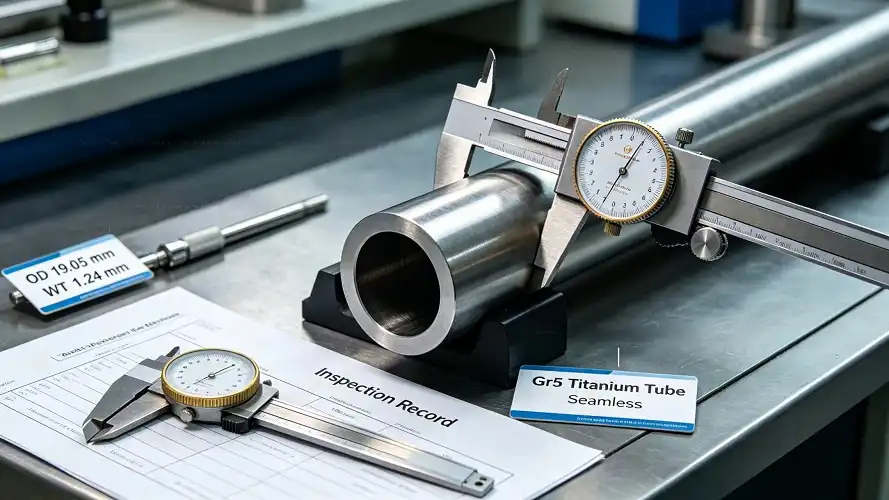

Ignoring manufacturing restrictions hinders assembly. The ASTM B861 standard allows ±0.4 mm for widths under 50 mm. A 25 mm tube could be 24.6-25.4 mm broad, affecting close-spec compression fitting seals. When precise fittings are needed, pick smaller H7 or H8 tolerance classes and pay 10–15% more for better dimension control.
Due to the temperature, the size must change. Titanium has 8.6 μm/m·°C thermal expansion, resulting in 3.4 mm growth in a 10-metre tube from 20°C to 60°C. Lack of expansion loops or flexible connections causes tension and wear in piping systems. The planning phase should consider temperature growth instead of field changes to fix difficulties.
Collaborating with Experienced Suppliers
When talking about sizes, technical sales experts at well-known companies bring decades of knowledge with them about how things are used to the table. When you make your first questions, you should list your working pressures, temperatures, flow rates, and fluid properties. A good provider compares these factors to data on the mechanical properties of the material and suggests a wall thickness that meets the safety requirements set by ASME B31.3 piping rules or similar standards in your business.
For complicated loading situations, you should ask for a finite element analysis (FEA). Suppliers who can do simulations can show how stress is distributed under pressure, bending, and heat loads together. This lets them see how something might fail before it is made. Quote times usually go up by one to two weeks because of this service, but it saves money by avoiding expensive field failures and remake cycles.
Real-World Case Studies Demonstrating Precision Sizing
Real-world examples show precise sizing. A company that makes aviation hydraulic actuators wanted a 19 mm tube with 1.5 mm walls for landing gear systems. Cracks appeared after 85,000 cycles, less than the 150,000 required for approval. The hoop's strength increased 33% with a 2 mm wall. With 180 kon each plane, it could fire almost 200,000 rounds. The tube provider's engineering team suggested this change, which kept the program on track and saved $1.2 million in renewal costs.

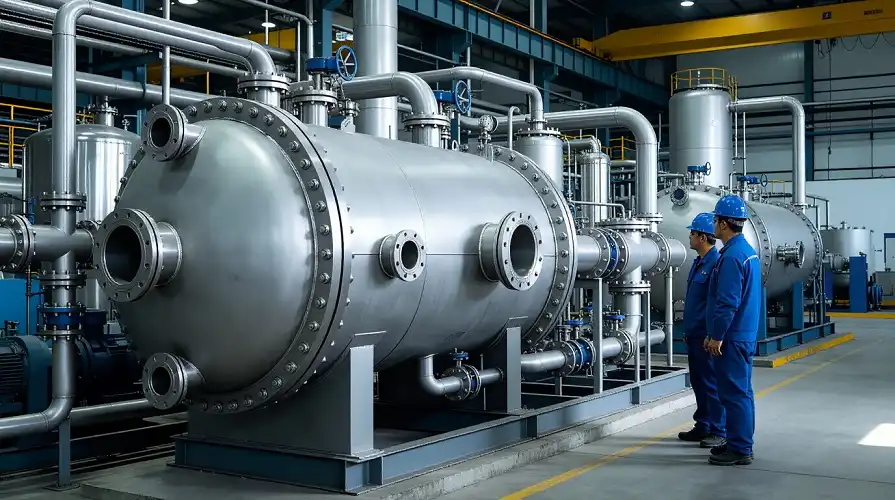

Based on pressure estimates, a chemical plant worker built a hydrochloric acid system with 50-mm tubes with 2.5-mm walls. Bend and tee erosion and corrosion will occur if the flow rate exceeds 3 meters per second, according to the supplier. By increasing the breadth to 65 mm, the speed dropped to 1.8 m/s. This increased system life from 8 to 20 years at 12% material cost. This proactive conversation prevented equipment replacement and output interruptions.
Procurement Considerations for Grade 5 Titanium Seamless Tubes
Pricing Dynamics and Order Quantities
The world market for titanium sponge affects material prices, although Grade 5 titanium seamless tubes in normal sizes cost $25–$40 per kilogram. Custom measurements cost 15–25% extra due to manufacturing runs and tool setup. Wall thickness greatly affects per-meter prices. Going from 2 mm to 4 mm thick walls increases material costs by 88%, affecting project budgets.
Bulk purchases mitigate price swings. Annual supply deals with manufacturers lock in prices for 12 months. This shields aerospace contractors against 18% spot market changes over the past five years. Starting annual pledges of 2,000 kilograms—600 metres of 25 mm tube—are typical. Buyers who achieve this condition earn 12–15% volume discounts and first choice when supplies are limited.
Lead Times and Delivery Planning
Distributors ship standard sizes to key North American markets in 5–10 business days. Standard-sized direct mill orders require 6–8 weeks for production planning, quality testing, and overseas shipping. Creating tools and initiating dedicated production runs takes 10–14 weeks with custom specs.
Rush handling reduces wait times by 30–40% for 25–35%. Aerospace businesses typically adopt expedited manufacturing to meet critical path schedules, especially when design modifications occur late in the development cycle. Starting to buy materials 4–6 months before installation helps chemical workers with flexible installation plans avoid rush fees.
Selecting Qualified Suppliers
Certifications prove that a company is good at making things. The ISO 9001 quality management certification sets the standard, while the AS9100 aerospace certification shows that the company can meet strict standards for paperwork and traceability. Medical device makers need sellers to keep ISO 13485 approval and FDA registration for materials that go into the supply chains of implantable products.
Infrastructure for manufacturing shows how much can be done and how reliable it is. Mills with more than one vacuum arc remelting (VAR) furnace keep better lot-to-lot stability than mills with only one furnace, which can have production stops. When compared to suppliers who outsource processing steps, integrated sites that do extrusion, cold rolling, and heat treatment all under one roof cut down on lead times and logistical challenges.

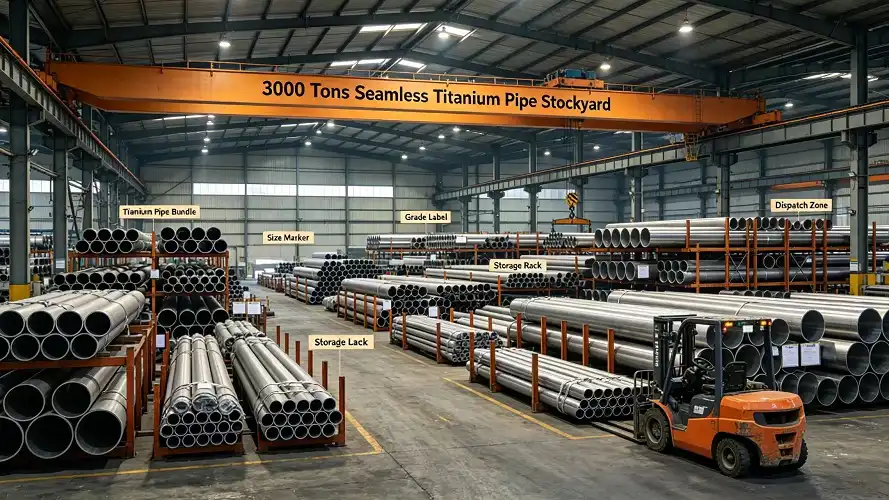

Geography affects how resilient the production chain is. Manufacturers in China's Baoji region, which is home to 60% of the world's titanium production capacity, offer lower prices and a wide range of products. Companies like Baoji Jucheng Titanium Industry keep 3,000-tonne stocks of different types of titanium, which lets them quickly fill pressing orders and support custom manufacturing through partnerships with Northwest University and other advanced research institutions. Their specialised "little giant" company title and 20-year history of business show that they consistently provide quality and new ideas to the aerospace, chemical processing, and industrial equipment sectors.
Conclusion
To choose the right sizes for Ti-6Al-4V seamless tubes, you need to carefully look at the mechanical needs, the available sizes, and the supplier's skills. Matching the outer diameter, wall thickness, and length to the needs of the application, like 5,000 PSI aircraft hydraulics or chemical processing equipment that works with toxic media, ensures reliable performance and low costs. When better strength-to-weight ratios make material purchases worth it, comparing Grade 5 to options like Grade 2 or stainless steel makes things clear. Working with qualified makers who are skilled in custom sizing can help you avoid making mistakes that cost a lot of money and give you access to technical tools that help you make designs better before they are made. Procurement teams can get quality materials that meet project deadlines and budgets if they understand how prices change, how long it takes to get materials, and how to buy in bulk.
FAQ
1. What factors most significantly influence Grade 5 titanium seamless tube pricing?
Costs are mostly determined by the width and diameter of the walls, since the amount of material used increases with cross-sectional area. Due to setting up tools and making sure that only those sizes are made, custom sizes cost 15 to 25 percent more than standard sizes. Titanium sponge prices change 10 to 18% a year because of changes in the market. This is why long-term supply deals are good for budget security. When you order more than 1,000 kilograms, you can usually get bulk savings of 12 to 18%, which lowers the cost per unit by a lot for big projects.
2. Can manufacturers produce custom sizes, and what are typical lead times?
Reliable mills can handle special requests within the range of mandrel tools they offer, which usually includes outer sizes between 10 and 30 mm. Custom orders have lead times of 10 to 14 weeks, which includes planning production, making the goods, testing for quality, and moving them around. For unusual forms that aren't in the regular range of tooling, a custom mandrel may need to be made, which can take 4 to 6 weeks and cost between $2,000 and $5,000. If you plan your purchases four to six months ahead of time, you can get special sizes without having to worry about missing deadlines.
3. How does tube sizing affect corrosion resistance performance?
Wall thickness influences longevity in corrosive environments primarily through mechanical stability rather than corrosion rate. Titanium's passive oxide layer forms uniformly regardless of thickness, but thicker walls provide a greater material reserve as localised corrosion progresses over decades. Surface finishes impact performance more directly: bright-polished tubes resist fouling and biological growth better than pickled finishes in seawater applications, extending intervals between maintenance cleaning cycles.
Partner with a Trusted Grade 5 Titanium Seamless Tube Manufacturer

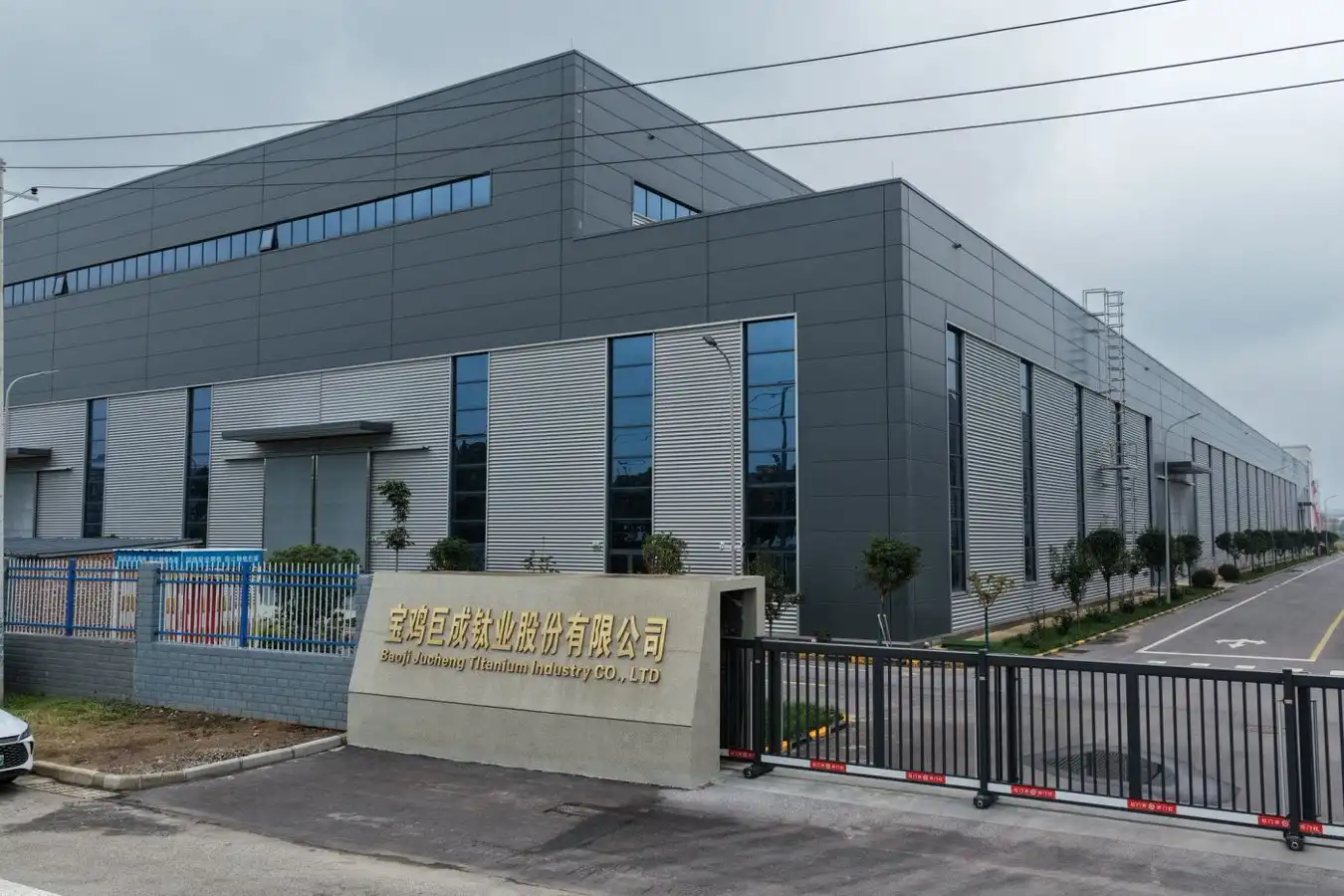

With more than 20 years of experience, Jucheng Titanium makes high-performance Ti-6Al-4V seamless tubes for tough uses in aircraft, chemical processing, and industry. Our 120,000-square-meter factory in Baoji, China's Titanium Valley, keeps a 3,000-tonne inventory of different grades. This lets us deliver standard sizes quickly—within 5–10 business days—and we can also support custom specifications through advanced research and development capabilities we built with the Northwest Institute for Nonferrous Metal Research. We have 45 patents that are directly applied to production methods. This makes sure that every lot is the same in terms of size and mechanics. As a qualified national high-tech business and specialised "little giant" company, we provide materials that meet ASTM B861 and AMS 4943 standards, along with full traceability paperwork that meets aerospace AS9100 standards. You can email our technical sales team at s4@juchengti.com to get custom size advice, cheap quotes on orders of Grade 5 titanium seamless tube, and reliable supply partnerships that take the guesswork out of buying.
References
1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.
2. Donachie, Matthew J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
3. Lütjering, Gerd & Williams, James C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin Heidelberg.
4. ASTM International (2021). ASTM B861-21: Standard Specification for Titanium and Titanium Alloy Seamless Pipe. West Conshohocken, Pennsylvania.
5. SAE International (2019). AMS 4943G: Titanium Alloy, Seamless Tubing 6Al-4V Annealed d. Warrendale, Pennsylvania.
6. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). "Titanium Alloys for Aerospace Applications" in Advanced Engineering Materials, Volume 5, Issue 6, pages 419-427.
