How to Verify CP Grade 2 Titanium Sheet Before Buying from a Supplier
The most important thing about buying CP Grade 2 titanium sheet is to make sure it has been verified before purchase; this protects your project investment and guarantees material performance meets application standards. Commercially pure Grade 2 titanium provides a good combination of moderate tensile strength, great corrosion resistance, and superior cold formability, and is the most common material used for aerospace, chemical processing, and medical applications. Procurement teams that don’t check chemical composition, mechanical testing, certification, and supplier credentials may wind up with poor material that may lead to expensive component failures and regulatory setbacks.
Understanding CP Grade 2 Titanium Sheet: Key Properties and Specifications
Titanium grade 2, commercially pure. Grade 2 is a member of the titanium material group. The microstructure of the alpha phase makes it more ductile and weldable than Grade 3 or Grade 5, but also quite a bit stronger than Grade 1, which is quite soft. This balance makes it the most recommended standard for plate heat exchangers, chemical reactor linings, and aircraft structural panels.
Chemical Composition and Mechanical Benchmarks
The Grade 2 titanium sheet satisfying ASTM B265 and ASME SB265 should include not more than 0.30 percent iron, 0.25 percent oxygen, 0.03 percent nitrogen, and 0.015 percent hydrogen, all by weight. It has a minimum ultimate tensile strength of 50 ksi, minimum yield strength of 40 ksi, and minimum elongation of 20 percent. These factors differentiate the true Grade 2 from off-grade replacements that may seem identical but may not perform as well in the real world.
Available Sizes and Processing States

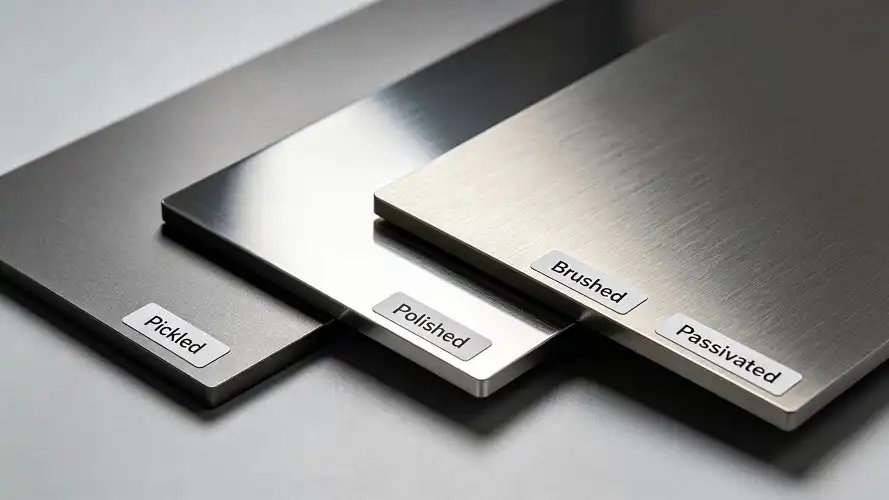

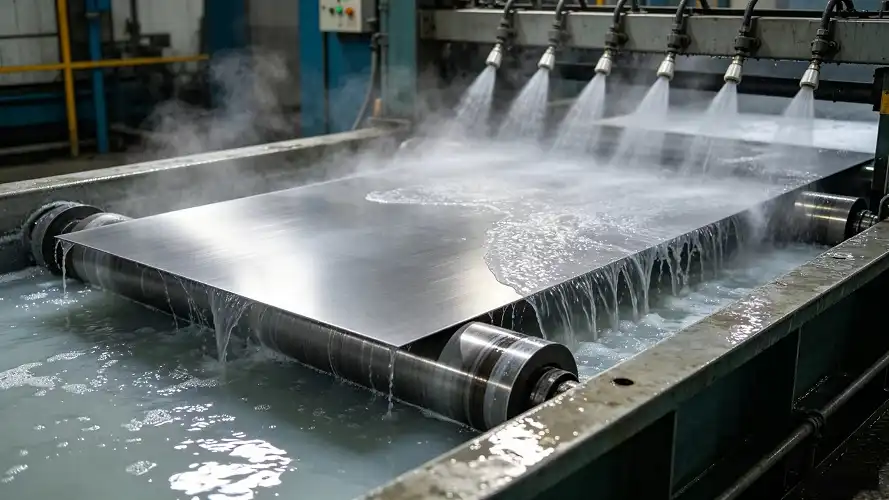

Jucheng Titanium manufactures Grade 2 hot-rolled titanium plate with thickness from 4 mm to 80 mm, width from 950 mm to 2500 mm, and length from 950 mm to 10000 mm. We also provide custom sizes. Sheets are supplied annealed and have been rolled, annealed, levelled, pickled, and polished to a smooth exterior. Surface treatment: acid pickling, polishing, and grinding. Each is chosen to suit the needs of manufacturing or corrosion resistance further down the line. Applicable standards include ASTM B265, ASTM F67, AMS 4911, and ASME SB265. They are used in medical, aerospace, and industrial purposes.
Common Challenges and Risks in Procuring Titanium Plate Material
Purchasing personnel need to be aware of real quality risks in the titanium supply chain before placing an order.
The composition of the intermediate element is not stable; therefore, the commercial pure titanium sheets are becoming weak too rapidly most of the time. This is especially the case with hydrogen and oxygen. >0.015% the hydrogen level may lead to delayed hydride cracking, a failure scenario that can occur weeks after installation. Uninspected mill material is typically nonconforming to standards and varies in mechanical properties and dimensions.
How Counterfeit or Off-Grade Material Enters the Market?
The replacement of market is obvious in channels with substantial commodity trade, when material is re-labelled as Grade 2 from either Grade 1 or Grade 3. Certificates for CP Grade 2 titanium sheet may be faked or reproduced without any physical scrutiny. A 2019 study in the Journal of Materials Engineering and Performance discovered that titanium mill certificates are not always compatible with independent spectroscopic studies. This is why third-party validation is needed. If the procurement team overlooks evidence, they are taking on this whole risk.
Step-by-Step Process to Verify Titanium Sheet Before Purchase
Verification in an orderly way eliminates the need for guessing and gives a clear trail of confirmation of quality. So what are the basics that any procurement expert must go through to be sure:
- Supplier Credential Review: Verify ISO 9001 certification, current export licenses, and ASTM/AMS compliance record. Ask for evidence of delivery to past aerospace or chemical processing clients and check the firm registration details. The supplier, with over 20 years of manufacturing skill and the reputation of a listed national high-tech corporation, has a significantly lower counterparty risk than an unknown broker.

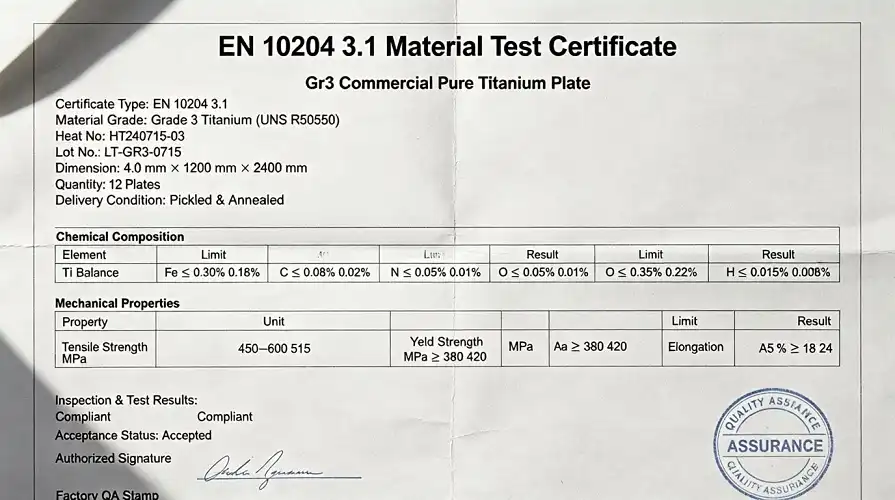

- Material Test Certificate Test: EN 10204 3.1 MTC traceability: material from heat no. of ingot to final plate needed. The certificate should contain a report of chemical composition, report of mechanical tests, heat treatment records, and dimensional inspection data. Verify that the heat number on the certificate matches the markings on the physical sheet. Any change will be promptly refused.

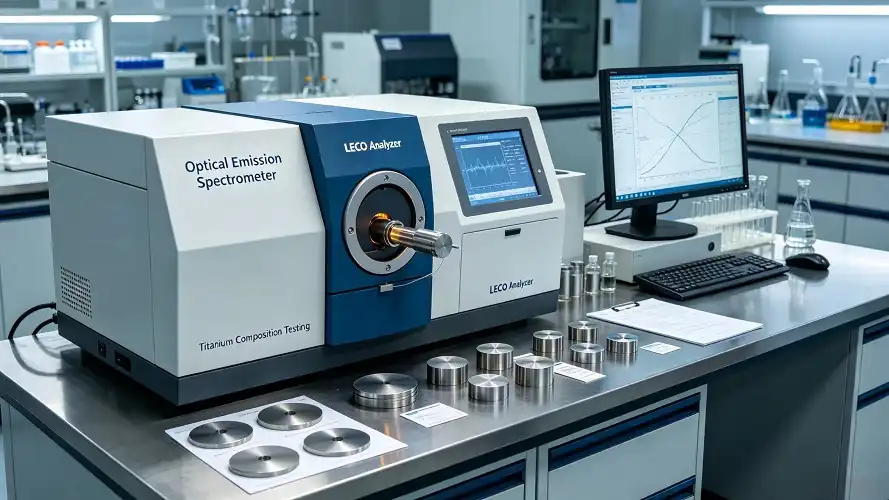

- Chemical composition verification: Please provide the analytical data of Optical Emission Spectroscopy or Inert Gas Fusion. IGF is the standard method for the measurement of interstitial elements-oxygen, nitrogen, and hydrogen—which have a direct bearing on ductility and toughness. It takes less than 30 minutes to check reported values to ASTM B265 restrictions, but it saves months of rework later."

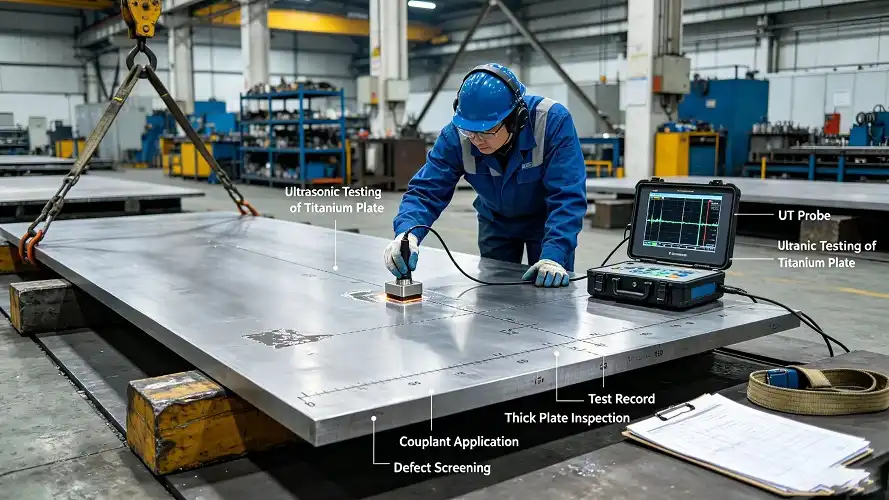

- Mechanical Test Review: Verify the semi-guided 105-degree bend test result. Check cold formability using the room temperature tensile test results. Thicker plates additionally need ultrasonic testing per AMS 2631 Class A1/A2 in addition to the surface inspection to find internal delaminations.
- Dimensional Inspection, Physical & Surface: Measure the thickness, width, and flatness using calibrated instruments. For acid-pickled surfaces, ensure the oxide scale is totally eliminated and that the surface Ra roughness values meet your downstream welding or coating requirements. Dye Penetrant examination may reveal surface-breaking cracks that may not be obvious to visual examination.
The evidence phases are to be worked sequentially. If any one of them is absent, there is a gap in the chain which might lead to quality problems. For CP Grade 2 titanium sheet procurement, managers review the written certificates and physical tests, giving them all the proof they need to get their approval.
Case Studies: Verification in Practice Across B2B Sectors
Figuring out how verification works in real-life procurement situations can help you see which steps are the most useful.
Aerospace Component Procurement

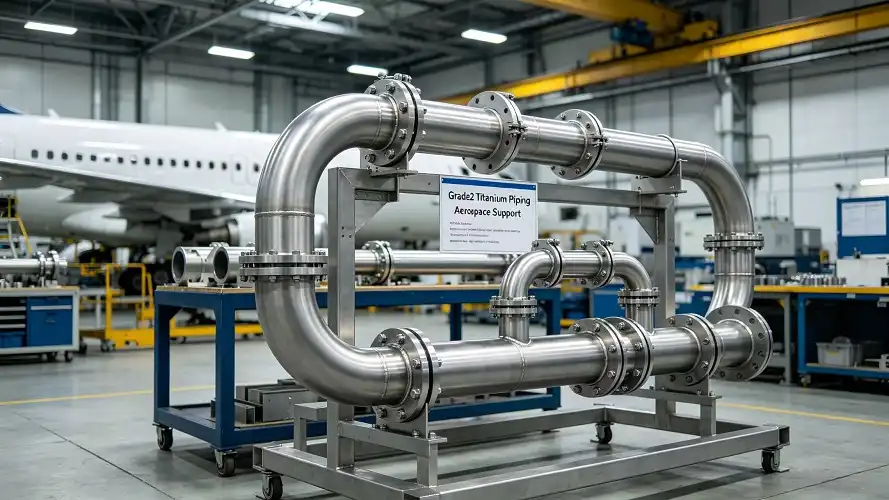

A company that makes parts for airplanes needed to get titanium plate for structural frames that met the requirements of AMS 4911 and had full UT clearance on plates that were more than 12 mm thick. The buying team caught a batch whose yield strength tested at 258 MPa, which was below the minimum of 275 MPa, by requiring heat-traceable MTCs and independent third-party tensile proof. This was done before the material went into production. Because the testing process started early, the supplier substitution could be done without any delays to the project.
Medical Device Material Qualification
A company that makes surgical implants used hydrogen content as the main screening factor for a new titanium sheet supplier under ASTM F67 because it has a direct link to the risk of hydrogen embrittlement in living organisms. The supplier's IGF reports always showed hydrogen levels between 0.003% and 0.006%, which is well below the 0.015% standard. With paperwork that met ISO 13485 standards and a clean, annealed surface, the approval was finished in a single audit cycle.
Industrial OEM Cost-Performance Balance

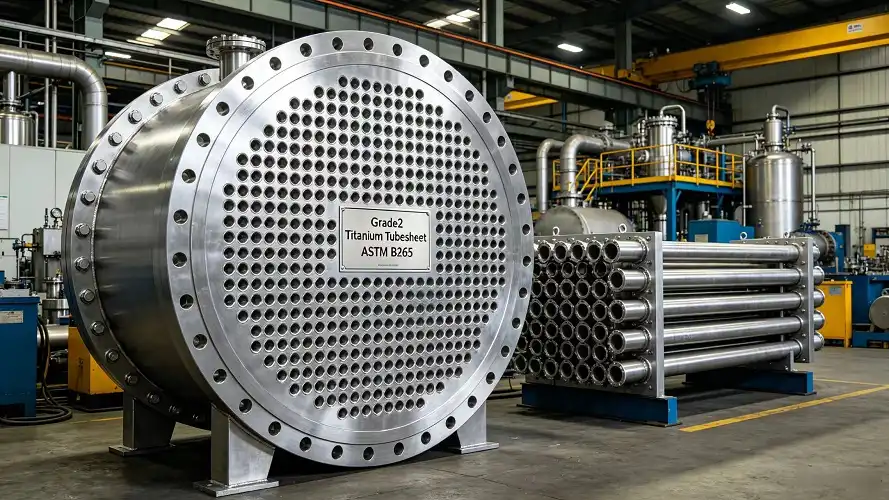

An industrial heat exchanger maker working on several projects found a good mix between the cost of materials and the quality of the products they made. They did this by making a framework deal with a trusted supplier who kept 3,000 tons of stock on hand. Premium spot-purchase costs went away because of consistent availability, and pre-qualified MTCs cut the time it took to check each batch of arriving goods by about 60%.
Conclusion
Checking that commercially pure CP Grade 2 titanium sheet is what it says it is before buying it is not extra work; it's a straightforward way to control risk. The steps we talked about here—verification framework for supplier credentials, MTC traceability, chemical composition testing, mechanical property validation, and physical inspection—all work together to make the system stronger. Real Grade 2 material that has been properly certified and tracked gives important applications the corrosion protection and shapeability they need. Supply chains that are both cost-effective and technically sound are built by procurement professionals who make this process standard.
FAQ
1. What certifications should a Grade 2 titanium plate supplier provide?
A reliable provider should give you an EN 10204 3.1 Material Test Certificate that lists the chemical make-up, the results of the mechanical tests, records of the heat treatment, and measurements that can be linked to a particular ingot heat number. For industrial and aerospace uses, ASTM B265, AMS 4911, and ASME SB265 are relevant standards. For medical-grade materials, ASTM F67 is the right one.
2. Is commercially pure Grade 2 titanium weldable?
Grade 2 titanium is very easy to weld using GTAW methods in a room with no inert gases. It can be used to make pressure vessels and heat exchangers because it has a low interstitial content and an alpha microstructure that creates weld zones with mechanical qualities close to those of the base metal.
3. What are typical lead times and minimum order quantities?
Lead times depend on how much inventory the supplier has and how many orders they have. Standard orders can be filled within 7–15 business days by suppliers who keep a lot of stock on hand, like 3,000-ton stockholding companies. For hot-rolled plate, the smallest amount that can be ordered at once is usually 500 kg, but different sizes can be made with different minimums based on the thickness and width needs.
4. How do I distinguish Grade 2 from Grade 1 without laboratory testing?
Visual or hardness-based differentiation is not a reliable way to tell them apart without spectroscopic analysis. The most useful field check is to compare the MTC heat number to the writing on the plate and ask for the supplier's OES report. If there is any difference between the data on the license and the markings on the plate, checking by a third party is required.
Partner with Jucheng Titanium — Your Verified CP Grade 2 Titanium Sheet Supplier

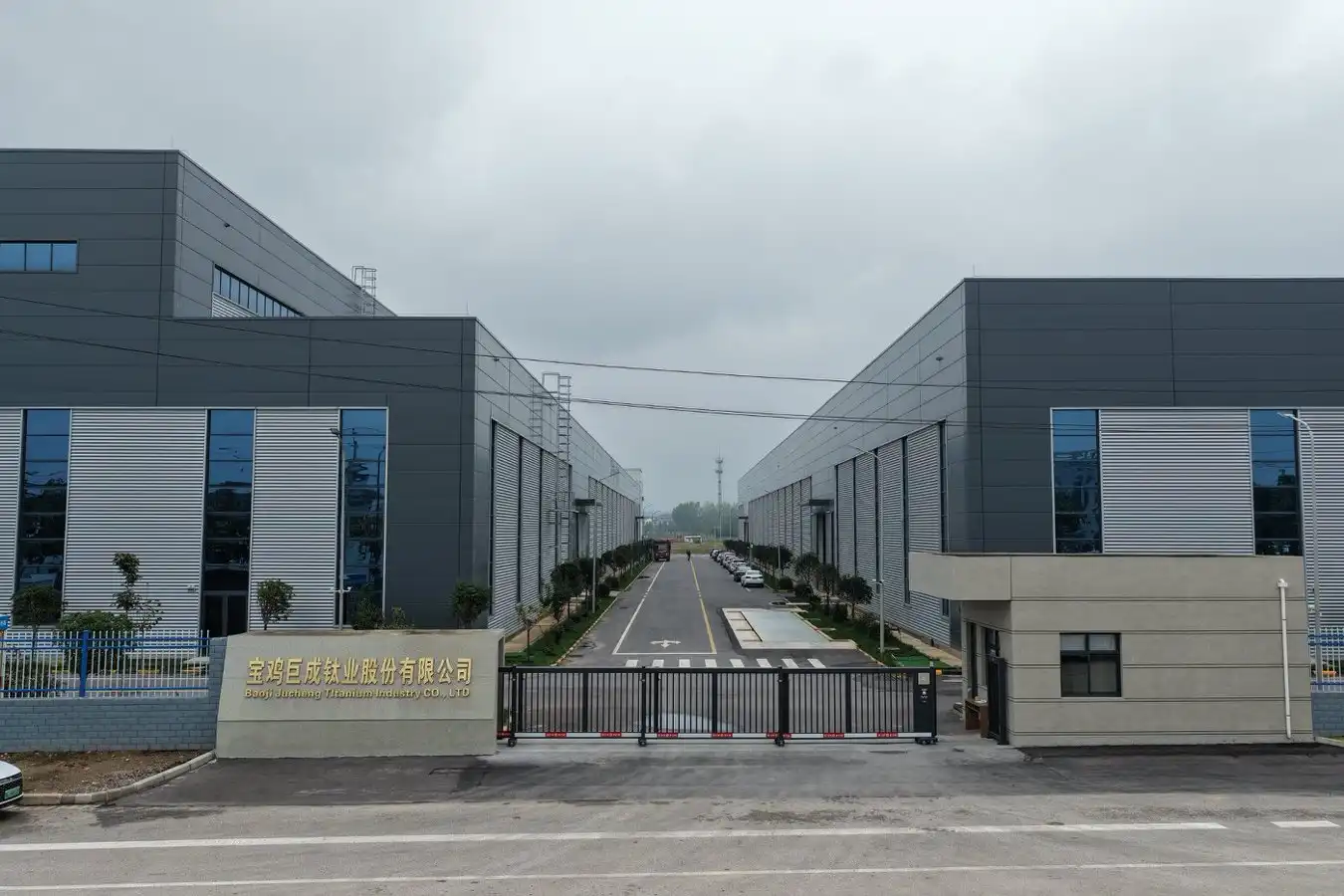

Since 2004, Jucheng Titanium has been making titanium only. They have 4 invention patents, 41 utility model patents, and more than 3,000 tons of titanium on hand at all times. We sell CP Grade 2 titanium sheets that are fully traceable according to EN 10204 3.1, meet ASTM B265/AMS 4911 standards, and can be made to fit your needs in thicknesses ranging from 4 mm to 80 mm. To get a price or a sample certification package, please email our expert team at s4@juchengti.com.
