How to Verify the Quality of 6Al4V Titanium Plate Before Buying
Verifying the quality of 6Al4V Titanium Plate involves examining material certifications, confirming chemical composition, inspecting surface condition, and reviewing mechanical test reports aligned with ASTM B265 and AMS 4911 standards. Proper verification ensures the plate meets aerospace, medical, or industrial specifications and mitigates risks associated with counterfeit materials, dimensional inaccuracies, or compromised mechanical properties that could jeopardize project integrity and safety.
Introduction
The industrial standard for demanding projects, including aeroplane structural parts, medicinal implants, offshore equipment, and chemical processing systems, is Titanium Grade 5 (6Al4V Titanium Plate). Alpha-beta alloy is biocompatible, corrosion-resistant, and strong-to-weight. Its performance and dependability make it essential in many industries. Big project procurement professionals confront more than alloy selection. Before buying Ti-6Al-4V plates, check their quality to avoid operational issues, compliance breaches, and cost overruns that might delay and harm your image.
Much is at risk. Low-quality aeroplane materials may fail catastrophically. Medtech companies risk regulator rejection and patient harm. Rapid equipment breakdown and unscheduled downtime plague chemical companies. This thorough manual addresses such issues by detailing critical qualities, comparing criteria, rigorous verification procedures, and business-to-business purchasing best practices. Check the integrity of titanium alloy plates for aeroplanes, heat exchangers, and high-precision medical equipment. Merchants provide licensed, traceable, and performance-proven goods.
Understanding the Core Quality Attributes of 6Al4V Titanium Plates

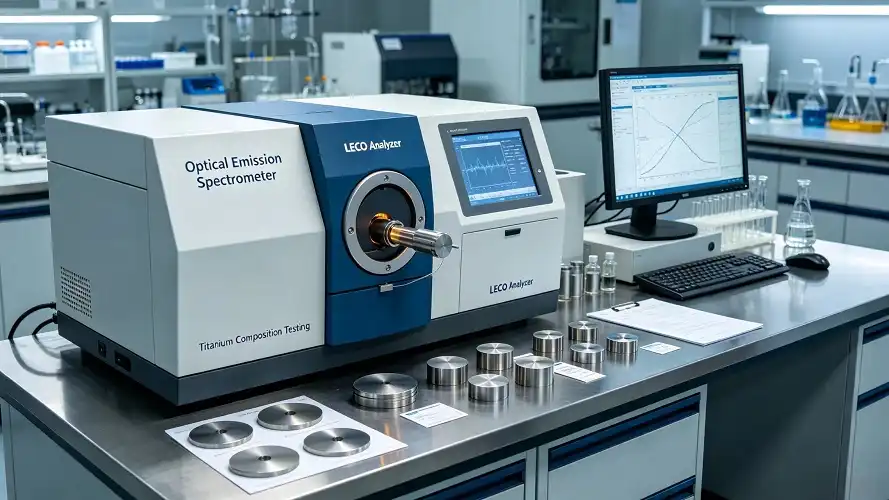

Chemical Composition Standards
The chemicals that make up Grade 5 titanium directly affect how well it works mechanically and how long it lasts. About 90% of the mixture is titanium, 6% is aluminum, and 4% is vanadium. The interstitial elements are tightly managed. Vanadium stabilizes the beta phase, which makes the metal more flexible and easier to shape. Aluminum increases strength and decreases density. Specifications from ASTM B265 and AMS 4911 say that the amount of oxygen, nitrogen, carbon, iron, and hydrogen must be kept within very strict limits. High levels of hydrogen (above 150 ppm) cause cracking and weakening, while high levels of oxygen make things stronger but less flexible. Reliable providers give mill test results that show exact elemental analysis and prove that the 6Al4V Titanium Plates meet these strict compositional standards.
Mechanical Properties and Performance Metrics
If a titanium plate can handle practical pressures, its mechanical performance tells us. When annealed, Ti-6Al-4V usually has a minimum tensile strength of 895 MPa, a yield strength of 828 MPa, and an elongation of about 10%. These values are good enough for aerospace and industry, but different heat treatments can change the properties to fit different needs. Testing the material's hardness, tensile strength, and wear longevity makes sure that its performance matches the needs of the design. Plates that will be used in places with repeated loads, like landing gear supports or machinery that spins, must have high resistance to fatigue, which can only be proven through strict testing methods outlined in AMS standards.
Microstructure Evaluation
The tiny structures inside Grade 5 titanium have a big effect on how long it lasts, how tough it is, and how long it can handle stress. If the microstructure is lamellar, equiaxed, or bimodal, it is determined by the rolling and heat treatment methods. For aerospace uses, lamellar structures are great because they have better fracture toughness and creep resistance, and equiaxed microstructures are better at resisting wear. Metallographic examination finds flaws like alpha-case, a tough, oxygen-rich layer that forms on the surface during high-temperature processing. To keep the part from breaking too soon, the alpha-case has to be taken off by controlled pickling or machining. Buyers should ask for microstructure studies and photomicrographs that show the uniformity of grain size and phase distribution.
Corrosion Resistance and Biocompatibility
One great thing about this metal is that it does not rust or corrode easily. This is because a solid, continuous oxide film forms on the surface on its own. This passive layer protects against corrosion from the air, chloride environments, and many harsh chemicals that are found in marine and chemical processing settings. The Extra Low Interstitial (ELI) version of Grade 5 is better for medical uses because it is more biocompatible and has higher fatigue strength. Following the guidelines set by ASTM F136 ensures that the material is safe for long-term use, with strict checks on the parts that go between cells to stop any bad biological reactions.
Common Comparison Points to Consider When Selecting 6Al4V Titanium Plates

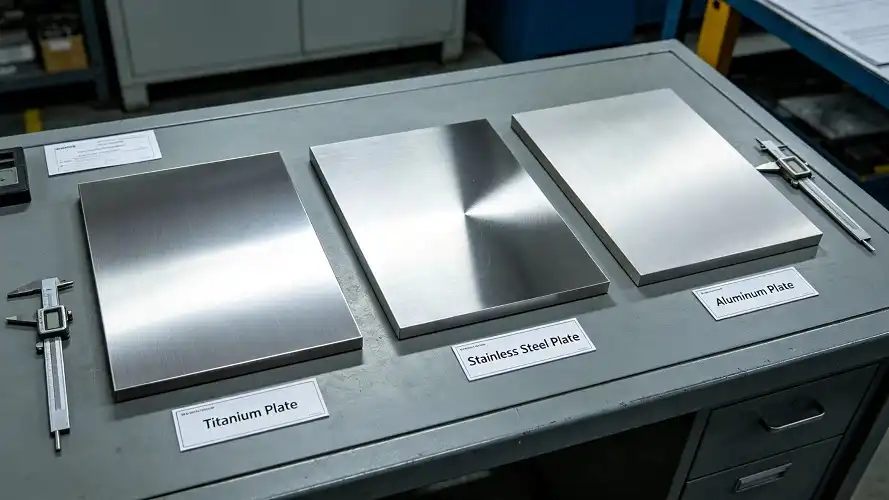

Comparing Titanium Grade 5 with Alternative Materials
Knowing how Ti-6Al-4V compares to 304 stainless steel and 6061 aluminium shows its worth. Although stainless steel is cheaper, its increased density makes aeronautical structures heavier and requires more fuel. While aluminium alloys are inexpensive and simple to work with, they are not stable at high temperatures or rust-resistant, which are necessary in tough environments. Grade 5 6Al4V Titanium Plate covers these gaps, making it stronger than steel at 60% the weight, more rust-resistant, and stable at 400°C. Titanium lasts longer, requires less maintenance, and operates better, making it a good investment.
Differentiating Between Titanium Grades
Different titanium grades are utilised for mechanical and environmental purposes. Commercially pure grades (Gr1, Gr2, Gr4) resist corrosion and form better than Grade 5, but are weaker. Mildly strong and simple to weld, Ti-3Al-2.5V is ideal for aeronautical tubing. Ti-5Al-2.5Sn excels in cold. Knowing these distinctions helps consumers pick job-appropriate materials. Commercially pure grades may be preferable for reducing acid equipment, whereas Grade 5 is better for aircraft structural parts due to its strength-to-weight ratio.
Plate Versus Sheet Formats
Dimensions affect how plates and sheets are created and how much they cost. Most plates are 4–80 mm thick, whereas sheets are thinner. Thick plates are excellent for pressure tanks, structural frames, and heavy-duty equipment parts because they can bear greater weight. Aircraft skin panels and medical instrument housings benefit from sheets' flexibility, shapeability, and lightness. Procurement teams must consider size tolerances, flatness, and surface polish to ensure the format fits with CNC machining, forming, or welding.
Step-by-Step Procedures to Verify 6Al4V Titanium Plate Quality Before Purchase
Review Supplier Credentials and Certifications
The first step in the verification process is to look at the qualifications and business certifications of the seller. Suppliers that are trustworthy have quality management certifications like ISO 9001 and follow AS9100 for aerospace uses or ISO 13485 for medical ones. Ask for copies of the approval certificates and audit reports that show they follow these standards. Suppliers who have been in the business for a long time, like those who have been around for more than 20 years, show that they are stable and have a mature process. Companies that are National High-Tech Enterprises or that have more than one idea and utility patent show that they are investing in research and development and quality control for 6Al4V Titanium Plate production.

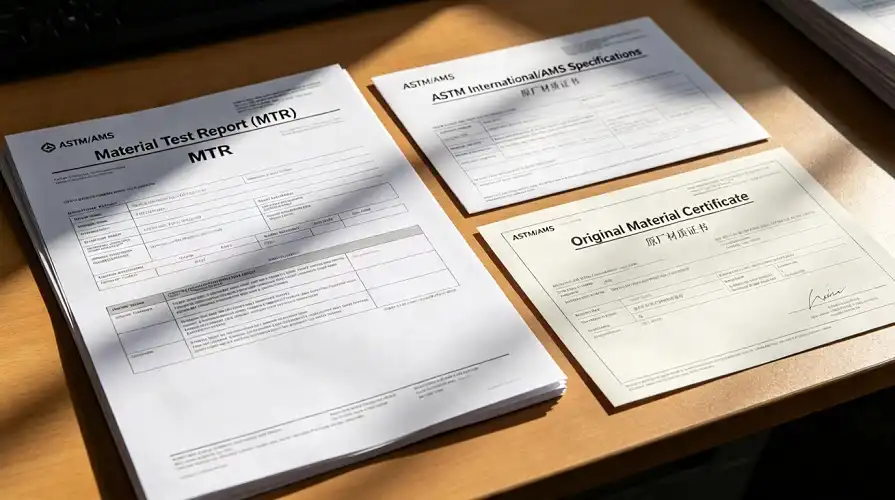

Scrutinize Material Certifications and Test Reports
Full material certifications, which are sometimes called mill test certificates or material test reports (MTR), should be sent with every package. These papers show where something came from by using heat numbers, chemical makeup analysis, mechanical test results, and statements that it meets ASTM B265, AMS 4911, or ASME SB265 standards. Make sure the MTR has all the necessary properties written down, such as the tensile strength, yield strength, elongation, and hardness. Compare the heat numbers to the marks on the plates that you can see. As much as possible, get third-party lab confirmation from approved testing facilities to make sure the lab is independent and there are no conflicts of interest.

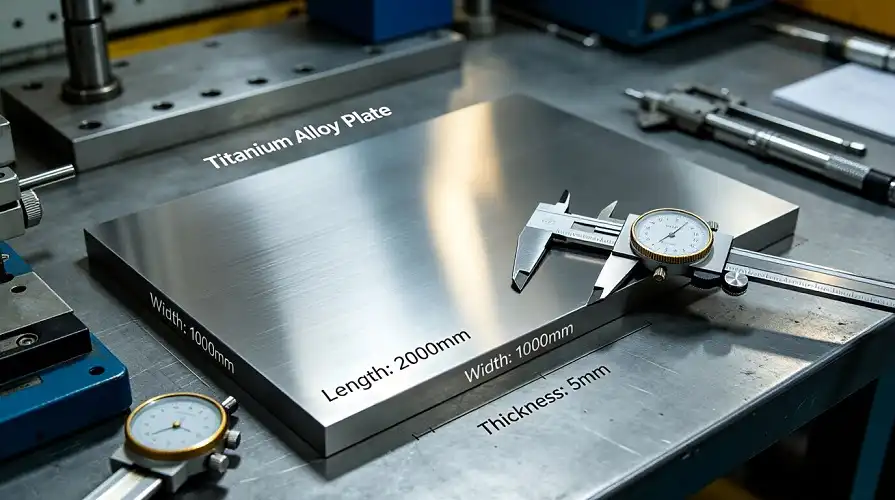

Conduct Physical and Dimensional Inspections
Inspections by sight and measurements show flaws on the surface, differences in measurements, and processing problems. Look at the surfaces for any cracks, pits, spots, or alpha-case leftovers that might weaken the structure. Check the thickness, width, and length against the given tolerances using calibrated measuring tools. As stated in ASTM B265, acceptable thickness tolerances are usually between ±0.25mm and ±2.0mm, but this can change based on the thickness and width of the plate. Flatness is very important for how well cutting works, especially in CNC processes where differences in the material make tool wear and scrap rates higher. To set quality standards, record findings with photos and measurement logs.

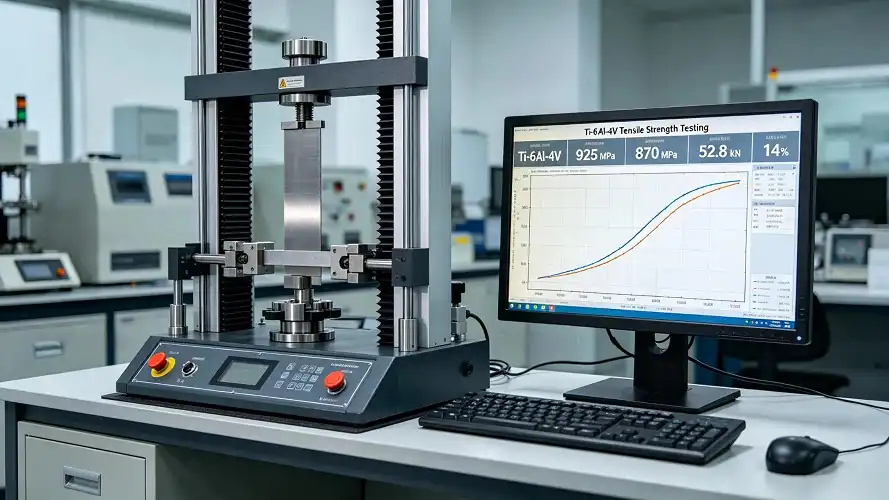

Request and Analyze Mechanical Testing Data
Mechanical testing proves that the material can handle the loads that are expected to be put on it. Tensile tests find out the final tensile strength, yield strength, and elongation, making sure that the material meets the minimum requirements set by the standard. Hardness tests, usually using the Rockwell or Brinell methods, is a quick way to see how well the heat treatment worked and how uniform the material was. For applications where fatigue is important, ask for high-cycle fatigue test data that shows the limits of endurance. Ultrasonic testing (UT) according to AMS 2631 finds holes, inclusions, or delaminations inside materials that cannot be seen from the outside. For aerospace-grade materials, these non-destructive tests are required, and buyers should make sure that approved plates come with UT results.
Obtain Physical Samples for Verification Testing
Before placing a large order, ask for representative samples that can be evaluated by a third party. Send samples to recognized third-party labs that specialize in titanium analysis to check the metal's chemical make-up, test its mechanical properties, and look at it under a metallographic microscope. Independent testing gets rid of the need to rely only on data given by the provider and finds problems early on. Samples also allow in-house fabrication tests to see how easy it is to machine, weld, and work with current processes. When building ties with new suppliers or getting materials for mission-critical uses where failure is not an option, this step is especially helpful.
Procurement Considerations and Best Practices for B2B Buyers
Evaluating Supplier Reliability and Support
Not only is product quality important when choosing a supplier, but so are service reliability, expert help, and the ability to handle logistics. Check out a vendor's track record by reading case studies, customer feedback, and industry references. Suppliers that work with universities and research institutions can do cutting edge research and development and use the latest working methods. Check out the return policies, guarantee policies, and customer service systems after the sale. Companies that keep large inventories of 6Al4V Titanium Plate, like those that keep around 3,000 tons of titanium on hand all year, show that they are financially stable and can meet urgent orders without having to wait for long lead times. Having technical support teams that can help with choosing materials, making things, and fixing problems is very helpful throughout the whole buying process.
Understanding Pricing Structures and Order Quantities
The price of Grade 5 titanium plates depends on their thickness, size, amount, how they need to be processed, and the state of the market. Get quotes from several providers and compare the cost per kilogram to the averages for your business to set price standards. Unit prices are affected by minimum order amounts, and buying in bulk usually gets you a discount. Check the minimum order quantity (MOQ) against the costs of keeping inventory and the project's due date to get the best cash flow. Make it clear if the price includes surface treatments like machining, polishing, or pickling, since these can have a big effect on the total landed cost. To keep the job on track, talk about payment terms, delivery dates, and penalties for late shipments.

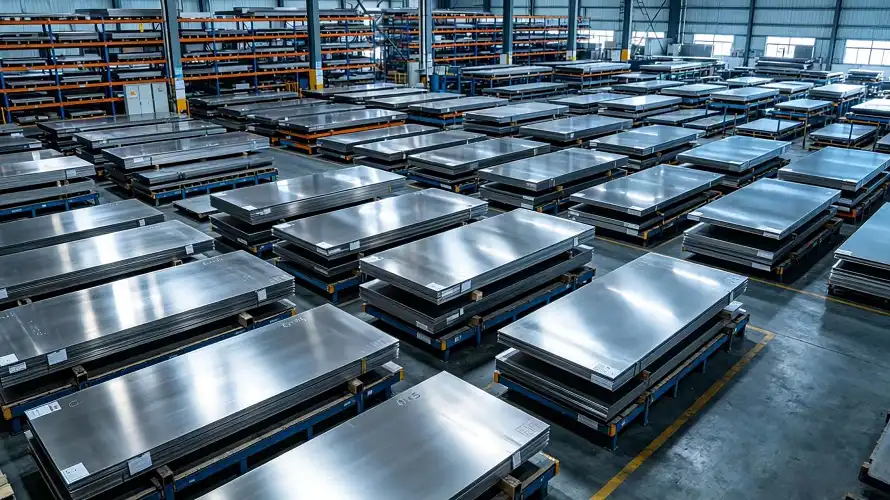

Managing Supply Chain Timelines and Inventory
Lead times for titanium plates depend on whether the material is in stock or needs to be made to order. Standard sizes in an annealed state can be shipped within days from reputable sources with large stockpiles. Custom thicknesses, lengths greater than 2,500mm, or special heat treatments may take several weeks. Compare the dates of purchase to the dates of the project, leaving extra time for testing, inspection, and possibly restocking. Setting up framework deals with reliable suppliers gives you special access during times of high demand and keeps prices stable. If you have regular, high-volume needs, you might want to look into just-in-time delivery plans to cut down on storage needs while keeping production going.
Real-World Cases and Applications Showcasing Quality Verification Impact
Aerospace Structural Components
Grade 5 titanium is used by aerospace companies to make bulkheads, firewalls, wing spars, and landing gear parts. Less weight directly affects how much fuel an airplane uses and how much it can carry. Tough quality control procedures stop material flaws that could cause failures in flight. One company that makes aerospace parts did a full inspection of all incoming materials, which included ultrasonic testing and metallographic examination. This found holes below the surface of a shipment of 6Al4V Titanium Plate that had passed visual inspection. Rejecting that batch stopped a disaster from happening and showed how important it is to check quality in more than one way, not just with supplier certifications.
Biomedical Implant Manufacturing
Companies that make hip implants, dental fixings, and craniofacial plates need ELI-grade Ti-6Al-4V that meets ASTM F136 biocompatibility standards. Strict quality controls make sure that implants have a modulus of flexibility that is very close to that of human bone. This lowers the stress shielding effects that cause implants to come free. A company that makes surgical implants set up a program to qualify suppliers. The program requires third-party proof of the interstitial element content and biocompatibility tests according to ISO 10993. Through this program, a supplier was fired whose material, even though it was approved, showed high levels of hydrogen during independent testing. This stopped any problems that could have happened to patients and made sure that the supplier was following the rules.
Offshore Oil and Gas Equipment
When used offshore, subsea equipment like risers and heat exchangers is constantly exposed to high pressures, saltwater, and hydrogen sulfide. Because it does not corrode or pit in crevices, grade 5 titanium is perfect for these uses, where broken equipment can cause environmental disasters and huge financial losses. Before accepting shipments of materials, an offshore equipment manufacturer set up a quality verification protocol that required corrosion testing in environments that were made to look like sour gas environments. This proactive method found batches of materials that did not fight corrosion very well, so they could be switched out before they were used. This stopped expensive failures in the field that would have stopped production.
Conclusion
To check the quality of Ti-6Al-4V titanium plates, you need to look at their certifications, chemical makeup, mechanical features, and the supplier's skills in a planned way. Teams in charge of buying things have to find a balance between technical requirements, budgets, and supply dates, all while putting tracking and compliance first. Putting money into thorough verification of 6Al4V Titanium Plate lowers risks that are much bigger than the costs of the materials themselves. This protects project timelines, regulatory standing, and operational safety. Buyers who are good at what they do build long-term relationships with suppliers who provide consistent quality, technical expertise, and quick support. By following the steps in this guide for verifying materials, business-to-business buyers can get materials that meet strict requirements and work well for a long time in medical, industrial, marine, and military settings.
FAQ
1. What certifications should I look for when purchasing Grade 5 titanium plates?
Check that sources give you material test results that show they meet ASTM B265 for industry uses, AMS 4911 for aerospace parts, or ASTM F136 for medical implants. It is necessary to have ISO 9001 quality management certification. For aerospace suppliers, AS9100 certification is needed, and for medical device manufacturers, ISO 13485 certification is needed. Third-party testing laboratory accreditations show that they can do independent checks.
2. How can I tell if titanium material is fake or not up to par?
Ask for full mill test certificates that have heat numbers that can be checked and match the markings on the plates. Independent chemical analysis and mechanical testing should be done by third-party laboratories that have been approved by the government. Check the surface for the right finishing, the correctness of the measurements, and the uniformity of the microstructure. Check the supplier's credentials, building certifications, and name in the industry by looking at audit records and recommendations.
3. When is heat treatment necessary for Ti-6Al-4V plates?
When specific mechanical properties are needed that cannot be reached under normal annealing conditions, heat treatment is needed. Solution treatment and aging (STA) make parts that are under a lot of stress stronger, and stress relief annealing makes them more stable in their dimensions after they have been machined. For aerospace uses, certain AMS-specified heat treatment processes are often needed to improve wear resistance and fracture toughness. Controlled annealing is often used to make medical ELI-grade materials more biocompatible and stronger over time.

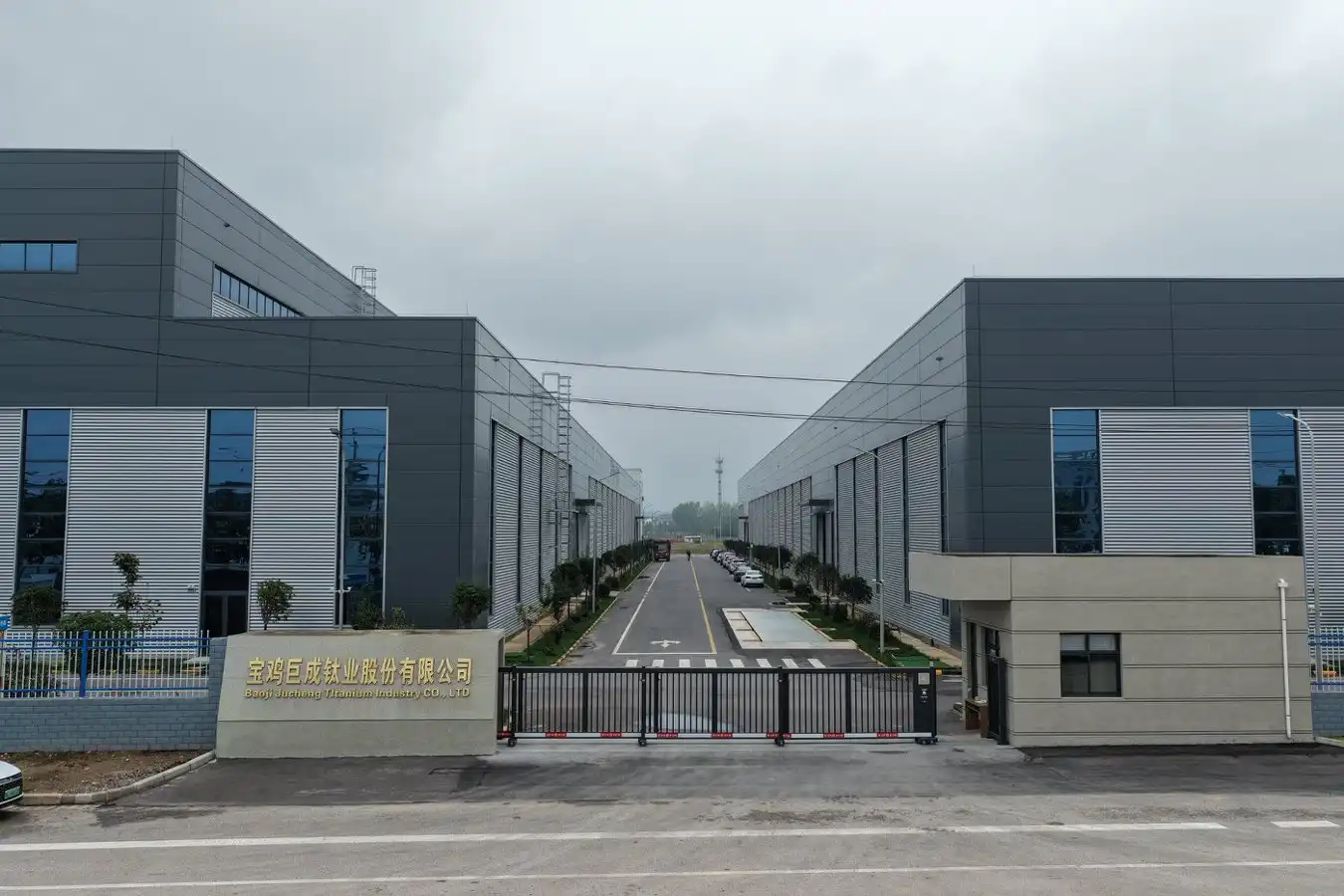

Partner with Jucheng Titanium for Certified 6Al4V Titanium Plate Supply
Jucheng Titanium has been processing, manufacturing, and distributing titanium materials around the world for more than 20 years. They have strict quality standards and work with clients in the aerospace, medical, chemical, and industrial sectors. We are a National High-Tech Enterprise and a specialized "little giant" company with 4 idea patents and 41 utility model patents. We have strict quality control throughout the whole production process, from hot rolling and annealing to pickling and finishing the surface. Grade 5 6Al4V Titanium Plates can be quickly delivered in thicknesses from 4mm to 80mm, widths up to 2,500mm, and special lengths that meet ASTM B265, AMS 4911, and ASME SB265 standards. We keep a large quantity of about 3,000 tons of these plates in stock. Our expert team can help you with everything from choosing the right materials to making sure the finished product is safe and working properly. This includes aerospace-grade materials that can be fully tracked, ELI variants for medical uses, and custom manufacturing for chemical equipment. As a reliable manufacturer ready to help you succeed, please email our procurement experts at s4@juchengti.com to talk about your project needs, ask for samples, or get reasonable prices.
