How to Choose 4mm Titanium Sheet for Industrial Applications
Selecting the right 4mm titanium sheet is critical for ensuring performance, durability, and cost-efficiency in demanding industrial applications. When specifying titanium sheet materials for aerospace components, chemical processing equipment, or medical devices, understanding the interplay between grade selection, certification requirements, and supplier capabilities determines project success. A 4mm thickness offers an optimal balance between structural integrity and workability across multiple industries, making it one of the most versatile formats available. This guide walks you through the essential technical specifications, material comparisons, procurement strategies, and decision criteria necessary to secure the best material for your unique operational requirements.
Understanding the Essential Properties of 4mm Titanium Sheet
When 4mm titanium sheet is 4mm thick, its main strength comes from its well-tuned mechanical qualities that meet those needs. Different grades of titanium have different tensile strengths. Grade 2 is sold as pure, and Grade 5 is alloyed, and its tensile strength is over 900 MPa. The values for yield strength and elongation change based on the grade and state of the heat treatment.

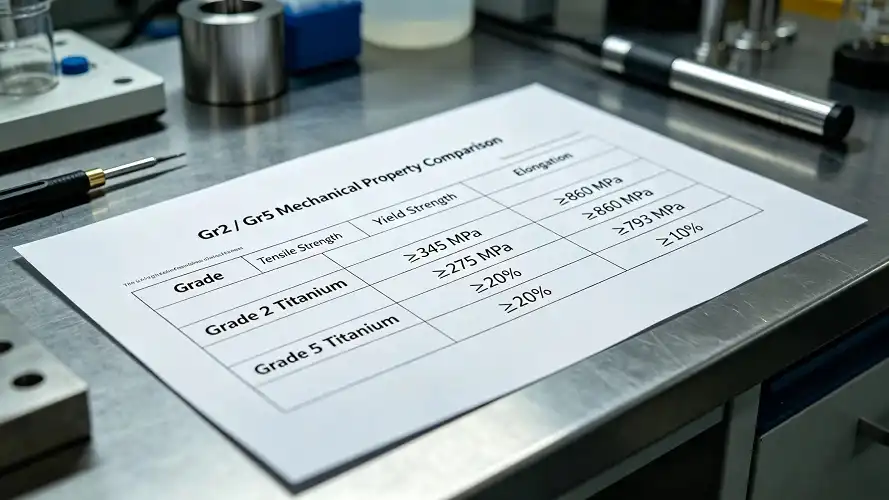

Mechanical Performance Across Titanium Grades
There are grades of widely pure titanium that are easy to shape and don't rust. This makes them great for use in boats, heat exchanges, and chemistry labs. Titanium grade 2 is moderately strong and very easy to weld, so it can be used in fabrication processes without any major issues when it comes to cold working. Alloyed types, like Gr5 (Ti-6Al-4V), work better and are stronger at high temps. This is what aircraft and defense companies need for parts that will be used in high-stress situations. Grade 5 is 4mm thick and stays rigid. With the right tools, it can be precisely machined and shaped.

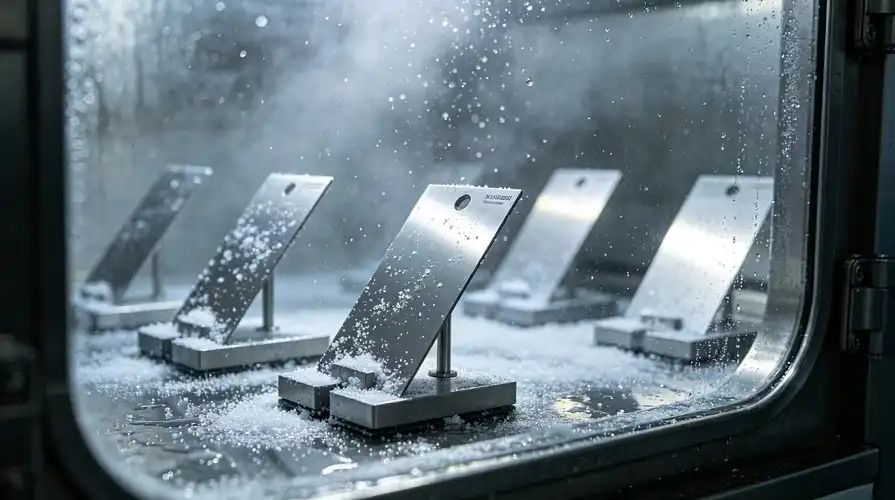

Corrosion Resistance and Thermal Behavior
When titanium comes in contact with air, it forms titanium dioxide to protect itself. Chlorides, acids, and seawater can't damage this layer at all. Even if the surface is broken, this passive oxide shield grows back quickly. Because of this, it works well for a long time in harsh chemical conditions. Titanium still doesn't transfer heat as well as copper or metal. This works well for uses that need to keep heat in, but it means that the design of the heat exchanger needs to be carefully thought out. People can better match the properties of materials they buy to the tasks they will be used for when they know these properties. This keeps things in better shape and lowers the cost of maintenance.

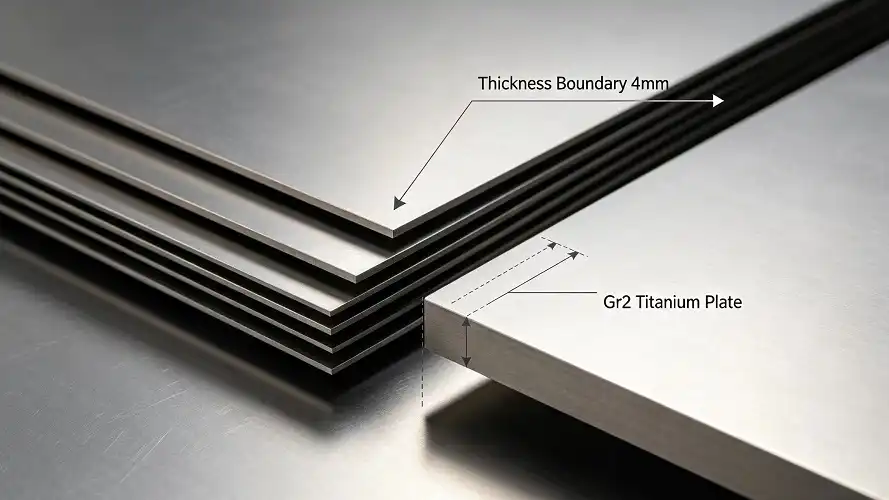

Dimensional Standards and Tolerances
ASTM B265, ASTM F67, AMS 4911, and ASME SB265 all say that our 4mm titanium sheets are up to par. This makes sure the quality stays the same and that the materials can be found. Longer lengths are possible up to 10,000mm, and widths range from 950mm to 2500mm. But it's easy to get other sizes that work with your project plan. There is no difference in the microstructure or surface finish of hot-rolled steel that has been annealed, leveled, or pickled. This meets strict standards for medical and aerospace use.

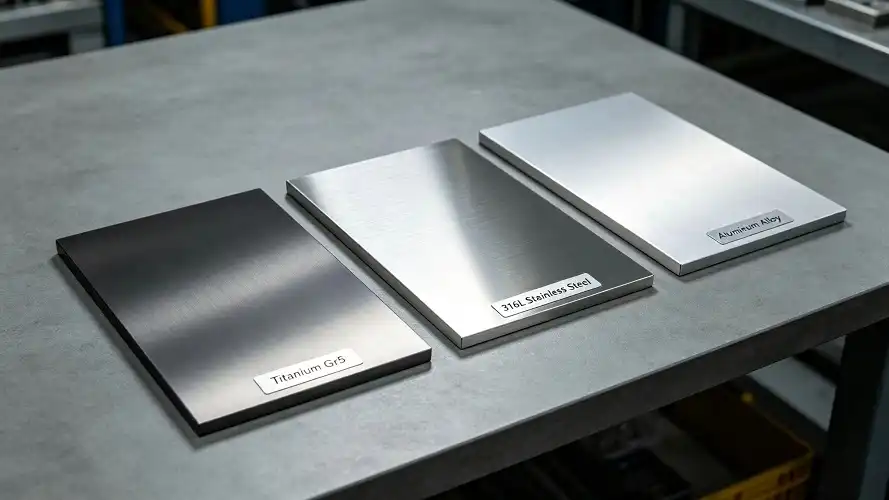

Comparing 4mm Titanium Sheet with Alternative Materials
You need to compare 4mm titanium sheets to other metals, such as high-nickel superalloys, stainless steel, and aluminum alloys, in order to pick the right one. Based on the task at hand, each type of material has its own advantages, such as lowering weight, protecting against corrosion, or protecting against costs.
Titanium Versus Stainless Steel
For jobs that need to stay within a budget, grades of stainless steel like 316L are a good choice because they don't rust and don't cost as much. Titanium, on the other hand, is about 45% lighter than stainless steel but just as strong, if not stronger than stainless steel. In space, where every kilogram changes how much fuel is used and how much weight can be carried, this ratio of strength to weight is very important. Titanium is also better than stainless steel in places where there is a lot of salt. This means that marine and chemical processing equipment doesn't have to worry about rust pits.
Titanium Versus Aluminum Alloys
Titanium alloys are stronger than aluminum alloys, but aluminum alloys are not as strong or good at going through high temperatures. 4mm titanium sheet is the best choice when temperatures are above 150°C or when mechanical loads need more strength. Galvanic rusting can happen when aluminum is mixed with other metals. This makes it less useful in systems that are already difficult. On the other hand, titanium is very good, which makes these risks smaller.
Thickness Considerations: 3mm to 5mm Range
It makes a big difference in both cost and effectiveness to change the width by one or two millimeters. A 3mm sheet is less expensive and lighter, but it might not be as hard over long distances if it is not supported. A 5mm width, on the other hand, makes the structure more stable, but it also makes it larger and takes longer to work with. The 4mm specification is a good middle ground because it's stiff enough for most industry frameworks but not too stiff to cut or shape.
Procurement Considerations for Buying 4mm Titanium Sheet
It's important to have a clear review of suppliers, know how long you'll have to wait, and do a full cost analysis that looks at all landed costs instead of just unit price. Bulk sales of standard sizes have shorter wait times and lower unit costs because production is more efficient. Depending on the supplier's capacity and the availability of materials, orders of 4mm titanium sheet that need specific widths, lengths, or surface treatments can make it take up to twelve weeks longer to buy something. It is cheaper to make changes when clear standards are set early on in the buying process. This also makes sure that the new product works with the way things are made now.
Bulk Orders Versus Custom Fabrication
Bulk sales of standard sizes have shorter wait times and lower unit costs because production is more efficient. Custom orders requiring specific widths, lengths, or surface treatments extend procurement cycles. Establishing clear specifications early in the purchasing process prevents costly revisions and ensures compatibility with existing fabrication workflows.
Pricing Benchmarks and Total Cost Analysis
Titanium costs change based on how much is available around the world, what the metal is made of, and how hard it is to work with. Some of the time, Grade 2 stuff costs 30–40% less than Grade 5 stuff. Adding chemical milling or polishing to the surface, on the other hand, makes it more expensive. There are other costs in the total landing cost besides the cost of the goods. It also includes costs like freight, insurance, and import taxes that come with moving the goods. It's easier to keep things in stock, and wait times are shorter when you work with sellers who do this.
Supplier Certification and Quality Assurance

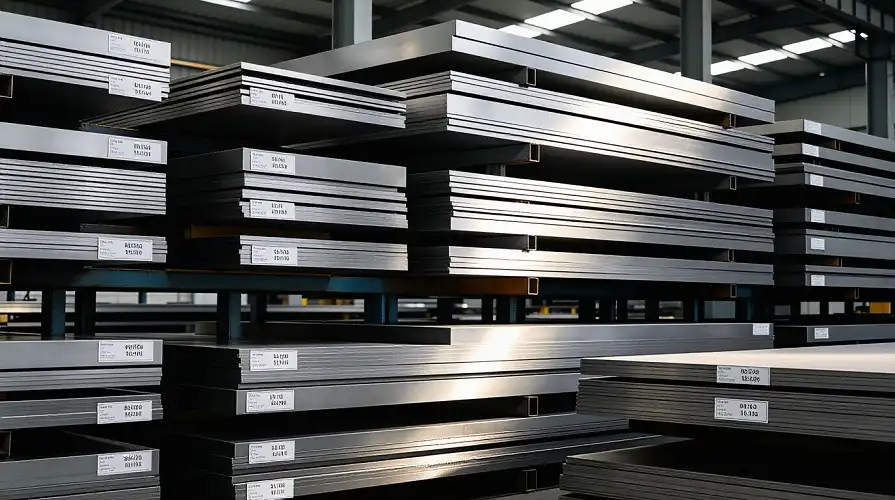

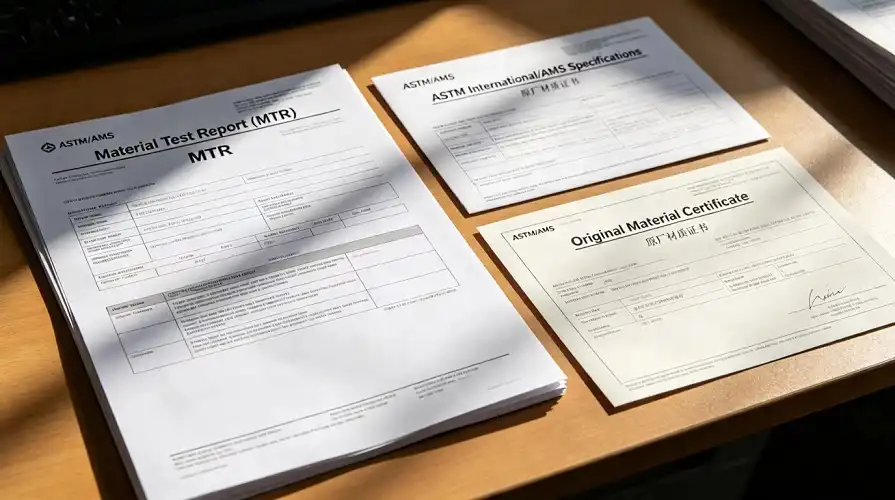

Suppliers you can trust give you Mill Test Reports (MTR) that follow EN 10204 3.1 standards and list the material's make-up, mechanical properties, and heat treatment history. Certs like ISO 9001, AS9100 for aircraft, or ISO 13485 for medical devices show that a company has a strong quality control system. More than 3,000 tons of titanium are stored in our 120,000-square-meter building in Baoji. Working with the Northwest Institute for Nonferrous Metal Research and our own research and development team, we can finish important projects quickly and make changes that customers ask for.
Practical Guidelines on Handling and Using 4mm Titanium Sheets
It's best to handle and make 4mm titanium sheets the right way so that you get the most out of them and don't do anything wrong that could damage the structure or finish. Proper handling and fabrication techniques maximize material utilization while preventing defects that compromise structural integrity or surface quality.

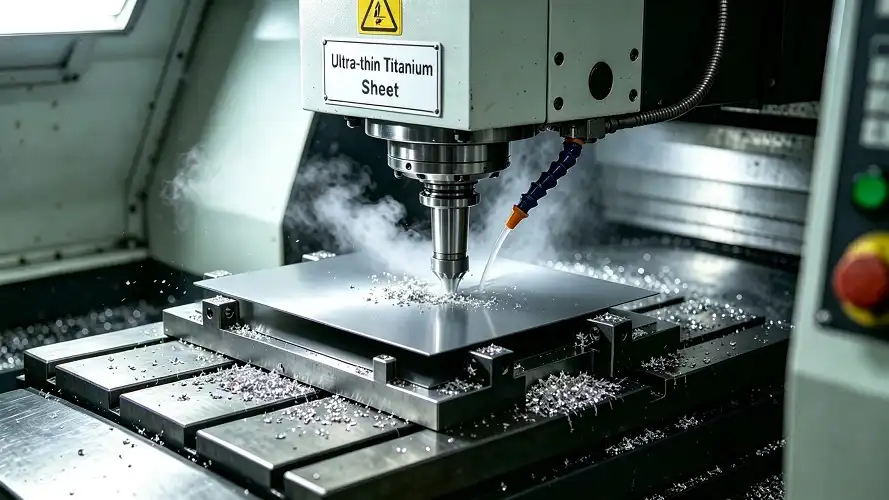

Cutting and Machining Best Practices

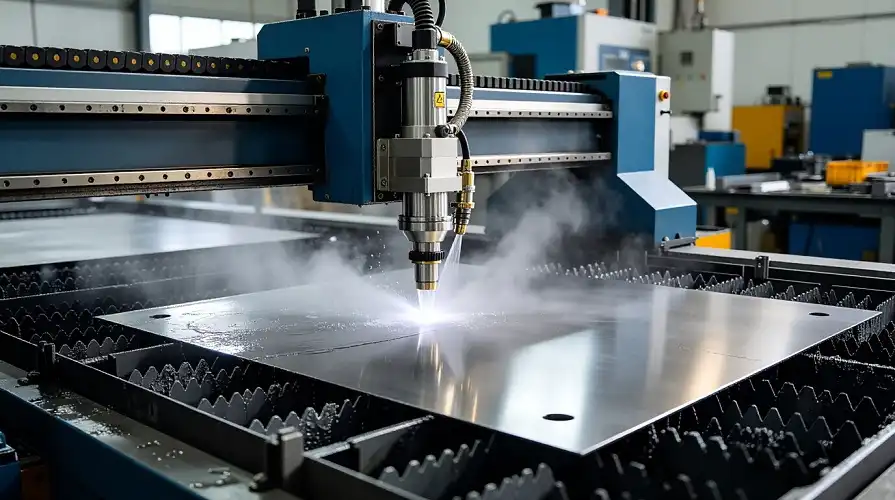

With waterjet cutting, you can get to limits of ±0.2mm without making areas that are hot. This means that the material next to the cut edges will not change in any way. Fiber laser cutting has more accurate measurements (±0.05mm), but it needs a shield of inert gas to keep the material from oxidizing and turning brown. Titanium needs to be cut with carbide or polished tools that are very sharp and a lot of cooling to get rid of the heat and keep the work from getting stiff. When cutting instead of grinding, the speed should be slowed down by 40 to 50 percent so that tools don't wear out and the surface doesn't get damaged.

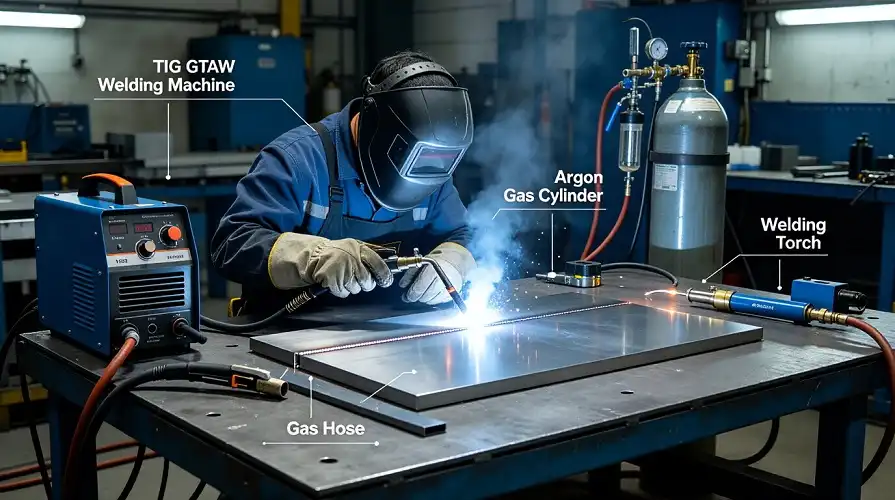

Welding Techniques for Titanium Sheets
Welding with TIG (GTAW) is still the best way to join 4mm titanium sheets. For both the front shielding gas and the trailing gas covering, it uses argon that is 99.999% pure. Protection from back gas keeps rust from building up on the weld root, which would weaken the joint. Acetone can be used to get rid of grease, and wire brushing the joint before properly preparing it gets rid of the things that cause porosity. It is not usually necessary to pre-heat economically pure grades. However, limited interpass temperatures help with Grade 5 to keep the microstructure from changing too much.
Maintenance and Durability in Harsh Environments
Titanium's inactive oxide layer automatically renews itself in places with lots of oxygen, so all that needs to be done is clean the surface of it on a regular basis. Extra protective coatings might be needed to stop reactive corrosion in places with little oxygen or no airflow. Regularly checking for mechanical damage, especially in places where there is a lot of shaking, can help find places where stress builds up before cracks appear. In the coking (90% market share) and hydrometallurgy (70% market share) industries, our titanium equipment has worked well in chemical labs, heat exchangers, and air coolers. This shows that the material can last in tough conditions.
How to Make the Final Decision: A Criteria-Based Approach
It is important to choose materials that meet performance needs, budget constraints, and delivery dates, while also taking into account the application's needs and the supplier's skills. Successful selection of 4mm titanium sheet integrates application-specific requirements with technical support, customization flexibility, and supply chain reliability.
Application-Driven Grade Selection
Grade 5 metal is mostly used in aircraft and the military because it has a high strength-to-weight ratio and can handle wear. Grade 2 or Grade 7 (with palladium added for better acid resistance) are the best choices because they won't rust and are good for use with chemicals. For medical equipment, companies need biocompatible grades like Gr2 or Gr5 and records that show how the materials were made and how clean they are. These records must meet FDA and foreign legal standards.
Evaluating Supplier Capabilities Beyond Price
It's not enough to just look at prices when picking a source. It also has to do with technical support, being able to make changes, and how reliable the supply chain is. Our four invention patents and 41 utility model patents give us more than 20 years of experience in the titanium business. This means we can offer rapid prototyping and custom solutions that you can't get from a commodity distributor. The company has 3,000 tons of stock and more than 500 sets of titanium tools that are being made every year. This means that they can handle both big projects and quick orders for small amounts.
Negotiation and Partnership Development
It's better to build long-term relationships with suppliers based on open communication and mutual understanding than to buy things one time. Cutting down on the risks of procurement while getting better prices and earlier production slots can be done by setting up quality agreements, approved supplier status, and collaborative forecasting. Before you place a bulk order, you should ask for sample materials to be qualified tested to make sure they meet your own standards and that the supplier is telling you the truth about the material's properties and surface quality.
Conclusion
To choose the best 4mm titanium sheet, you need to think about the material's qualities, the job's needs, and the supplier's skills, all while keeping your budget and due dates in mind. Whether you choose a commercially pure or alloyed grade affects how well it works mechanically and how well it resists rust. Standards and certificates for dimensions make sure that rules are followed and quality is always the same. Titanium is more expensive than some other materials, but in tough situations, its weight and durability make it worth it. A good procurement strategy doesn't just look at the unit price; it also looks at the total cost, how reliable the supplier is, and how good their technical support is.
FAQ
1. What cutting tolerance can be achieved for 4mm titanium sheet?
With waterjet cutting, you can get standard tolerances of ±0.2mm without any thermal warping, which is good for most business needs. With fiber laser cutting, you can get as precise as ±0.05mm, but you have to be very careful with the process in areas that will get hot so that the properties of the 4mm titanium sheet don't change near the cut edges.
2. Should I choose Grade 2 or Grade 5 for 4mm thickness?
Acid tanks and heat exchangers that need to be rust-proof and easy to shape should be made of Grade 2. Grade 5 (Ti-6Al-4V) is better for making airplane structure parts because it is stronger, but it is harder to bend when it is cold. You need to heat it up or use special tools to make it.
3. How can I verify material authenticity?
Density studies show that titanium loses about 45% of its weight when compared to stainless steel. It is easy to see that steel sparks are yellow-orange, while titanium sparks are clear white. But Mill Test Reports (MTR) that follow EN 10204 3.1 are still the usual way to check what a product is made of and how strong it is.
4. What surface finishes are available?

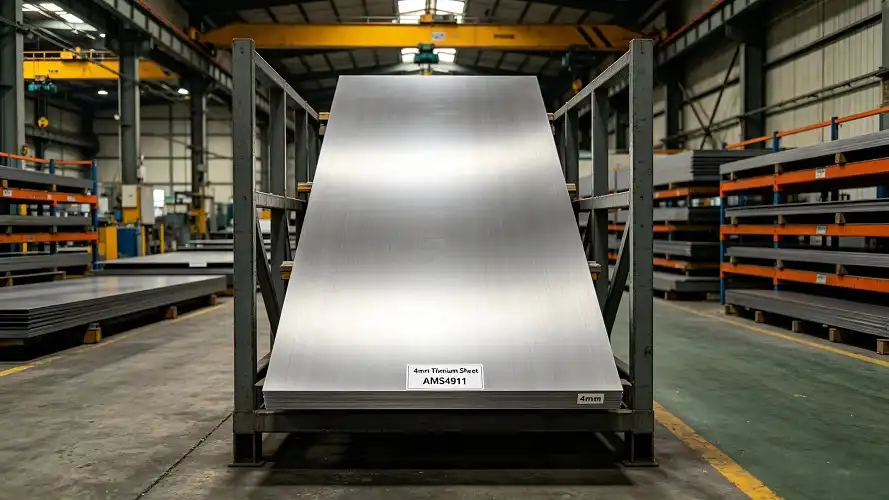

If you anneal and pickle the metal, it gets a matte gray, scale-free surface that can be used in most industrial settings. It is possible to make medical equipment and buildings look better with polished or sandblasted finishes, but the materials cost more because of how complicated the finish is.

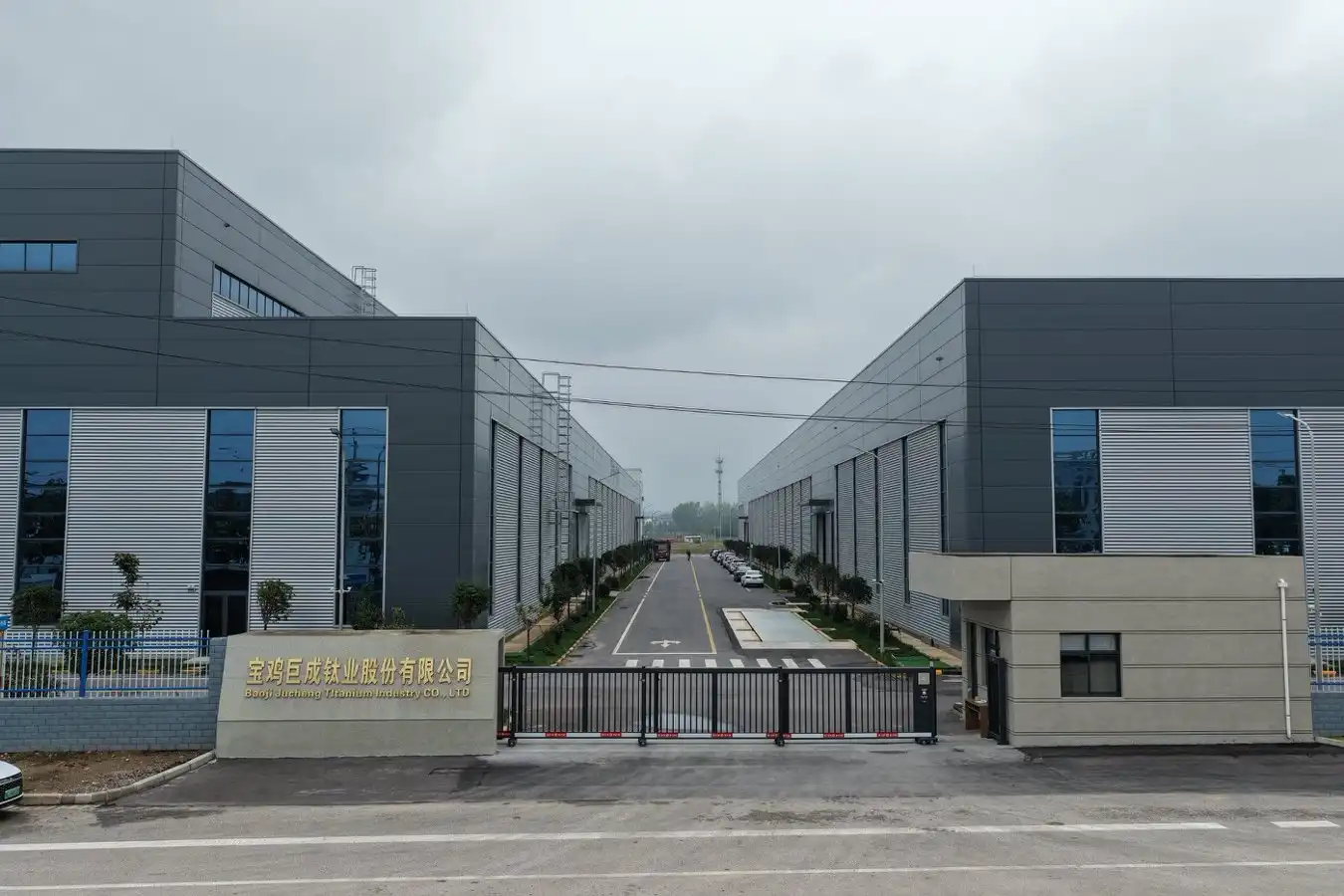

Partner with Jucheng Titanium for Reliable 4mm Titanium Sheet Supply
Navigating 4mm titanium sheet procurement complexities becomes straightforward when partnering with an experienced supplier committed to quality and customer success. Baoji Jucheng Titanium Industry Co., Ltd. has served global industries for over 20 years from our base in China's Titanium Valley, maintaining 3,000 tons of inventory across multiple grades including Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, and Gr12. Our hot-rolled sheets in thicknesses from 4mm to 80mm, with widths up to 2500mm and lengths extending to 10,000mm, and ship rapidly to meet urgent project timelines. Certified to ASTM B265, ASTM F67, AMS 4911, and ASME SB265 standards, our materials undergo rigorous quality control through our dedicated inspection team. As a national-level "little giant" enterprise producing over 500 titanium equipment sets annually, we combine manufacturing scale with customization flexibility unavailable from standard distributors. Contact our team at s4@juchengti.com to discuss your needs, request technical documentation, or secure competitive quotations for your next project.
References
1. Donachie, M. J. (2000). Titanium: A Technical Guide (2nd ed.). ASM International.
2. Leyens, C., & Peters, M. (Eds.). (2003). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH.
3. ASTM International. (2020). ASTM B265-20a: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International.
4. Boyer, R., Welsch, G., & Collings, E. W. (Eds.). (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
5. Schutz, R. W., & Watkins, H. B. (1998). Recent developments in titanium alloy application in the energy industry. Materials Science and Engineering: A, 243(1-2), 305-315.
6. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
